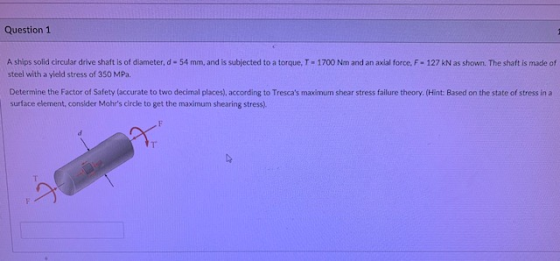

Question 1 A ships solid circular drive shaft is of diameter, d-54 mm,...
A ships solid circular drive shaft... A ships solid circular drive shaft is of diameter, d...
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
Question 1 0/1 pts A ships solid circular drive shaft is of diameter, d = 59...
Question 1 0/1 pts A ships solid circular drive shaft is of diameter, d = 59 mm, and is subjected to a torque, T = 1,959 Nm and an axial force, F = 191 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is to be subjected to an axial load (P-30 kN), a moment (M-200 N-m), and a torque (T-300 N-m). Assume the yield stress for the steel is (280 MPa), the Poisson's ratio is (v= 0.29), and the safety factor is (1-1). Calculate the margin of safety using the following failure theories. a.) Rankine Criteria (Maximum Principal Stress) b.) Tresca Criteria (Maximum Shear Stress) c.) Saint...
A solid shaft with an external diameter of D = 106 mm is subjected simultaneously to...
A solid shaft with an external diameter of D = 106 mm is subjected simultaneously to an axial load P = 80 kN, a shear force V = 18 kN and a torque of T = 6 kN-m. [L = 0.65 m) What is the largest normal stress in the shaft at point H. OOO O 33.3 MPa O 29.3 MPa O 41.6 MPa O 9.1 MPa 55 MPa What is the largest shear stress on the surface of the...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to car...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to carry a tensile load. The engineer has proposed a circular bar with cross-section having a radius of 2X mm. It carries an axial tensile load of İY0 kN. By using equation; i) Calculate the values of principal stresses at the critical area of the bar....
A solid steel bar of circular cross section has diameter d = 40 mm, length L...
A solid steel bar of circular cross section has diameter d = 40 mm, length L = 1.3 m and shear modulus of elasticity G = 80 GPa. The bar is subjected to torques T acting at the ends. If the torques have magnitude T = 340 Nm, what is the maximum shear stress in the bar? What is the angle of twist between the ends? If the allowable shear stress is 42 MPa and the allowable angle of twist...
Part A The internal loadings at a critical section along the steel drive shaft of a...
Part A The internal loadings at a critical section along the steel drive shaft of a ship are calculated to be a torque of 3.45 kNm , a bending moment of 2.25 kNm, and an axial thrust of 12.5 KN. If the yield points for tension and shear are oy= 700 MPa and my = 350 MPa, respectively, determine the required diameter of the shaft using the maximum-shear-stress theory. (Figure 1) Express your answer using three significant figures and include...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate...
A hollow circular steel shaft has a 100-mm outside diameter and a 75-mm inside diameter. Calculate the allowable torque that can be transmitted if the allowable shear stress is 62 MPa. When the allowable torque is applied, calculate the shear stress at the inner surface of the shaft.
A ships solid circular drive shaft...
A ships solid circular drive shaft is of diameter, d 53 mm, and is subjected to a torque, T= 1512 Nm and an axial force, F-134 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider Mohr's circle...
Question 1 0/1 pts A ships solid circular drive shaft is of diameter, d = 59 mm, and is subjected to a torque, T = 1,959 Nm and an axial force, F = 191 kN as shown. The shaft is made of steel with a yield stress of 350 MPa. Determine the Factor of Safety (accurate to two decimal places), according to Tresca's maximum shear stress failure theory. (Hint: Based on the state of stress in a surface element, consider...
A low carbon steel shaft is designed to have a diameter of 30 mm. It is to be subjected to an axial load (P-30 kN), a moment (M-200 N-m), and a torque (T-300 N-m). Assume the yield stress for the steel is (280 MPa), the Poisson's ratio is (v= 0.29), and the safety factor is (1-1). Calculate the margin of safety using the following failure theories. a.) Rankine Criteria (Maximum Principal Stress) b.) Tresca Criteria (Maximum Shear Stress) c.) Saint...
A solid shaft with an external diameter of D = 106 mm is subjected simultaneously to an axial load P = 80 kN, a shear force V = 18 kN and a torque of T = 6 kN-m. [L = 0.65 m) What is the largest normal stress in the shaft at point H. OOO O 33.3 MPa O 29.3 MPa O 41.6 MPa O 9.1 MPa 55 MPa What is the largest shear stress on the surface of the...
Question A-36 steel pipe with an outer diameter of 100 mm and an inner diameter of 80 mm subjected to loadings shown in Figure 1. The pipe is rigidly fixed at B and P - 150 kN. Given the yield stress, Oy -250 MPa and factor of safety, F.S. - 1.5 is used against yielding on this entire pipe. (a) For the stress state at the surface, construct the Mohr circle and determine: (1) the total stresses at surface of...
(50 Marks) a) As part of the product development process for go-kart drive shaft, the engineer has instrumented a critical area of the shaft with a solid bar. A drive shaft bar is designed to carry a tensile load. The engineer has proposed a circular bar with cross-section having a radius of 2X mm. It carries an axial tensile load of İY0 kN. By using equation; i) Calculate the values of principal stresses at the critical area of the bar....
Part A The internal loadings at a critical section along the steel drive shaft of a ship are calculated to be a torque of 3.45 kNm , a bending moment of 2.25 kNm, and an axial thrust of 12.5 KN. If the yield points for tension and shear are oy= 700 MPa and my = 350 MPa, respectively, determine the required diameter of the shaft using the maximum-shear-stress theory. (Figure 1) Express your answer using three significant figures and include...
Question 1: A rotating shaft with a diameter of 30 mm is made of 1018 cold-rolled steel. The stress concentration factor is 2.366, and the shear stress concentration factor is 1.75 respectively. The notch sensitivity is 0.78 and for shear it's 0.96 Estimate the factor of safety guarding against fatigue failure using modified-Goodman and Soder- berg for each of the following loading conditions: a) The shaft is subjected to a completely reversed torque of 120 N.m in phase with a...
