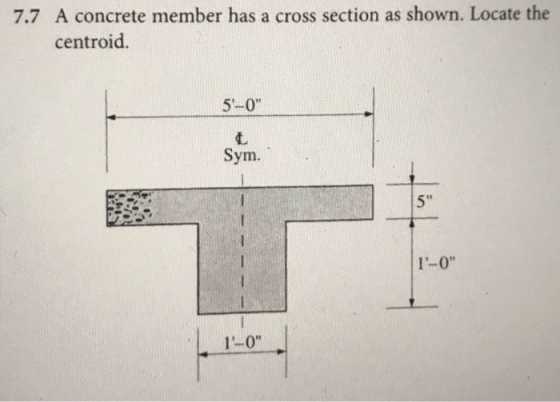

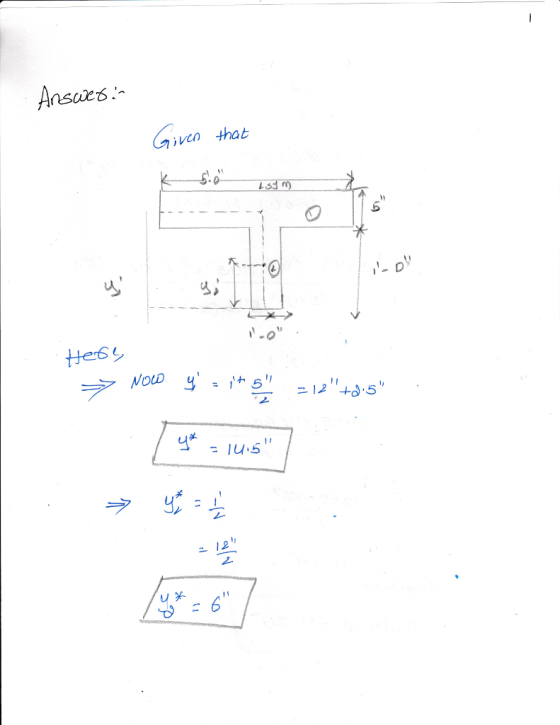

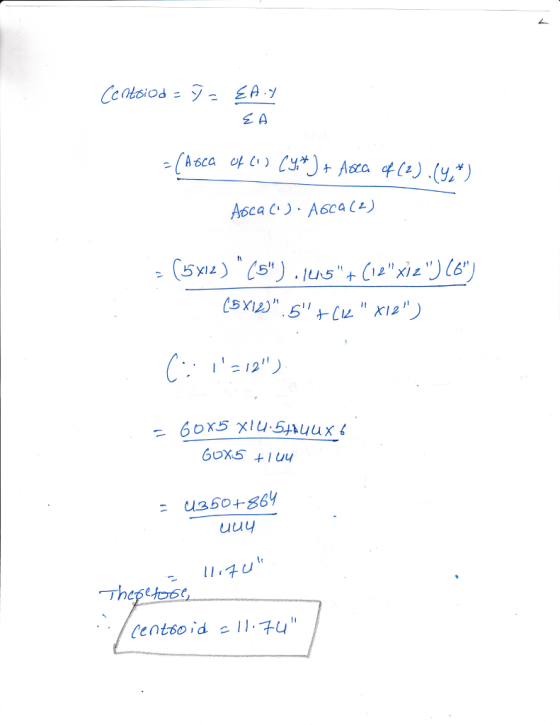

7.7 A concrete member has a cross section as shown. Locate the centroid. 5'-0" Sym. 5"...
i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X...
i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X 329 W530 X 72 X DDORI EM 721
A concrete beam is strengthened using two steel plates as shown in the cross section of...
A concrete beam is strengthened using two steel plates as shown in the cross section of the member. The beam has simple supports and an overhang and is subjected to a uniform load as shown. Assume that Ec=25 GPa and Es=200 GPa. 1. Determine the maximum moment carried in the member. 2. Determine the modular ratio, n. 3. Determine the centroid of the transformed section 4. Determine the maximums stresses in the concrete and the steel. 2 kN/m A- B...
Locate the centroid y for the beam's cross-sectional area. Question 5 5 pts Locate the centroid...
Locate the centroid y for the beam's cross-sectional
area.
Question 5 5 pts Locate the centroid y for the beam's cross-sectional area. 120 mm 240 mm 240 mm 240 mm 120 mm 200 218 235 226 249
Locate the centroid of the shown cross-section, calculate moment of inertia about x and y axes....
Locate the centroid of the shown cross-section, calculate moment of inertia about x and y axes. 250 38 100 m kum ---75 mm-- --75 mm 38 150 50 mm SO mm - 75 mm-+-75 mm- 25 mm 100 mm 4 in 3 in.- -
Locate the centroid y of the cross section and determine the moment of inertia of the...
Locate the centroid y of the cross section and determine the moment of inertia of the section about the x' axis. 0.4 m 0.05 m 0.3 m- 0.2 m 0.2 m 0.2 m 0.2 mm
solve for b 7.10 Locate the centroid of the area shown. In part (b), note the...
solve for b
7.10 Locate the centroid of the area shown. In part (b), note the sym- bol signifying that the area is symmetric about the centerline. PROBLEM 7.12 30 mm Sym. x bar 15 mm W4 X 13 50 mm
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section...
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section is a steel section 6 inches wide by 8 inches deep. The dimensions of the member are shown below in the table. The cross-section is loaded in bending by a moment about the zz-axis. The allowable bending stress of the cross-section is 36 (ksi). Determine: a) the elastic centroid of the cross-section. b) the yield moment. c) the plastic centroid of the cross-section d)...
The cross-section of a beam is shown below. The top rectanular piece of the cross-section is...
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
Hing PROBLEMS Determine the positon of the centroid (x,.5) in the T-beam's cross-section shown 50 mm50...
Hing PROBLEMS Determine the positon of the centroid (x,.5) in the T-beam's cross-section shown 50 mm50 mm 300 mm 100 mm 200 mm PROBLEM 6 For the T-beam shown in problem 5, determine the moment of inertia of the cross section about the axis x' passing through the centroid.
The gray area represents the cross-section of a concrete beam with a trapezoidal opening. The section...
The gray area represents the cross-section of a concrete beam with a trapezoidal opening. The section is symmetric about the vertical centerline. 6.3 in 06.3 in 5 in 15.6 in €6.4 in €6.4 in We wish to find the vertical distance from the base of the cross-section to its centroid in inches. in If we make a beam with this cross-section, determine its weight per foot into the page) in lb/ft, assuming the unit weight of concrete is 150 lb/ft3....
i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X 329 W530 X 72 X DDORI EM 721
A concrete beam is strengthened using two steel plates as shown in the cross section of the member. The beam has simple supports and an overhang and is subjected to a uniform load as shown. Assume that Ec=25 GPa and Es=200 GPa. 1. Determine the maximum moment carried in the member. 2. Determine the modular ratio, n. 3. Determine the centroid of the transformed section 4. Determine the maximums stresses in the concrete and the steel. 2 kN/m A- B...
Locate the centroid y for the beam's cross-sectional
area.
Question 5 5 pts Locate the centroid y for the beam's cross-sectional area. 120 mm 240 mm 240 mm 240 mm 120 mm 200 218 235 226 249
Locate the centroid of the shown cross-section, calculate moment of inertia about x and y axes. 250 38 100 m kum ---75 mm-- --75 mm 38 150 50 mm SO mm - 75 mm-+-75 mm- 25 mm 100 mm 4 in 3 in.- -
Locate the centroid y of the cross section and determine the moment of inertia of the section about the x' axis. 0.4 m 0.05 m 0.3 m- 0.2 m 0.2 m 0.2 m 0.2 mm
solve for b
7.10 Locate the centroid of the area shown. In part (b), note the sym- bol signifying that the area is symmetric about the centerline. PROBLEM 7.12 30 mm Sym. x bar 15 mm W4 X 13 50 mm
9 The cross-section of a beam is shown below. The top rectanular piece of the cross-section is a steel section 6 inches wide by 8 inches deep. The dimensions of the member are shown below in the table. The cross-section is loaded in bending by a moment about the zz-axis. The allowable bending stress of the cross-section is 36 (ksi). Determine: a) the elastic centroid of the cross-section. b) the yield moment. c) the plastic centroid of the cross-section d)...
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
Hing PROBLEMS Determine the positon of the centroid (x,.5) in the T-beam's cross-section shown 50 mm50 mm 300 mm 100 mm 200 mm PROBLEM 6 For the T-beam shown in problem 5, determine the moment of inertia of the cross section about the axis x' passing through the centroid.
The gray area represents the cross-section of a concrete beam with a trapezoidal opening. The section is symmetric about the vertical centerline. 6.3 in 06.3 in 5 in 15.6 in €6.4 in €6.4 in We wish to find the vertical distance from the base of the cross-section to its centroid in inches. in If we make a beam with this cross-section, determine its weight per foot into the page) in lb/ft, assuming the unit weight of concrete is 150 lb/ft3....
