Homework Answers
Thanks
Add Answer to:

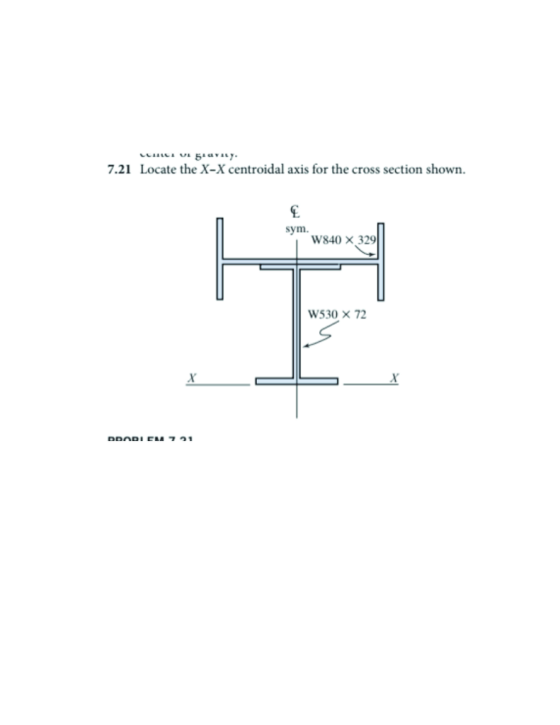

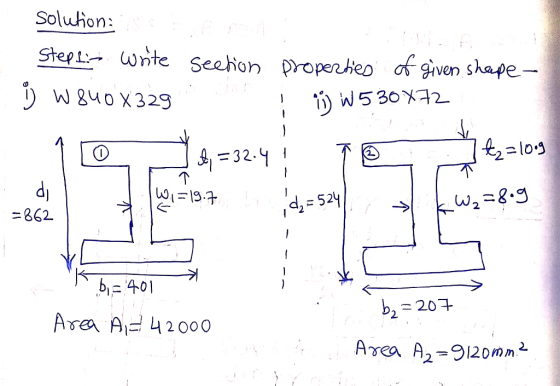

i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X...
7.7 A concrete member has a cross section as shown. Locate the centroid. 5'-0" Sym. 5"...
7.7 A concrete member has a cross section as shown. Locate the centroid. 5'-0" Sym. 5" t8 1-0" 1'-0"
The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m...
The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'-axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m "0.2 m 0.2 m 0.2 m 0.2 m
The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m...
The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m 0.2 m 0.2 m 0.2 m 0.2 m
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2
Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2 HINT: 1st find the composite centroidal x and y axes, 2nd find the distance from the centroids of each section to the new composite centroidal axis, 3rd calculate the centroidal Ix and ly and areas using formulas for common shapes, 4th use the parallel axis theorem to calculate the moment of inertia. Also find...
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis....
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis. When b = 24", determine (a) the coordinates of the centroid (x, y), and (b) the moment of inertial about the centroidal axis x! The centroidal axis x'is parallel to x- axis and crosses through (X,Y). Upload Choose a File
locate the x-x centroidal axis from the base of the problem 8" K T x- 8"...
locate the x-x centroidal axis from the base of the
problem
8" K T x- 8" X 16" 16" (b)
Find the moment of inertia (inch) about the centroidal axis for the composite cross-section. Because of...
Find the moment of inertia (inch) about the centroidal axis for the composite cross-section. Because of symmetry, the centroid is in the center of the cross-section. Report answer to whole number. f = 12 in. tw = 2 in. tp = 2 in. w = 16 in.
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate w...
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate welded to its top flange, as shown below. Locate the XX centroidal axis. A W18 x 71 wide-flange section has an area of 14.7 in2 and a height of 18 in (Hints: (1) let A- 14.7 (the area of the flange), (2) find A2 (the area of the cover plate); (3) find yi and уг; (4) find y-bar to find the X-X...
Determine the Moment of Inertia of the section shown with respect to its centroidal y-axis.
20. Determine the Moment of Inertia of the section shown with respect to its centroidal y-axis. 21. Determine the ly (Moment of Inertia with respect to the y-axis) for the section shown:
1. For the cross section shown in the accompanying illustration, compute the location of the controid...
1. For the cross section shown in the accompanying illustration, compute the location of the controid (i.e., X, Y), moment of inertias 7, and I, and the radii of gyrations k, and ke about the centroidal axes for combine area shown below. You should first locate the centroid and then transfer your moment of inertia for the individual sub- sections you use to compute the centroid axes using the parallel axis theorem. 1-248-45, +4,8, +4,8, 24 4 + 4 +...
7.7 A concrete member has a cross section as shown. Locate the centroid. 5'-0" Sym. 5" t8 1-0" 1'-0"
The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'-axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m "0.2 m 0.2 m 0.2 m 0.2 m
The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m 0.2 m 0.2 m 0.2 m 0.2 m
Question 1 25 pts The cross-section area shown in the figure is symmetric about the y-axis. When b = 24", determine (a) the coordinates of the centroid (x, y), and (b) the moment of inertial about the centroidal axis x! The centroidal axis x'is parallel to x- axis and crosses through (X,Y). Upload Choose a File
locate the x-x centroidal axis from the base of the
problem
8" K T x- 8" X 16" 16" (b)
Find the moment of inertia (inch) about the centroidal axis for the composite cross-section. Because of symmetry, the centroid is in the center of the cross-section. Report answer to whole number. f = 12 in. tw = 2 in. tp = 2 in. w = 16 in.
A built-up steel member is composed of a W18 x71 wide-flange section with a 12-ir by %-in plate welded to its top flange, as shown below. Locate the XX centroidal axis. A W18 x 71 wide-flange section has an area of 14.7 in2 and a height of 18 in (Hints: (1) let A- 14.7 (the area of the flange), (2) find A2 (the area of the cover plate); (3) find yi and уг; (4) find y-bar to find the X-X...
1. For the cross section shown in the accompanying illustration, compute the location of the controid (i.e., X, Y), moment of inertias 7, and I, and the radii of gyrations k, and ke about the centroidal axes for combine area shown below. You should first locate the centroid and then transfer your moment of inertia for the individual sub- sections you use to compute the centroid axes using the parallel axis theorem. 1-248-45, +4,8, +4,8, 24 4 + 4 +...
