locate the x-x centroidal axis from the base of the problem 8" K T x- 8"...

Question

Question

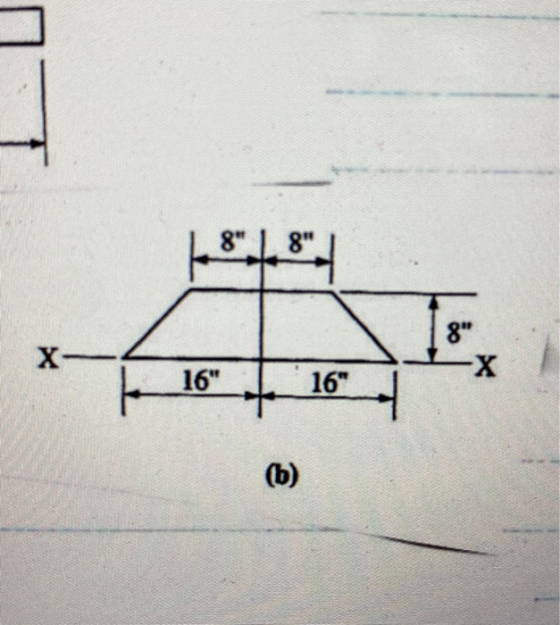

locate the x-x centroidal axis from the base of the problem
8 K T x- 8 X 16 16 (b)

engineering Civil-Engineering

Answer 1

Similar Homework Help Questions

i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X...

i giavity 7.21 Locate the X-X centroidal axis for the cross section shown sym. W840 X 329 W530 X 72 X DDORI EM 721
Locate the centroid, ỹ, relative to the x-axis. Calculate the moment of inertia relative to the...

Locate the centroid, ỹ, relative to the x-axis. Calculate the moment of inertia relative to the centroidal x 3 in axis What is the location of the centroid. y bar, measured relative to the x-axis? 1 in 1 in. 5 in. 3.12 in 2 in. 2.91 in 3.79 in 3 in.-3 in,- 4.12 in what is the moment of inertia about the centroidal x-axis? Be careful when defining the dy distance of the half circle at the top, Note that...
The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m...

The cross section has an area of 0.25500 m². The centroidal x'-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'-axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m "0.2 m 0.2 m 0.2 m 0.2 m

(10 points) Determine the moment of inertia of the composite beam about the centroidal x and...

(10 points) Determine the moment of inertia of the composite beam about the centroidal x and y axis. Hint: You need to locate the centroid of the composite area. You can use the tables in Appendix B and C. Then, using the same tables and parallel axis theorem you can calculate the moment of inertia about the centroidal axes. 20 in Ism 5 in W10x54 Note: The drawing is not to scale. is the centerline symbol Problem 1
Locate the X-X and Y-Y centroidal axes for the area shown. Ce Te 2

Locate the X-X and Y-Y centroidal axes for the area shown. Ce Te 2
Problem 1 Determine the moment of inertia of the T section shown below with respect to its centroidal axis, x0.

Problem 1 Determine the moment of inertia of the T section shown below with respect to its centroidal axis, x0.

The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m...

The cross section has an area of 0.25500 m2. The centroidal x-axis is located 0.18056 m above the base of the cross section. a) Determine the moment of inertia of the cross section about the centroidal x'axis. b) Determine the moment of inertia of the cross section about the axis along the base of the cross section. 0.4 m 0.05 m 0.3 m 0.2 m 0.2 m 0.2 m 0.2 m
Problem 1 Determine the moment of inertia about the centroidal x-axis for the area shown. Each...

Problem 1 Determine the moment of inertia about the centroidal x-axis for the area shown. Each square = 3 cm x 3 cm. Prepare the required tables for your calculations.
Calculate the moment of inertia, Ik, about the centroidal x-axis, x and the moment of inertia,...

Calculate the moment of inertia, Ik, about the centroidal x-axis, x and the moment of inertia, l, about the centroidal y-axis, y. 4 in 3 in 6 in 3 in 10 in 2 in 2 in 2 in

Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2

Determine the Moment of Inertia Ix and Iy of the composite cross section about the centroidal x and y axes. Parallel Axis Theorem I = I + Ad2 HINT: 1st find the composite centroidal x and y axes, 2nd find the distance from the centroids of each section to the new composite centroidal axis, 3rd calculate the centroidal Ix and ly and areas using formulas for common shapes, 4th use the parallel axis theorem to calculate the moment of inertia. Also find...
