Question

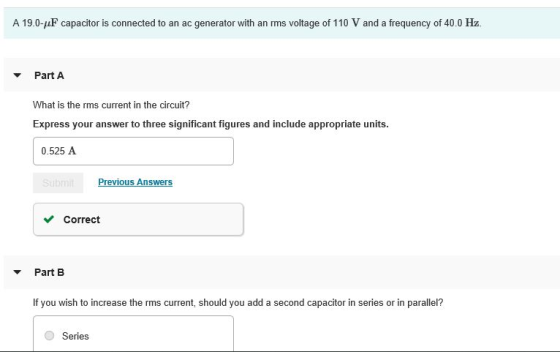

A 190-aF capacitoris connected to an ac generator with a ms voltage of 110 V and a frequency of 40 0 Ha Part A What is the rms current in the circuit? Express your answer to three significant figures and include appropriate units. 0.525 A Correct Part B If you wish to increase the rms current, should you add a second capacitor in series or in parallel? Series

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

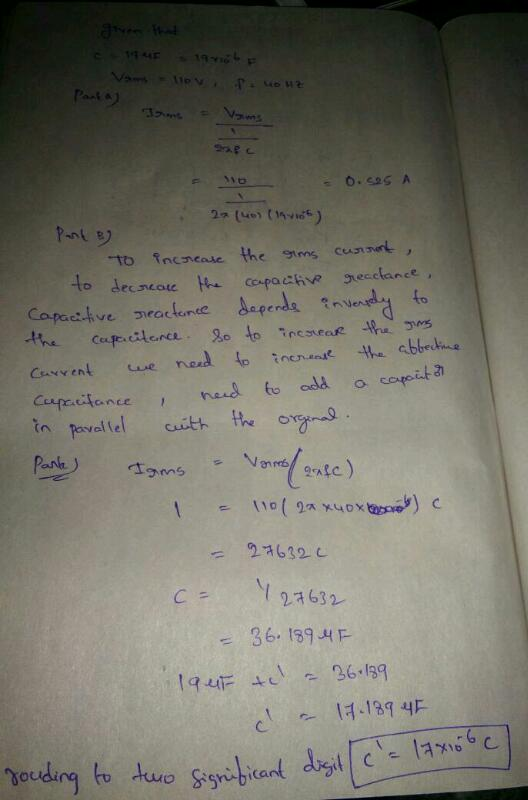

Answer #1

り10 -to to had to add a capit nLe 23632 3 6-1374 F 乍oeding h, turo gi5n.bicart d stLc

0 0
Add a comment
Know the answer?
Add Answer to:
A 190-aF capacitoris connected to an ac generator with a ms voltage of 110 V and...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • A 27.0-uF capacitor is connected to an ac generator with an ms voltage of 116 V and a frequency o...

    A 27.0-uF capacitor is connected to an ac generator with an ms voltage of 116 V and a frequency of 80.0 Hz. PartA What is the rms current in the circuit? Express your answer to three significant figures and include appropriate units. 1.57 A Correct PartB If you wish to increase the rms current, should you add a second capacitor in series or in parallel? Parallel Series Previous Answers Correct Part C Find the value of the capacitance that should...

  • A 110 ?F capacitor is connected to an ac generator with an rms voltage of 20.0...

    A 110 ?F capacitor is connected to an ac generator with an rms voltage of 20.0 V and a frequency of 100.0 Hz . A)What is the rms current in this circuit?

  • An AC generator supplies an rms voltage of 110 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 110 V at 60.0 Hz. It is connected in series with a 0.300 H inductor, a 5.60 uF capacitor and a 256 2 resistor. What is the impedance of the circuit? Submit Answer Tries 0/20 What is the rms current through the resistor? Submit Answer Tries 0/20 What is the average power dissipated in the circuit? Submit Answer Tries 0/20 What is the peak current through the resistor? Submit Answer Tries 0/20...

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.450 H inductor, a 5.4 uF capacitor and a 351 ohm resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the capacitor?...

  • A 120 μF capacitor is connected to an ac generator with an rms voltage of 17.0...

    A 120 μF capacitor is connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz . Constants I Periodic Table Part A A 120 μΡ capacitors connected to an ac generator with an rms voltage of 17.0 V and a frequency of 130.0 Hz What is the rms current in this circuit?

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.400 H inductor, a 5.30 ?F capacitor and a 251 ohm resistor. A.) What is the impedance of the circuit? B.) What is the rms current through the resistor? C.) What is the average power dissipated in the circuit? D.) What is the peak current through the resistor? E.) What is the peak voltage across the inductor F.) What is...

  • An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 120 V at 60.0 Hz. It is connected in series with a 0.350 H inductor, a 5.10 μF capacitor and a 306 Ω resistor. a. What is the impedance of the circuit? b. What is the rms current through the resistor? c. What is the average power dissipated in the circuit? d. What is the peak current through the resistor? e. What is the peak voltage across the inductor? f. What is...

  • An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected...

    An AC generator supplies an rms voltage of 240 V at 50.0 Hz. It is connected in series with a 0.650 H inductor, a 4.70 μF capacitor and a 246 Ω resistor. a) What is the impedance of the circuit? b) What is the rms current through the resistor? c) What is the average power dissipated in the circuit? d) What is the peak current through the resistor? e) What is the peak voltage across the inductor? f) What is...

  • Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is...

    Generator An AC generator supplies an rms voltage of 220 V at 50.0 Hz. It is connected in series with a 0.700 H inductor, a 5.20 μF capacitor and a 401 Ω resistor. What is the impedance of the circuit? What is the rms current through the resistor? What is the average power dissipated in the circuit? What is the peak current through the resistor? What is the peak voltage across the inductor? What is the peak voltage across the...

  • A 55.0 Hz generator with an rms voltage of 110 V is connected in series to...

    A 55.0 Hz generator with an rms voltage of 110 V is connected in series to a 3.40 k Ohm resistor and a 1.00 mu F capacitor. Find the rms current in the circuit. Find the phase angle, Phi, between the current and the voltage.
