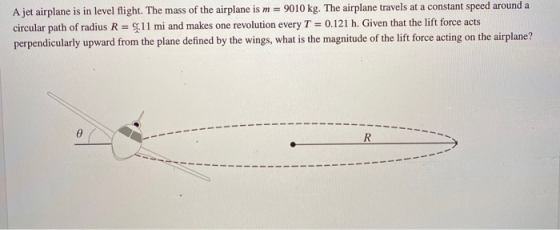

A jet airplane is in level flight. The mass of the airplane is m = 9010...

Question

Question

science physics

Answer 1

Answer #1

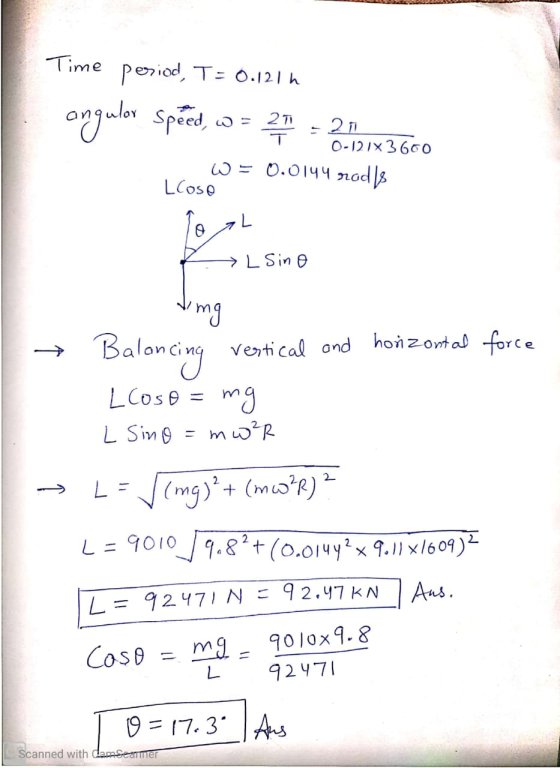

Time period, T=0.1214 angulor speed, 21 - 21 0-121x 3600 w = 0.0144 rod ls Llose AL L Sino ting Balancing vestical and horizo

Answer 2

Similar Homework Help Questions

A jet airplane is in level flight. The mass of the airplane is ?=8950 kg. The...

A jet airplane is in level flight. The mass of the airplane is ?=8950 kg. The airplane travels at a constant speed around a circular path of radius ?=9.77 mi and makes one revolution every ?=0.129 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane? An airplane banked inward such that its wings make an angle theta with the horizontal travels...
A jet airplane is in level flight. The mass of the airplane is ?=8850 kg. The...

A jet airplane is in level flight. The mass of the airplane is ?=8850 kg. The airplane travels at a constant speed around a circular path of radius ?=8.67 mi and makes one revolution every ?=0.115 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane? L=____kN At what angle is the airplane banked?
A jet airplane is in level flight. The mass of the airplane is m=8890 kg. The...

A jet airplane is in level flight. The mass of the airplane is m=8890 kg. The airplane travels at a constant speed around a circular path of radius R=8.89 mi and makes one revolution every T=0.118 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane?

A jet airplane is in level flight. The mass of the airplane is ?=8990 kg. The...

A jet airplane is in level flight. The mass of the airplane is ?=8990 kg. The airplane travels at a constant speed around a circular path of radius ?=8.89 mi and makes one revolution every ?=0.118 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane?
A jet airplane is in level flight. The mass of the airplane is m- 8830 kg....

A jet airplane is in level flight. The mass of the airplane is m- 8830 kg. The plane travels at a constant speed around a circular path of radius R 8.23 miles and makes one revolution every T 0.109 hours What is the magnitude of the lift force acting on the plane? Number L- kN At what angle is the airplane banked? Number
The jet airplane is in level flight. The mass of the airplane is m= 8930 kg....

The jet airplane is in level flight. The mass of the airplane is m= 8930 kg. The plane travels at a constant speed around a circular path of radius R= 8.23 miles and makes one revolution every T= 0.109 hours. What is the magnitude of the lift force acting on the plane?

Question 12 An airplane is traveling at 250 m/s in level flight. If the airplane is...

Question 12 An airplane is traveling at 250 m/s in level flight. If the airplane is to make a change in direction, it must travel in a horizontal curved path. To fly in the curved path, the pilot banks the airplane at an angle such that the lift has a horizontal component that provides the horizontal centripetal acceleration to move in a horizontal circular path. If the airplane is banked at an angle of 15.0 degrees, then the radius of...
Question 14 An airplane flies in a horizontal circle at a constant speed of 172 m/s....

Question 14 An airplane flies in a horizontal circle at a constant speed of 172 m/s. Banked for the turn, the wings of the plane tilt at 37.7o to the horizontal. Assume the lift force that keeps the plane aloft acts perpendicular to the wings. Find R, the radius of the circle in which the plane is flying, in km. HINT: This plane is not in equilibrium!
For an airplane in flight, the average speed of the air relative to the plane is...

For an airplane in flight, the average speed of the air relative to the plane is 317 m/s below the wings and 348 m/s above the wings. The bottom of each wing has a surface area of 29.9 m2. Calculate the lift, which is the net upward force of air on the plane.

For an airplane in flight, the average speed of the air relative to the plane is...

For an airplane in flight, the average speed of the air relative to the plane is 306 m/s below the wings and 336 m/s above the wings (see the figure below). The bottom of each wing has a surface area of 29.7 m2. Calculate the lift, which is the net upward force of air on the plane.
