For an airplane in flight, the average speed of the air relative to the plane is...

For an airplane in flight, the average speed of the air relative to the plane is 306 m/s below the wings and 336 m/s above the wings (see the figure below). The bottom of each wing has a surface area of 29.7 m². Calculate the lift, which is the net upward force of air on the plane.

For an airplane in flight, the average speed of th

science physics

Add a comment Improve this question Transcribed image text

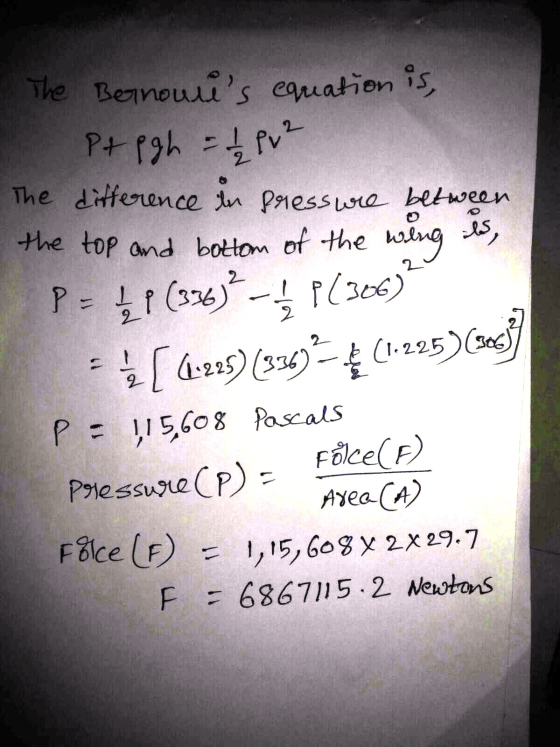

Answer 1

Answer #1

Add a comment

Answer 2

Similar Homework Help Questions

For an airplane in flight, the average speed of the air relative to the plane is...

For an airplane in flight, the average speed of the air relative to the plane is 320 m/s below the wings and 352 m/s above the wings (see the figure below). The bottom of each wing has a surface area of 30.9 m2. Calculate the lift, which is the net upward force of air on the plane.
For an airplane in flight, the average speed of the air relative to the plane is...

For an airplane in flight, the average speed of the air relative to the plane is 317 m/s below the wings and 348 m/s above the wings. The bottom of each wing has a surface area of 29.9 m2. Calculate the lift, which is the net upward force of air on the plane.
An airplane has an effective wing surface area of 21.9 m2 that is generating the lift...

An airplane has an effective wing surface area of 21.9 m2 that is generating the lift force. In level flight the air speed over the top of the wings is 70.0 m/s, while the air speed beneath the wings is 47.0 m/s. What is the weight of the plane?

An airplane wing generates lift due to a difference in air speed above and below the...

An airplane wing generates lift due to a difference in air speed above and below the wing. If the wings are both at the same height, what term is the same on both sides of the Bernoulli equation? Calculate the change in pressure (P-bottom - P_top) a wing experiences if the air moves at 245 m/s above the wing and 222m/s below the wing. The density of air is 1.29kg/m^3. Calculate the lift force the plane experiences if it has...
a) Find the pressure difference on an airplane wing if air flows over the upper surface...

a) Find the pressure difference on an airplane wing if air flows over the upper surface with a speed of 123 m/s, and along the bottom surface with a speed of 109 m/s b) If the area of the wing is 35 m2, what is the net upward force exerted on the wing?
An air-plane has an effective wing surface area of 12.0 m² that is generating the lift...

An air-plane has an effective wing surface area of 12.0 m² that is generating the lift force. In level flight the air speed over the top of the wings is 65.5 m/s, while the air speed beneath the wings is 39.0 m/s. What is the weight of the plane?(The density of air is 1.29 kg/m³)

8. An air-plane has an effective wing surface area of 14.0 m² that is generating the...

8. An air-plane has an effective wing surface area of 14.0 m² that is generating the lift force. In level flight the air speed over the top of the wings is 60.5 m/s, while the air speed beneath the wings is 38.5 m/s. What is the weight of the plane?(The density of air is 1.29 kg/m³)
Find the pressure difference on an airplane wing if air flows over the upper surface with...

Find the pressure difference on an airplane wing if air flows over the upper surface with a speed of 115 m/s , and along the bottom surface with a speed of 103 m/s . Answer is in kPa. If the area of the wing is 33 m2 , what is the net upward force exerted on the wing? Express your answer using two significant figures. Answer in kN
A jet airplane is in level flight. The mass of the airplane is m=8890 kg. The...

A jet airplane is in level flight. The mass of the airplane is m=8890 kg. The airplane travels at a constant speed around a circular path of radius R=8.89 mi and makes one revolution every T=0.118 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane?

A jet airplane is in level flight. The mass of the airplane is m = 9010...

A jet airplane is in level flight. The mass of the airplane is m = 9010 kg. The airplane travels at a constant speed around a circular path of radius R=4.11 mi and makes one revolution every T = 0.121 h. Given that the lift force acts perpendicularly upward from the plane defined by the wings, what is the magnitude of the lift force acting on the airplane? e R L= KN At what angle is the airplane banked? @=
