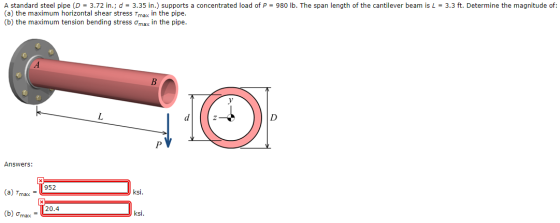

A standard steel pipe (D = 3.72 in.; d = 3.35 in.) supports a concentrated load...
A standard steel pipe (D = 3.19 in.; d = 2.71 in.) supports a concentrated load...
A standard steel pipe (D = 3.19 in.; d = 2.71 in.) supports a concentrated load of P = 880 lb. The span length of the cantilever beam is L = 2.4 ft. Determine the magnitude of: (a) the maximum horizontal shear stress Tmax in the pipe. (b) the maximum tension bending stress Omax in the pipe. A B d D L Answers: (a) Tmax ksi. (b) Omax = ksi.
A 0.875-in.-diameter solid steel shaft supports loads Pa = 230 lb and PD = 340 lb....
A 0.875-in.-diameter solid steel shaft supports loads Pa = 230 lb and PD = 340 lb. Assume L1 = 2.7 in., L2 = 4.9 in., and L3 = 4.1 in. The bearing at B can be idealized as a pin support and the bearing at C can be idealized as a roller support. Determine the magnitude and location of: (a) the maximum horizontal shear stress Tmax in the shaft. (b) the maximum tension bending stress Omax in the shaft. PD...
A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. De...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. Determine (a) the maximum horizontal shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress BC MB Answers: ksi ƠC,ma,- (b) ksi ƠT,max= (c)
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed...
A cantilever wood beam with a span of L = 21 ft
supports a linearly distributed load with maximum intensity of
w0 = 250 lb/ft. The allowable bending stress of
the wood is 1.70 ksi. If the aspect ratio of the solid rectangular
cross section is specified as h/b = 0.50,
determine the minimum width b that can be used for the
beam.
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load...
The cantilever beam is subjected to a concentrated load of P = 35 kips. The cross-sectional...
The cantilever beam is subjected to a concentrated load of P = 35 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume yH = 4.6 in., ?? 1.8 in, d = 14.6 in., tw= 0.307 in., tf= 0.331 in., br= 7.55 in. Determine: (a) the shear stress tH at point H, which is located 4.6 in. below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress Tmax in the wide-flange shape...
The cantilever beam is subjected to a concentrated load of P = 29 kips. The cross-sectional dimen...
The cantilever beam is subjected to a concentrated load of
P = 29 kips. The cross-sectional dimensions of the
wide-flange shape are shown in the second figure. Assume
yH=3.4 in., yK=1.6 in.,
d=10.6 in., tw=0.323 in.,
tf=0.507 in., bf=6.12 in.
Determine:
The cantilever beam is subjected to a concentrated load of P 29 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume y,-3.4 in., Ук_ 1.6 in., d-10.6 in., t,-0.323 in., tf-0.507 in., bf-6.12...
A concentrated load P is applied to the upper end of a 0.86-m-long pipe. The outside diameter of the pipe is D-106 mm and the inside diameter is d-98 mm. (a) Compute the value of Q for the pipe. (b)...
A concentrated load P is applied to the upper end of a 0.86-m-long pipe. The outside diameter of the pipe is D-106 mm and the inside diameter is d-98 mm. (a) Compute the value of Q for the pipe. (b) If the allowable shear stress for the pipe shape is 75 MPa, determine the maximum load P that can be applied to the cantilever beam. Answers: (a) Q = (b) P = kN
A concentrated load P is applied to...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 ...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 kips each at quarter points is laterally unbraced except at its ends and the center line. If the maximum permissible center line deflection under service live load equal L/400, select the lightest Wsection of 50 ksi steel, considering moment, shear, and deflection. Neglect beanm weight. Use Cb-1.0.
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of...
1. A steel bar with solid circular cross section has a diameter d= 2.5 in., a...
1. A steel bar with solid circular cross section has a diameter d= 2.5 in., a length L = 60 in. and a shear modulus of elasticity G = 1 1.5 × 106 psi. The bar is subjected to torque T- 350 lb-ft as shown. (a) Find the angle of twist between the d 2.5 in (b) Find the maximum shear stress in the (c) Find the shear stress ta at a distance (d) Find the shear stress Tcenter at...
A standard steel pipe (D = 3.19 in.; d = 2.71 in.) supports a concentrated load of P = 880 lb. The span length of the cantilever beam is L = 2.4 ft. Determine the magnitude of: (a) the maximum horizontal shear stress Tmax in the pipe. (b) the maximum tension bending stress Omax in the pipe. A B d D L Answers: (a) Tmax ksi. (b) Omax = ksi.
A 0.875-in.-diameter solid steel shaft supports loads Pa = 230 lb and PD = 340 lb. Assume L1 = 2.7 in., L2 = 4.9 in., and L3 = 4.1 in. The bearing at B can be idealized as a pin support and the bearing at C can be idealized as a roller support. Determine the magnitude and location of: (a) the maximum horizontal shear stress Tmax in the shaft. (b) the maximum tension bending stress Omax in the shaft. PD...
A cantilever beam supports the
loads shown. The cross-sectional dimensions of the shape are also
shown. Assume LAB = 4.0 ft,
LBC = 12.0 ft, w = 1620 lb/ft,
P = 2550 lb, b = 16 in., d = 6 in.,
t = 0.50 in. Determine
(a) the maximum horizontal shear stress.
(b) the maximum compression bending stress.
(c) the maximum tension bending stress.
Chapter 9, Supplemental Question 043 (GO Tutorial) A cantilever beam supports the loads shown. The cross...
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown. Assume LAB-2.5 ft, LBc 7.5 ft, w 1500 lb/ft, P-2100 lb, b-15 in., d-8 in., t 0.45 in. Determine (a) the maximum horizontal shear stress. (b) the maximum compression bending stress. (c) the maximum tension bending stress BC MB Answers: ksi ƠC,ma,- (b) ksi ƠT,max= (c)
P9.037 A cantilever beam supports the loads shown. The cross-sectional dimensions of the shape are also shown....
A cantilever wood beam with a span of L = 21 ft
supports a linearly distributed load with maximum intensity of
w0 = 250 lb/ft. The allowable bending stress of
the wood is 1.70 ksi. If the aspect ratio of the solid rectangular
cross section is specified as h/b = 0.50,
determine the minimum width b that can be used for the
beam.
A cantilever wood beam with a span of L = 21 ft supports a linearly distributed load...
The cantilever beam is subjected to a concentrated load of P = 35 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume yH = 4.6 in., ?? 1.8 in, d = 14.6 in., tw= 0.307 in., tf= 0.331 in., br= 7.55 in. Determine: (a) the shear stress tH at point H, which is located 4.6 in. below the centroid of the wide-flange shape. (b) the maximum horizontal shear stress Tmax in the wide-flange shape...
The cantilever beam is subjected to a concentrated load of
P = 29 kips. The cross-sectional dimensions of the
wide-flange shape are shown in the second figure. Assume
yH=3.4 in., yK=1.6 in.,
d=10.6 in., tw=0.323 in.,
tf=0.507 in., bf=6.12 in.
Determine:
The cantilever beam is subjected to a concentrated load of P 29 kips. The cross-sectional dimensions of the wide-flange shape are shown in the second figure. Assume y,-3.4 in., Ук_ 1.6 in., d-10.6 in., t,-0.323 in., tf-0.507 in., bf-6.12...
A concentrated load P is applied to the upper end of a 0.86-m-long pipe. The outside diameter of the pipe is D-106 mm and the inside diameter is d-98 mm. (a) Compute the value of Q for the pipe. (b) If the allowable shear stress for the pipe shape is 75 MPa, determine the maximum load P that can be applied to the cantilever beam. Answers: (a) Q = (b) P = kN
A concentrated load P is applied to...
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of 20 kips each at quarter points is laterally unbraced except at its ends and the center line. If the maximum permissible center line deflection under service live load equal L/400, select the lightest Wsection of 50 ksi steel, considering moment, shear, and deflection. Neglect beanm weight. Use Cb-1.0.
2. (1.5 points) A 24-ft simple span that supports three (3) service concentrated live load of...
1. A steel bar with solid circular cross section has a diameter d= 2.5 in., a length L = 60 in. and a shear modulus of elasticity G = 1 1.5 × 106 psi. The bar is subjected to torque T- 350 lb-ft as shown. (a) Find the angle of twist between the d 2.5 in (b) Find the maximum shear stress in the (c) Find the shear stress ta at a distance (d) Find the shear stress Tcenter at...
