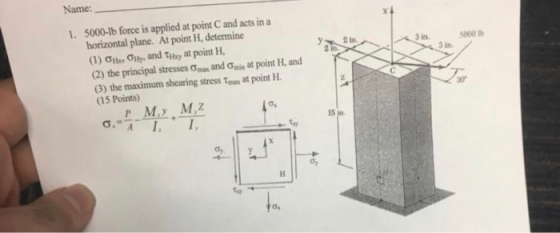

Name: 1. 5000-1b force is applied at point and acts in a horizontal plane. At point H, determine (1) s ily, and they at point
0 0
Add a comment Improve this question Transcribed image text
Answer #1

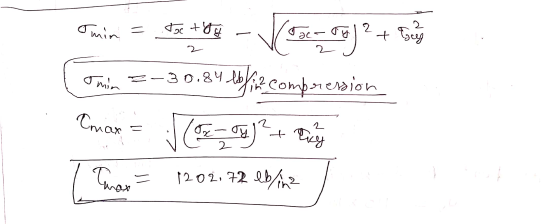

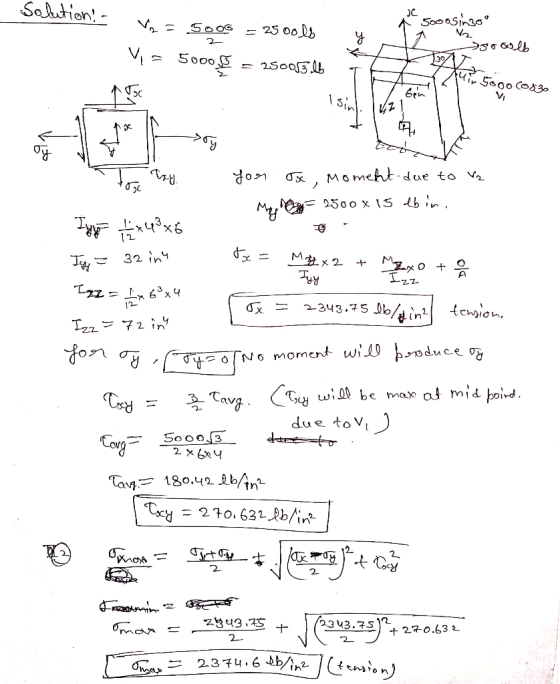

- Solutions - 2 sooosingo Vo = soos = 25ools y TÁ Van sooolb Vi = 5000185 = 250055 lb T u in sono cos Isin. 121 Song de = Mayt2 2 VV Canin = 4 * te - V ojet tona Train =-30.84 kytic compression Oman = (- ou + try l Chan = 1202.72 lb in

Add a comment
Know the answer?
Add Answer to:
Name: 1. 5000-1b force is applied at point and acts in a horizontal plane. At point...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10...

    4. The vertical post shown has a diameter of 64 mm. A horizontal force of 10 kN and a torque of 1.4 kNm are applied at the top of the post. Determine the principal stresses and maximum shearing stress at points H and K which are located on a plane 240mm down from the top of the post. 1.4 kNm 10 KN H K 240 mm

  • Q3. (30 points) For the state of plane stress shown, Stresses, σ. σ2 (b) the orientation of the p...

    please help me solve this whole mechanical design problem thanks Q3. (30 points) For the state of plane stress shown, Stresses, σ. σ2 (b) the orientation of the principal stresses, s, (c) the maximum in plane shearing stress, Tmar and (d) its orientation, p. (e) the normal stress at the plane of maximum shear stress, (1) sketch of the rotated plane element for the principal stresses and the rotated plane element for maximum shear stress similar to figure 1, below...

  • A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing...

    A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing that the post has a diameter of 60 mm, using Mohr’s circle determine the principal stresses and the maximum shearing stress at Point K A 17.5 kN force is applied at Point D of the cast iron post shown. Knowing that the post has a diameter of 60 mm, using Mohr's circle determine the principal stresses and the maximum shearing stress at Point K....

  • 8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100...

    8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm Fig. P8.42 8.42A 13-kN force is applied as shown to the 60-mm-diameter cast-iron post ABD. At point H, determine (a) the principal stresses and principal planes, (b) the maximum shearing stress 13 kN 300 mm 100 mm 125 mm 150 mm...

  • 2. At a point in a rock layer underground, the vertical and horizontal principal stresses are...

    2. At a point in a rock layer underground, the vertical and horizontal principal stresses are 120 kN/m2 and 46 kN/m2 (both in compression), respectively. a) Label the element with the principal stresses b) Draw the Mohr's circle for these conditions. Label the axes. c) On the Mohr's circle, label the major and minor principal stresses, the deviator stress, and the center of the circle. Show all applicable coordinates or values d) What is the maximum shear stress and the...

  • 2. Three forces are applied to the bar shown, determine (a) The state of stress at...

    2. Three forces are applied to the bar shown, determine (a) The state of stress at point H (b) Construct the Mohr's circle and determine the principal stresses, principal planes and maximum shearing stresses at point H 15 kips 25 kips

  • a A horizontal bracket ABC consists of two perpendicular arms AB and BC as shown in...

    a A horizontal bracket ABC consists of two perpendicular arms AB and BC as shown in the figure. Amm AB has a solid circular cross section with diameter equal to 60 mm. At point C a load P = 2.02 EN acts vertically and a load Pa = 3.07 kN acts horizontally and parallel to am AB. For point p, (a) sketch the stress element, (3 marks) 6) calculate the principal planes and the principal stresses and sketch the orientation...

  • A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of 500 mm...

    A cylindrical tank holding oxygen at 5000 kPa pressure has an outside diameter of 500 mm and a wall thickness of 10 mm. It has been determined that a critical point on the tank is subjected to the tensile stress of 465 MPa in x-direction, compressive stress of 350 MPa in y-direction and shearing stress of 600 MPa. By using Mohr’s Circle; Sketch the plane stresses element for the critical point. Determine the principal stresses and their locations. Determine the...

  • Asap 1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the followi...

    Asap 1. The bracket is made of steel (Young's modulus 200 GPa; Poisson's ratio 0.3). When the force P is applied to the bracket, the gages in the strain rosette at point A have the following readings: E.-60 μ . Ep 135 μ l, and E.-264 μ (a) Determine the shear strain at point A. (b) Determine the orientation of the principal plane, the in-plane principal strains, the maximum in-plane shear strain, and the average in-plane normal strain. Determine the...

  • Consider a point in a structural member that is subjected to plane stress. Normal and shear...

    Consider a point in a structural member that is subjected to plane stress. Normal and shear stress magnitudes acting on horizontal and vertical planes at the point are Sx = 95.3 MPa, Sy = 79.3 MPa, and Sxy = 41.0 MPa. (a) Determine the principal stresses and the maximum in-plane shear stress acting at the point. (b) On your paper show these stresses in an appropriate sketch (e.g., see Figure 12.15 or Figure 12.16). (c) Compute the absolute maximum shear...
