2.) Suppose you are to analyze a cooling system, the room conditions are 75 °F and...

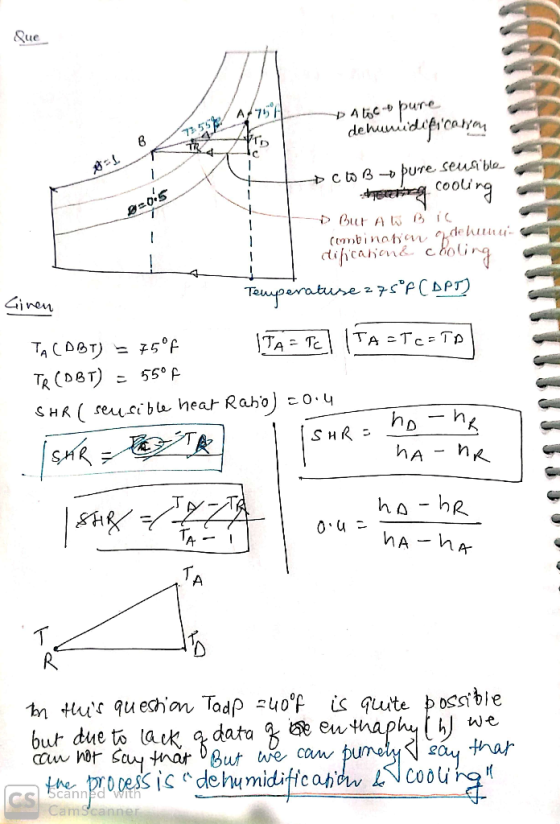

2.) Suppose you are to analyze a cooling system, the room conditions are 75 °F and 50% relative humidity, the SHR is equal to 0.4 and the initially targeted supply temperature is 55 °F. What can be said about this process?
A.) Tadp = 40 °F
B.) The process is simple cooling.
C.) This process has no ADP, cannot handle the latent load.
D.) The sensible load is too high!
Homework Answers
