5.52 fluid mechanics streer 9ed
for two hydraulic machines to be homologous, these must be
(A) be geometrically similar, (B) have the same discharge coefficient when viewed as a hole, Q1/(A1(2gH1)0.5) = Q2/(A2(2gH2)0.5)and (c) have the same ratio of peripheral velocity to fluid velocity, wD/(Q/A). Show that the scale relationships can be expressed as Q/ND3= constant and H/(ND)2= constant, N is the speed of rotation.
Homework Answers

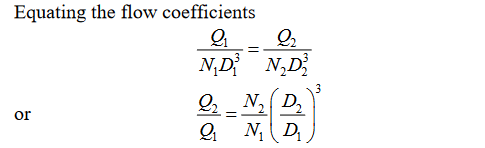

Equating head coefficients
H2=468.75 meter
Q2=46.875 L/SEC
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for...
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for velocity, force and power in terms of 24, , and I, where subscripts L, p and u are length, density and dynamic viscosity respectively and is the ratio of the value of "x" in the prototype to the value of "x" in the model. [4 marks) (b) Volumetric flow rate (discharge) Q through a circular pipe with diameter D can be measured by measuring...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1200 kg/m2, Uoo- 20 m/s and cylinder radius R 0.01 m 1 cm and Az 1 m Note: The flow does not cross streamlines, so there is no flow across the side boundaries. Exit (2) NO SCALE Variable u vs y at x2-0 Inlet (1) y- H1 and v 0 constant u Uo constant v0 A) Find mass...
Q1. (a) For a flow phenomenon governed mainly by viscous forces, derive the scale factors for velocity, force and power in terms of 24, , and I, where subscripts L, p and u are length, density and dynamic viscosity respectively and is the ratio of the value of "x" in the prototype to the value of "x" in the model. [4 marks) (b) Volumetric flow rate (discharge) Q through a circular pipe with diameter D can be measured by measuring...
Now evaluate the mass and momentum into and out of the CV shown with 1.0s y Rs 1.5 at (2) Let p 1200 kg/m2, Uoo- 20 m/s and cylinder radius R 0.01 m 1 cm and Az 1 m Note: The flow does not cross streamlines, so there is no flow across the side boundaries. Exit (2) NO SCALE Variable u vs y at x2-0 Inlet (1) y- H1 and v 0 constant u Uo constant v0 A) Find mass...
