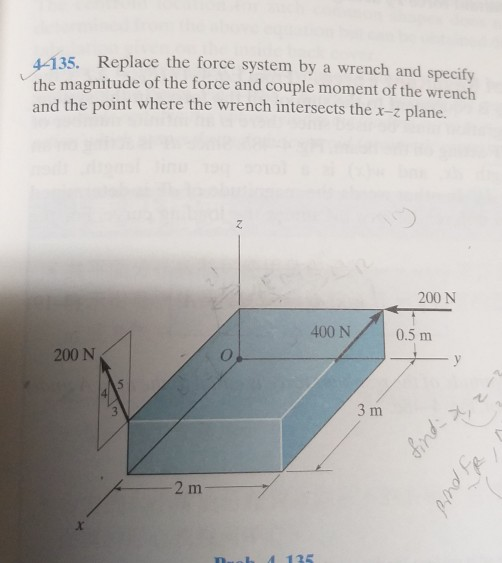

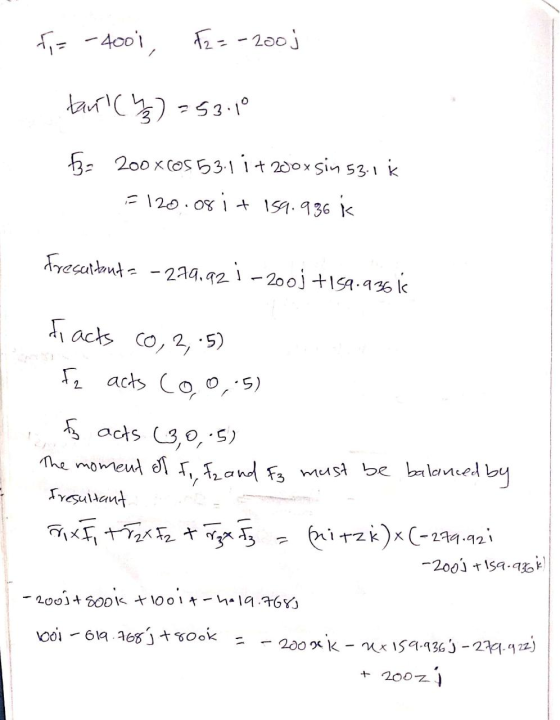

44135. Replace the force system by a wrench and specify the magnitude of the force and...
The loading system on a plate consists of 3 forces (600 N, 800 N, & 200...
The loading system on a plate consists of 3 forces (600 N, 800 N, & 200 N) and a couple moment (100 N.m) as shown in the diagram below. Replace them by a wrench. Specify the magnitude of the force (FR) and the couple moment (MR) for the wrench and the x and z coordinates for the point where the wrench intersects the x-z plane. 100 Nm MR = 2 m 4 m 200 N 2 m 600 N 800...
Replace the system of two forces and one couple by a wrench. Determine the magnitude of...
Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point P in the x-y plane through which the wrench passes. 27 kN.m 1.7 m 1.7 m 30 KN 1.7 m 1.7 m 31 KN 4.0 m A Answers: M= kN.m R= KN (x,y) = E
Question 1 Replace the system of two forces and one couple by a wrench. Determine the...
Question 1 Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point P in the x-y plane through which the wrench passes. 27 kN.m 1.7 m 1.7 m 2 30 KN 1.7 m 1.7 m 31 KN 4.0 m А Answers: M= kN.m KN R- (X,Y)=(
Question 1 Replace the system of two forces and one couple by a wrench. Determine the...
Question 1 Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point in the x y plane through which the wrench passes. 35 kNm 1.5 m 1.5 m 49 KN 1.5 m 1.5 in 9 KN 4.0 m A Answers: kN.m KN (x,x) = ו |
12. The system consists of the force and couple F =3i+6j+ 2k (N), M=12i + 4j...
12. The system consists of the force and couple F =3i+6j+ 2k (N), M=12i + 4j +6k (N-m) Represent it by a wrench, and determine where the line of action of thewrench's force intersects the x-z plane. M
12. The system consists of the force and couple F =3i+6j+ 2k (N), M=12i + 4j +6k (N-m) Represent it by a wrench, and determine where the line of action of thewrench's force intersects the x-z plane. M
Replace the loading on the frame by a single resultant force. Specify where its line of action intersects with memberCD, measured from point C.
Replace the loading on the frame by a single resultant force.
Specify where its line of action intersects with memberCD, measured from point C.Use F1 = 150 N, F2 = 440 N, F3= 530 N, and M = 120 Nm for your calculations.Your Answer:Magnitude of the resultant force in N (round the result to the
nearest integer):Angle (measured counterclockwise against the horizontal line DC) of the resultant force in degrees (round the result to
the nearest integer):Resultant couple moment at point...
Z Replace the two forces shown acting on the pipe system with an equivalent force and...
Z Replace the two forces shown acting on the pipe system with an equivalent force and couple moment acting about A. 150 N 2 m 1 m 2.5 m 2 m 200 N
Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.
Problem 3: Replace the force and couple moment system acting on the cantilever beam by a resultant force and specify its location along AB measured from point A.
Replace the force and couple moment system acting on the beam by an equivalent resultant force and specify its location from point A located at the centerline of the heam.
Replace the force and couple moment system acting on the beam by an equivalent resultant force and specify its location from point A located at the centerline of the heam.
The loading system on a plate consists of 3 forces (600 N, 800 N, & 200 N) and a couple moment (100 N.m) as shown in the diagram below. Replace them by a wrench. Specify the magnitude of the force (FR) and the couple moment (MR) for the wrench and the x and z coordinates for the point where the wrench intersects the x-z plane. 100 Nm MR = 2 m 4 m 200 N 2 m 600 N 800...
Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point P in the x-y plane through which the wrench passes. 27 kN.m 1.7 m 1.7 m 30 KN 1.7 m 1.7 m 31 KN 4.0 m A Answers: M= kN.m R= KN (x,y) = E
Question 1 Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point P in the x-y plane through which the wrench passes. 27 kN.m 1.7 m 1.7 m 2 30 KN 1.7 m 1.7 m 31 KN 4.0 m А Answers: M= kN.m KN R- (X,Y)=(
Question 1 Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point in the x y plane through which the wrench passes. 35 kNm 1.5 m 1.5 m 49 KN 1.5 m 1.5 in 9 KN 4.0 m A Answers: kN.m KN (x,x) = ו |
12. The system consists of the force and couple F =3i+6j+ 2k (N), M=12i + 4j +6k (N-m) Represent it by a wrench, and determine where the line of action of thewrench's force intersects the x-z plane. M
12. The system consists of the force and couple F =3i+6j+ 2k (N), M=12i + 4j +6k (N-m) Represent it by a wrench, and determine where the line of action of thewrench's force intersects the x-z plane. M
Z Replace the two forces shown acting on the pipe system with an equivalent force and couple moment acting about A. 150 N 2 m 1 m 2.5 m 2 m 200 N
