Homework Answers
Add Answer to:
Please help!!

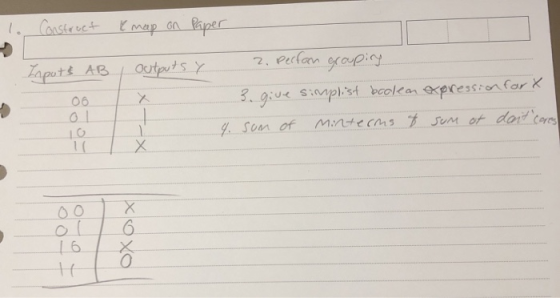

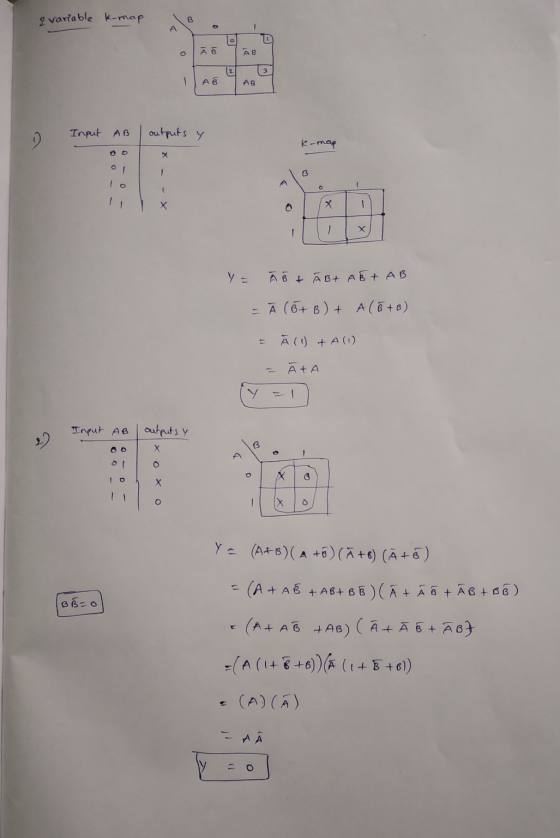

1. Construct ě map on paper Inputs AB outputs y 2. Perfan grouping 06...
use ‘ for not Question 2 Given the following Truth Table: Inputs AB Outputs X 00...
use
‘ for not
Question 2 Given the following Truth Table: Inputs AB Outputs X 00 0 1 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for x in the answer box below. Note: Do not include "x="in your answer it will be marked wrong
use ' for not . thank you Question 4 Your browser does not meet the minimum...
use ' for not .
thank you
Question 4 Your browser does not meet the minimum requirements for Canvas. Please visit the Cars Community for a complete list of supported be Given the following Truth Table: Inputs Outputs Авс 000 001 010 011 100 101 110 111 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for X in the answer box below. X= Note: Do not include "X="in...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A,...
Design a combinational circuit with three inputs, x , y, and z, and three outputs, A, B , and C . When the binary input is 0, 1, 2, or 3, the binary output is one greater than the input. When the binary input is 4, 5, 6, or 7, the binary output is two less than the input. 1) Truth table 2) Logic circuit 3) Boolean function of A using minterms ( use Boolean algebra) 4) Boolean function of...
please type ur answers. Given the following Truth Table on the right: Inputs Outputs ABC X...
please type ur answers.
Given the following Truth Table on the right: Inputs Outputs ABC X 000 001 010 011 100 101 110 1110 1. Write the equivalent Canonical Sum of Products, use apostrophe (') for NOT: Ха- 2. Write the Sum of Minterms (note is the Greek symbol for Sigma - "Sum") Xml 3. Write the Product of Maxterms (note is the Greek symbol for Pi, "Product") X-ME
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input ...
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
Please solve the problems from 2_5 Digital system Problem 2 Design a combinational circuit with inputs...
Please solve
the problems from 2_5
Digital
system
Problem 2 Design a combinational circuit with inputs a, b, c, d and outputs w, x, y, z. Assume that the inputs a, b, c d represent a 4-bit signed number (2s complement). The output is also a signed number in 2s complement which is 5 greater than the input if the input is less than 2, and is 2 less than the input if the input is greater than or equal...
Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy...
Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy + x'y' y'z 1. Implement it with AND, OR, and inverter 2. Implement it with OR and inverter gates, and 3. Implement it with AND and inverter gate 3. Express the following function in sum of minterms and product of maxterms: a) F(A,B,C,D) - B'DA'D BD b) F (AB+C)(B+C'D) 4.Express the complement of the following function in sum of minterms a) F (A,B,C,D)-2 (0,2,6,11,13,14)...
Please do problem 2 and 3 Complete the following homework problems. Show all work (making answers...
Please do problem 2 and 3
Complete the following homework problems. Show all work (making answers for clarity sure it is legible) and circle all Problem 1 w3 X A w4 w1 C D Y w2 Determine Boolean functions for intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y. b) a) Construct a truth table showing the intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y Use K-maps to find...
1) Given that F (a, b, c, d) =Σ(0,1, 2, 4, 5, 7), derive the product...
1) Given that F (a, b, c, d) =Σ(0,1, 2, 4, 5, 7), derive the product of maxterms expression of F and the two standard form expressions of F` for minterms and maxterms. 2). Given the following Boolean Function: F(A, B, C) = AB + B'(A' + C') Determine the canonical form for the SOP (sum of minterms) and POS (sum of maxterms). Also, draw the truth tables showing the minterms and maxterms. 3) Given n Boolean variables, how many...
Please solve the problems from 1_5 Digital system Complete the following homework problems. Show all work...
Please solve
the problems from 1_5
Digital
system
Complete the following homework problems. Show all work (making sure it is legible) and circle all answers for clarity Problem 1 w3 w4 B w1 a) Determine Boolean functions for intermediate outputs w,w2,w3, and w4 as well as the output signals X and Y. b) Construct a truth table showing the intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y c) Use K-maps to find simplified expressions...
use
‘ for not
Question 2 Given the following Truth Table: Inputs AB Outputs X 00 0 1 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for x in the answer box below. Note: Do not include "x="in your answer it will be marked wrong
use ' for not .
thank you
Question 4 Your browser does not meet the minimum requirements for Canvas. Please visit the Cars Community for a complete list of supported be Given the following Truth Table: Inputs Outputs Авс 000 001 010 011 100 101 110 111 11 1. Construct a K-Map on Scrap Paper 2. Perform Grouping on Scrap Paper 3. Give the SIMPLEST Boolean Expression for X in the answer box below. X= Note: Do not include "X="in...
please type ur answers.
Given the following Truth Table on the right: Inputs Outputs ABC X 000 001 010 011 100 101 110 1110 1. Write the equivalent Canonical Sum of Products, use apostrophe (') for NOT: Ха- 2. Write the Sum of Minterms (note is the Greek symbol for Sigma - "Sum") Xml 3. Write the Product of Maxterms (note is the Greek symbol for Pi, "Product") X-ME
1- Please answer all the question
2- with clear handwriting
Thank you,
3. Design a combinational circuit with inputs a, b, c, d and outputs w, z, y, z, where the input and output both represent a signed numbers (2s complement). The output is 7 less than the input, if the input is positive, or zero. If the input is negative, the output is 3 greater than the input. 7. Use the Boolean functions developed in problem #3 to create...
Please solve
the problems from 2_5
Digital
system
Problem 2 Design a combinational circuit with inputs a, b, c, d and outputs w, x, y, z. Assume that the inputs a, b, c d represent a 4-bit signed number (2s complement). The output is also a signed number in 2s complement which is 5 greater than the input if the input is less than 2, and is 2 less than the input if the input is greater than or equal...
Find the complement of the following expressions b) (AB+C)0%E 2. Given the Boolean function F -xy + x'y' y'z 1. Implement it with AND, OR, and inverter 2. Implement it with OR and inverter gates, and 3. Implement it with AND and inverter gate 3. Express the following function in sum of minterms and product of maxterms: a) F(A,B,C,D) - B'DA'D BD b) F (AB+C)(B+C'D) 4.Express the complement of the following function in sum of minterms a) F (A,B,C,D)-2 (0,2,6,11,13,14)...
Please do problem 2 and 3
Complete the following homework problems. Show all work (making answers for clarity sure it is legible) and circle all Problem 1 w3 X A w4 w1 C D Y w2 Determine Boolean functions for intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y. b) a) Construct a truth table showing the intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y Use K-maps to find...
Please solve
the problems from 1_5
Digital
system
Complete the following homework problems. Show all work (making sure it is legible) and circle all answers for clarity Problem 1 w3 w4 B w1 a) Determine Boolean functions for intermediate outputs w,w2,w3, and w4 as well as the output signals X and Y. b) Construct a truth table showing the intermediate outputs wl,w2,w3, and w4 as well as the output signals X and Y c) Use K-maps to find simplified expressions...
