a centrifugal clutch is required to transmit a power of 22.5kw at 750rev/min. the shoes are...

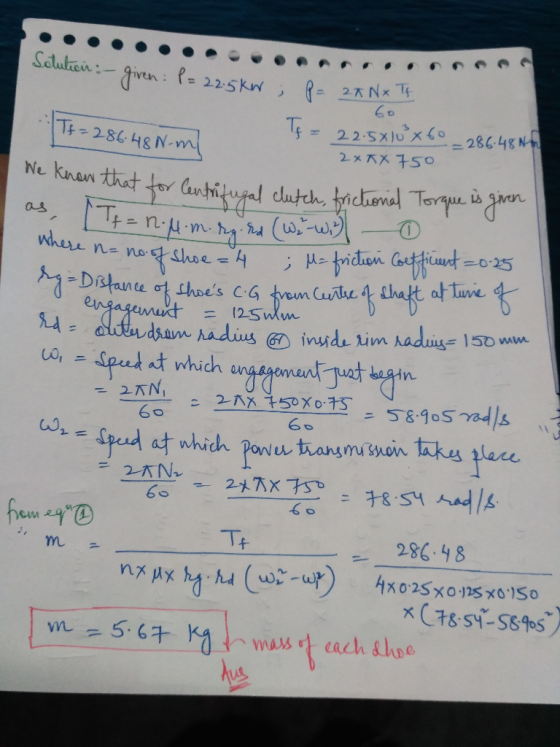

a centrifugal clutch is required to transmit a power of 22.5kw at 750rev/min. the shoes are 4 in number. the speed at which engagement begins is at 75% of the running speed. the inside radius of the rim is 150mm and the coefficient of friction is 0.25. determine the necessary mass of each shoe assuming the center of gravity of the shoes from the shaft is 125mm
Homework Answers
Add Answer to:
a centrifugal clutch is required to transmit a power of 22.5kw
at 750rev/min. the shoes are...
Question 5 A multi-disc friction clutch has to be desıgned to transmıt 75 kW from a motor running at 1440rev/mın The di...
Question 5 A multi-disc friction clutch has to be desıgned to transmıt 75 kW from a motor running at 1440rev/mın The discs are to have an outer diameter of 200 mm and an ınsıde diameter of 150 mm Assume condıtion of uniform wear and that the maximum design pressure is lmited to 150 kPa Assume μ-0 25 (12) 5 1 Determine the necessary end thrust and the necessary number of plates After this clutch (from 5 1) in manufactured it...
Question 4 [25 marks] An electric motor drives a coaxial rotor through a single-plate clutch which...
Question 4 [25 marks] An electric motor drives a coaxial rotor through a single-plate clutch which has two pairs of driving surfaces each 300 mm external and 175 mm internal diameter. The variation of normal pressure with radius is given by a + b/r Pa and the maximum pressure is 150 kPa. The spring force on the system is 500 N. The mass of the motor armature and shaft is 750 kg and its radius of gyration is 240 mm;...
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
summatize the following info and break them into differeng key points. write them in yojr own...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
summarizr the followung info and write them in your own words and break them into different...
summarizr the followung info and write them in your own words and break them into different key points. 6.5 Metering Chamber: 6.5.1 The minimum size of the metering box is governed by the metering area required to obtain a representative test area for the specimen (see 7.2) and for maintenance of reasonable test accuracy. For example, for specimens incorporating air spaces or stud spaces, the metering area shall span an integral number of spaces (see 5.5). The depth of...
Question 5 A multi-disc friction clutch has to be desıgned to transmıt 75 kW from a motor running at 1440rev/mın The discs are to have an outer diameter of 200 mm and an ınsıde diameter of 150 mm Assume condıtion of uniform wear and that the maximum design pressure is lmited to 150 kPa Assume μ-0 25 (12) 5 1 Determine the necessary end thrust and the necessary number of plates After this clutch (from 5 1) in manufactured it...
Question 4 [25 marks] An electric motor drives a coaxial rotor through a single-plate clutch which has two pairs of driving surfaces each 300 mm external and 175 mm internal diameter. The variation of normal pressure with radius is given by a + b/r Pa and the maximum pressure is 150 kPa. The spring force on the system is 500 N. The mass of the motor armature and shaft is 750 kg and its radius of gyration is 240 mm;...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
summatize the following info and break them into differeng key points. write them in yojr own words
apartus
6.1 Introduction—The design of a successful hot box appa- ratus is influenced by many factors. Before beginning the design of an apparatus meeting this standard, the designer shall review the discussion on the limitations and accuracy, Section 13, discussions of the energy flows in a hot box, Annex A2, the metering box wall loss flow, Annex A3, and flanking loss, Annex...
