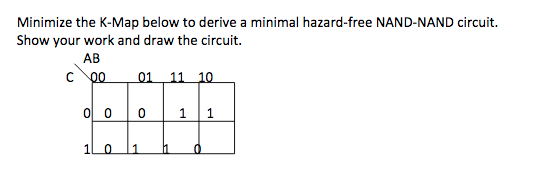

Minimize the K-Map below to derive a minimal hazard-free NAND-NAND circuit. Show your work and draw the circuit. u1 1.1 1 08

engineering   Electrical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

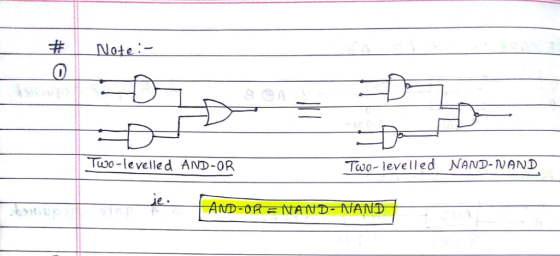

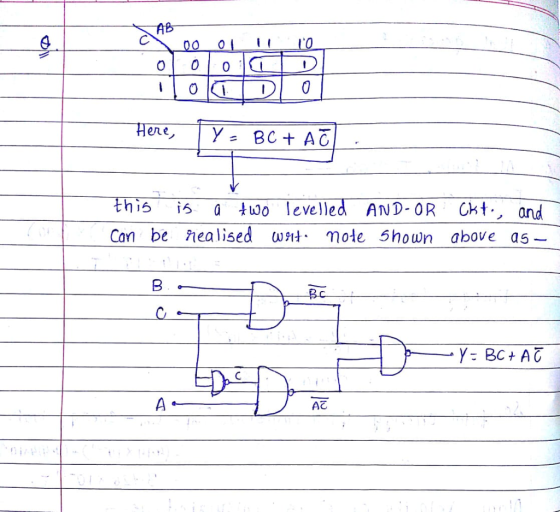

Note :- Two-le velled AND-OR Two- levelled NAND-NANDhis is a れ00 leveled AND-OR Ckt., and can be nea lised mote shown above a5- AC
