Homework Answers
Add Answer to:

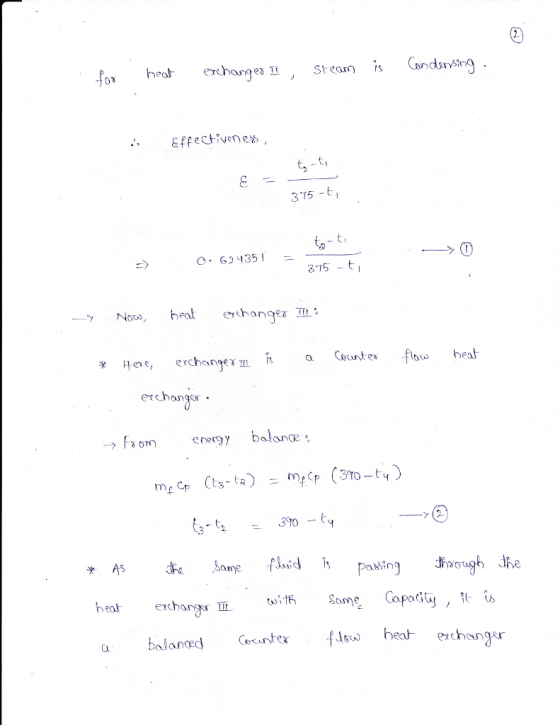

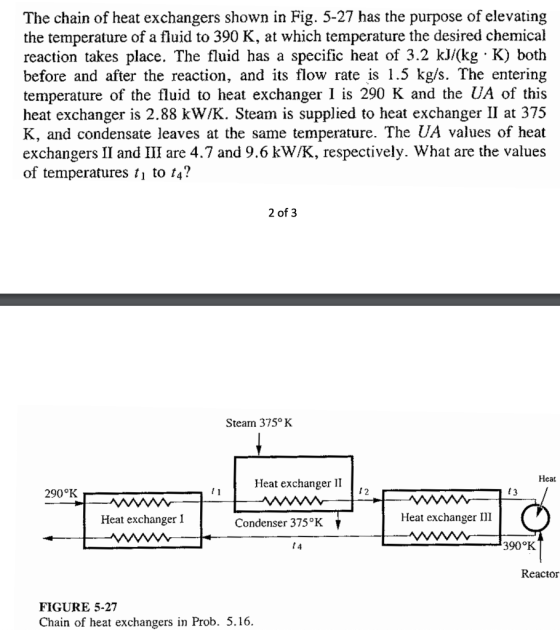

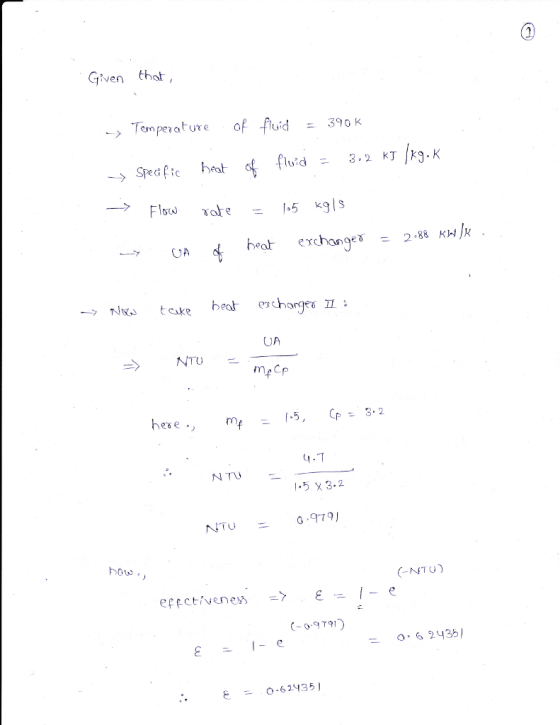

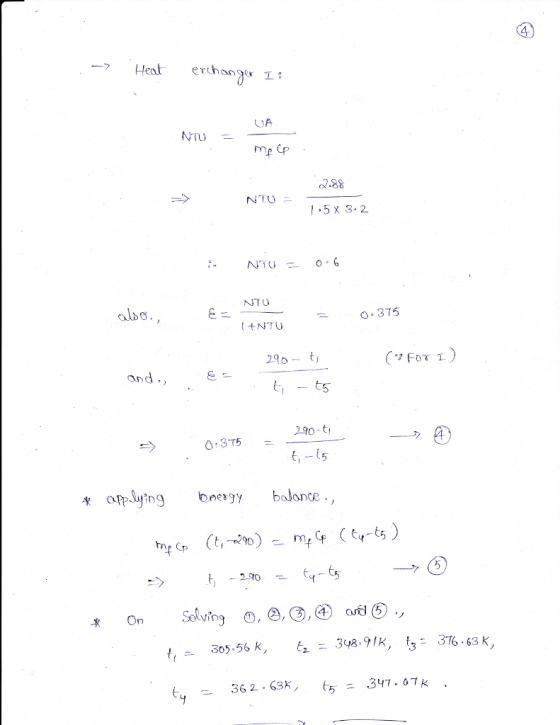

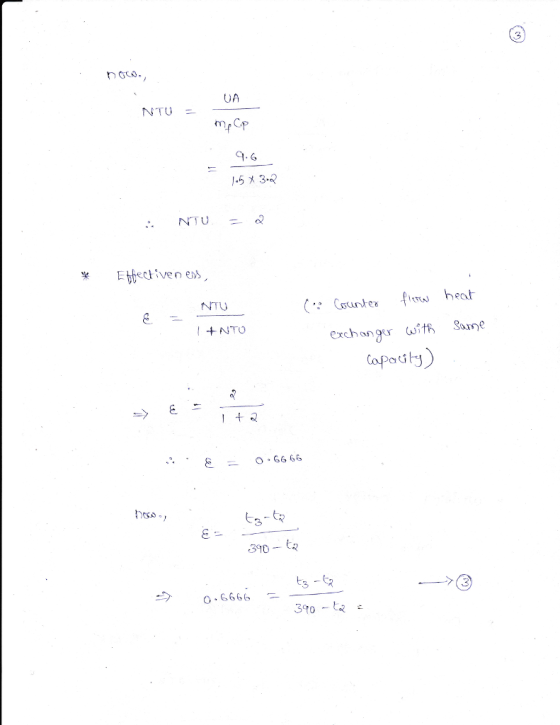

The chain of heat exchangers shown in Fig. 5-27 has the purpose of elevating the temperature...
Question 5 - LMTD Heat Exchangers A 2 shell, 4 tube pass heat exchanger is being...
Question 5 - LMTD Heat Exchangers A 2 shell, 4 tube pass heat exchanger is being used to heat 50 kg/s of a process fluid in the tubes from an inlet temperature of 25°C to a target temperature of 80°C using condensing steam at 150°C. The overall heat transfer coefficient for a clean heat exchanger was U-1500W/m2.°C, however, the design engineer neglected to take into account fouling of the heat exchanger. After 5 years of use, fouling has occurred with...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
PROBLEM #3 (30 points) A shell-and (N 20) is used to heat vegetable oil on the shell side using hot water on tethat side. is Lp- 3.0 m). Each copper tube has dimensions of 15.56-mm ID and 19.05-...
PROBLEM #3 (30 points) A shell-and (N 20) is used to heat vegetable oil on the shell side using hot water on tethat side. is Lp- 3.0 m). Each copper tube has dimensions of 15.56-mm ID and 19.05-mm OD and thermal conductivity of copper is 390 W/m-K. Water at a total flow rate of 3.33 kg/s enters the tubes of the heat exchanger at 360 K and leaves at 300 K The inlet and outlet temperatures of oil are 290...
The figure shows a schematic of a power plant that has two steam turbines. The water...
The figure shows a schematic of a power plant that has two steam turbines. The water (the working fluid for the plant) leaves the high pressure turbine (HPT) as saturated vapour at 1000 [kPa]. Part of this flow is diverted to an insulated heat exchanger, which we hot airstream to create superheated steam that enters the low pressure turbine (LPT). The air mas flow rate is 19.5 k/s and the air temperature drops from 1100 to 6001 as it goes...
Design a heat exchanger for a gas turbine exhaust A paper mill has just purchased a...
Design a heat exchanger for a gas turbine exhaust A paper mill has just purchased a 5.7 MW gas turbine for electrical power generation. To increase the overall plant efficiency and reduce the payback time it has been decided to use the exhaust gases to heat water in a heat exchanger. The company requires 12.7 tonnes/hr of steam at a pressure of 18.9 Bar and at a temperature of 315oC. The temperature and pressure at inlet to the heat exchanger...
It is possible to dissolve this chain. Your material is hot. I want the solution as...
It is possible to dissolve this chain. Your material
is hot. I want the solution as soon as possible, half an hour
(Answer five questions) Note: Take: R.-8.314kJ/kg K. For air c=1.005kJ/kg K & y=1.4 Mc =12kg/kmol, Mo. -32 kg/kmol, Myz =28 kg/kmol, M.,=29 kg/kmol, MH2 =28 kg/kmol i. Q1: A- Answer false or true and discusse the followings: For an adiabatic system d. 20. ii. It is impossible to construct a device that operates in a cycle and produces...
Q1 a) Company A designed a heat pump to supply heat into a library in Canada during...
Q1
a) Company A designed a heat pump to
supply heat into a library in Canada during
winter, so that the library can maintain to be at 20°C. The heat
pump utilizes
12,000 L/min of Refrigerant-134a as the working fluid and absorb
heat from an
industrial water stream. The water stream enters the evaporator at
50°C and exits
at 25°C. The refrigerant enters the evaporator at 10°C with 90%
moisture content
and leaves at 20°C. There is no pressure drop in...
The figure shows a schematic of a power plant that has two steam turbines. The water...
The figure shows a schematic of a power plant that has two steam turbines. The water (the working fluid for the plant) leaves the high pressure turbine (HPT) as saturated vapour at 1000 [kPa]. Part of this flow is diverted to an insulated heat exchanger, which uses a hot air stream to create superheated steam that enters the low pressure turbine (LPT). The air mass flow rate is me=19.5 kg/s) and the air temperature drops from 1100 to 600°Cas it...
Question 5 - LMTD Heat Exchangers A 2 shell, 4 tube pass heat exchanger is being used to heat 50 kg/s of a process fluid in the tubes from an inlet temperature of 25°C to a target temperature of 80°C using condensing steam at 150°C. The overall heat transfer coefficient for a clean heat exchanger was U-1500W/m2.°C, however, the design engineer neglected to take into account fouling of the heat exchanger. After 5 years of use, fouling has occurred with...
Twenty [kw] of heat is to be removed from 375 [k] water flowing at 0.15 [kg/s] into the inner pipe of concentric tube heat exchanger. Cooling water enters the annulus at 290 [k] and leaves at 320 [k] with a flow in the opposite direction of the inner flow. The diameter of the thin- walled inner pipe is 2.5 [cm] a) b) c) Calculate the exit temperature of the hot fluid and the mass flow rate of the cold fluid...
PROBLEM #3 (30 points) A shell-and (N 20) is used to heat vegetable oil on the shell side using hot water on tethat side. is Lp- 3.0 m). Each copper tube has dimensions of 15.56-mm ID and 19.05-mm OD and thermal conductivity of copper is 390 W/m-K. Water at a total flow rate of 3.33 kg/s enters the tubes of the heat exchanger at 360 K and leaves at 300 K The inlet and outlet temperatures of oil are 290...
The figure shows a schematic of a power plant that has two steam turbines. The water (the working fluid for the plant) leaves the high pressure turbine (HPT) as saturated vapour at 1000 [kPa]. Part of this flow is diverted to an insulated heat exchanger, which we hot airstream to create superheated steam that enters the low pressure turbine (LPT). The air mas flow rate is 19.5 k/s and the air temperature drops from 1100 to 6001 as it goes...
It is possible to dissolve this chain. Your material
is hot. I want the solution as soon as possible, half an hour
(Answer five questions) Note: Take: R.-8.314kJ/kg K. For air c=1.005kJ/kg K & y=1.4 Mc =12kg/kmol, Mo. -32 kg/kmol, Myz =28 kg/kmol, M.,=29 kg/kmol, MH2 =28 kg/kmol i. Q1: A- Answer false or true and discusse the followings: For an adiabatic system d. 20. ii. It is impossible to construct a device that operates in a cycle and produces...
Q1
a) Company A designed a heat pump to
supply heat into a library in Canada during
winter, so that the library can maintain to be at 20°C. The heat
pump utilizes
12,000 L/min of Refrigerant-134a as the working fluid and absorb
heat from an
industrial water stream. The water stream enters the evaporator at
50°C and exits
at 25°C. The refrigerant enters the evaporator at 10°C with 90%
moisture content
and leaves at 20°C. There is no pressure drop in...
The figure shows a schematic of a power plant that has two steam turbines. The water (the working fluid for the plant) leaves the high pressure turbine (HPT) as saturated vapour at 1000 [kPa]. Part of this flow is diverted to an insulated heat exchanger, which uses a hot air stream to create superheated steam that enters the low pressure turbine (LPT). The air mass flow rate is me=19.5 kg/s) and the air temperature drops from 1100 to 600°Cas it...
