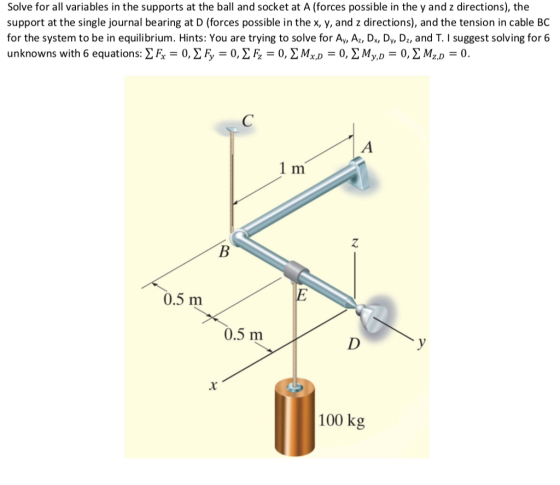

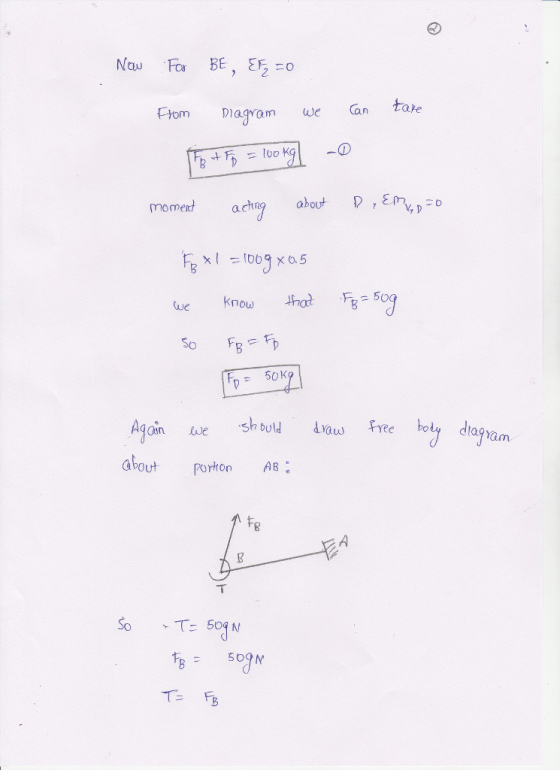

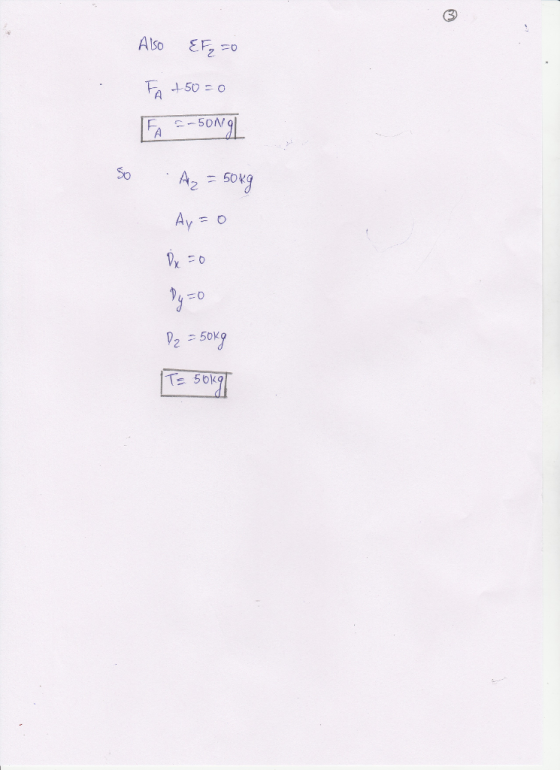

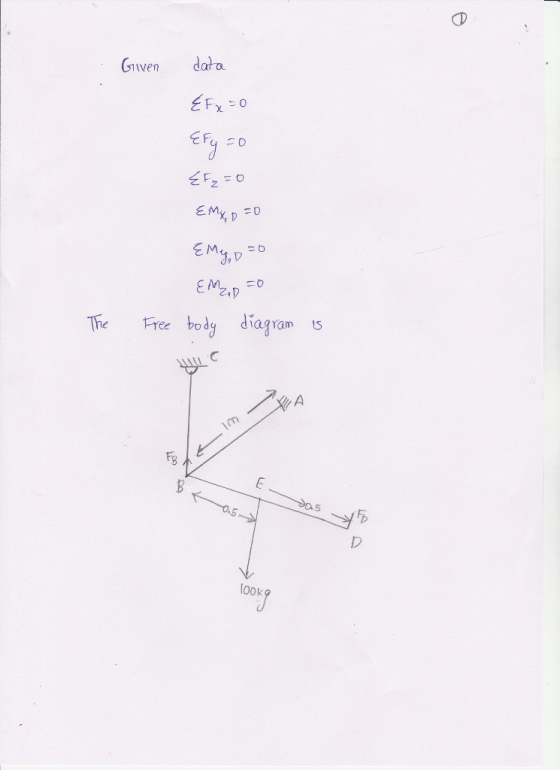

Solve for all variables in the supports at the ball and socket at A (forces possible...
Q. 3 The member is supported by a pin at A (Note: reactions at A are...
Q. 3 The member is supported by a pin at A (Note: reactions at A are Ay, Ax, Az, My, and Mz) and cable BC. If the load at D is 300 lb, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Az, My, and Mz). (2 points) 1 ft, 2 ft B. 2 ft 6 ft ft D
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint...
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
For the space truss shown below, there is a Ball-and-socket joint at A. At C, only...
For the space truss shown below, there is a
Ball-and-socket joint at A. At C, only support reaction is in z
direction and at B, there are support reactions in y and z
directions. A force P=10k kN is applied to joint D. Triangle ABC is
in x-y plane at z=0. For this truss,
(a) Determine the sequence of joints with which the
entire truss can be solved for the member forces and support
reactions using the method of joints....
roblem #3 ( In the Diagram below, a rigid pipe is loaded and supported as shown. Supports at A, B, & C are Spherical Ball Bearings (don't resist moments). Pipe is considered weightless. S...
roblem #3 ( In the Diagram below, a rigid pipe is loaded and supported as shown. Supports at A, B, & C are Spherical Ball Bearings (don't resist moments). Pipe is considered weightless. Solve for the Reacations at A, B and C 450 N 0.4 m 0.4 m Problem #4 Draw the Free Body Diagram with all forces and reactions shown. Point A is supported by a Spherical Ball Bearing. Point c is a Cable. Point D is a ball...
у The diagram shows the all of the forces acting on a body of mass 2.76...
у The diagram shows the all of the forces acting on a body of mass 2.76 kg. The three forces have magnitudes F1 = 67 N, F2 = 22.3 N, and F3 = 72.2 N, with directions as indicted in the diagram, where 0 = 40.3 degrees and p = 29.9 degrees. The dashed lines are parallel to the x and y axes. At 1 = 0, the body is moving at a speed of 5.74 m/s in the positive...
can someone please help me solve this problem? ure < 1 of 1 450N LA 300...
can someone please help me solve this problem?
ure < 1 of 1 450N LA 300 Nm 0.6 m 45 0.4 m 0.8 m B 0.4 m Part A Determine the components of reaction acting at the smooth journal bearing A.(Figure 1) Enter the x, y, and z components of the force separated by commas. IVO AED 0 vec ? A... Ay, Az = N Submit Request Answer Part B Determine the components of reaction acting at the smooth journal...
As shown in the figure below, seven forces all with magnitude |F| = 57 N are applied to an irregularly shaped object.
As shown in the figure below, seven forces all with magnitude |F| = 57 N are applied to an irregularly shaped object. Each force is applied at a different location on the object, indicated by the tail of the arrow; the directions of the forces differ. The distances shown in the diagram have these values: w=7m, h=16 m, and d=12 m.For each force, calculate the z component of the torque due to that force, relative to location A (x to...
Two forces F13=50 N Z230° and F14= 100 N Z200° are acting on links 3 The...
Two forces F13=50 N Z230° and F14= 100 N Z200° are acting on links 3 The free-body diagrams of the moving links are shown in figure Example 5.3. F 50° FA В For the mechanism shown in Fig. 5.30 AA= 22=80, AB=az =100, y C 3 D А) T12 Figure 5.30 20° 013 4 012 0, 14 Aol Bo Х BoB= 24=120, A B = a;= 140, AC=b3 mm. When 612=60°, from kinematic analysis 013=29,980, = 70, BC=80 and BoD=...
As shown in the figure below, seven forces all with magnitude F = 40 N are...
As shown in the figure below, seven forces all with magnitude F = 40 N are applied to an irregularly shaped object. Each force is applied at a different location on the object, indicated by the tail of the arrow; the directions of the forces differ. The distances shown in the diagram have these values: w = 7 m, h = 16 m, and d = 12 m. For each force, calculate the component of the torque due to that...
please help me solve all the question. please. thank you. Question 3. Separation of variables. Consider Laplace's Eq...
please help me solve all the question. please. thank
you.
Question 3. Separation of variables. Consider Laplace's Equation in two dimensions:-+-- (a) Write φ(z y) F(x)G(y) and use separation of variables to get ordinary differential equa- tions for F and CG (b) Consider the rectangular region ((r,y) E R:0 conditions on Φ < a, 0 y b with three boundary 0(x, 0) = 0, D(x, b) = 0, (0,y) = 0 Obtain conditions on F and G on those boundaries...
Q. 3 The member is supported by a pin at A (Note: reactions at A are Ay, Ax, Az, My, and Mz) and cable BC. If the load at D is 300 lb, determine the x, y, and z components of the reaction at A and the tension in cable BC. (Note: possible reactions at A are Ay, Ax, Az, My, and Mz). (2 points) 1 ft, 2 ft B. 2 ft 6 ft ft D
A winch for raising and lowering an 150 lb ball is supported by
a ball-and-socket joint at A and a smooth journal bearing at B, as
shown below. The bearing at B is oriented in such way that it only
provides force support reactions (i.e. no moment supports at
B).
A winch for raising and lowering an 150 lb ball is supported by a ball-and-socket joint at A and a smooth journal bearing at B, as shown below. The bearing...
For the space truss shown below, there is a
Ball-and-socket joint at A. At C, only support reaction is in z
direction and at B, there are support reactions in y and z
directions. A force P=10k kN is applied to joint D. Triangle ABC is
in x-y plane at z=0. For this truss,
(a) Determine the sequence of joints with which the
entire truss can be solved for the member forces and support
reactions using the method of joints....
roblem #3 ( In the Diagram below, a rigid pipe is loaded and supported as shown. Supports at A, B, & C are Spherical Ball Bearings (don't resist moments). Pipe is considered weightless. Solve for the Reacations at A, B and C 450 N 0.4 m 0.4 m Problem #4 Draw the Free Body Diagram with all forces and reactions shown. Point A is supported by a Spherical Ball Bearing. Point c is a Cable. Point D is a ball...
у The diagram shows the all of the forces acting on a body of mass 2.76 kg. The three forces have magnitudes F1 = 67 N, F2 = 22.3 N, and F3 = 72.2 N, with directions as indicted in the diagram, where 0 = 40.3 degrees and p = 29.9 degrees. The dashed lines are parallel to the x and y axes. At 1 = 0, the body is moving at a speed of 5.74 m/s in the positive...
can someone please help me solve this problem?
ure < 1 of 1 450N LA 300 Nm 0.6 m 45 0.4 m 0.8 m B 0.4 m Part A Determine the components of reaction acting at the smooth journal bearing A.(Figure 1) Enter the x, y, and z components of the force separated by commas. IVO AED 0 vec ? A... Ay, Az = N Submit Request Answer Part B Determine the components of reaction acting at the smooth journal...
Two forces F13=50 N Z230° and F14= 100 N Z200° are acting on links 3 The free-body diagrams of the moving links are shown in figure Example 5.3. F 50° FA В For the mechanism shown in Fig. 5.30 AA= 22=80, AB=az =100, y C 3 D А) T12 Figure 5.30 20° 013 4 012 0, 14 Aol Bo Х BoB= 24=120, A B = a;= 140, AC=b3 mm. When 612=60°, from kinematic analysis 013=29,980, = 70, BC=80 and BoD=...
As shown in the figure below, seven forces all with magnitude F = 40 N are applied to an irregularly shaped object. Each force is applied at a different location on the object, indicated by the tail of the arrow; the directions of the forces differ. The distances shown in the diagram have these values: w = 7 m, h = 16 m, and d = 12 m. For each force, calculate the component of the torque due to that...
please help me solve all the question. please. thank
you.
Question 3. Separation of variables. Consider Laplace's Equation in two dimensions:-+-- (a) Write φ(z y) F(x)G(y) and use separation of variables to get ordinary differential equa- tions for F and CG (b) Consider the rectangular region ((r,y) E R:0 conditions on Φ < a, 0 y b with three boundary 0(x, 0) = 0, D(x, b) = 0, (0,y) = 0 Obtain conditions on F and G on those boundaries...
