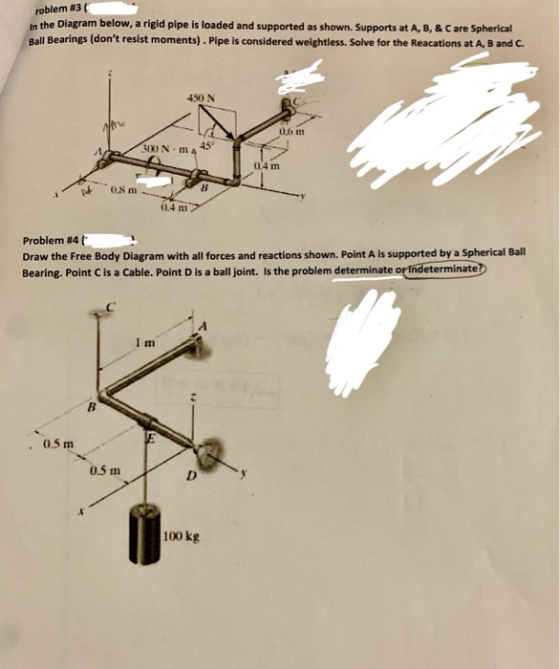

roblem #3 ( In the Diagram below, a rigid pipe is loaded and supported as shown. Supports at A, B, & C are Spherical Ball Bearings (don't resist moments). Pipe is considered weightless. S...

Question

Question

engineering Mechanical-Engineering

Answer 1

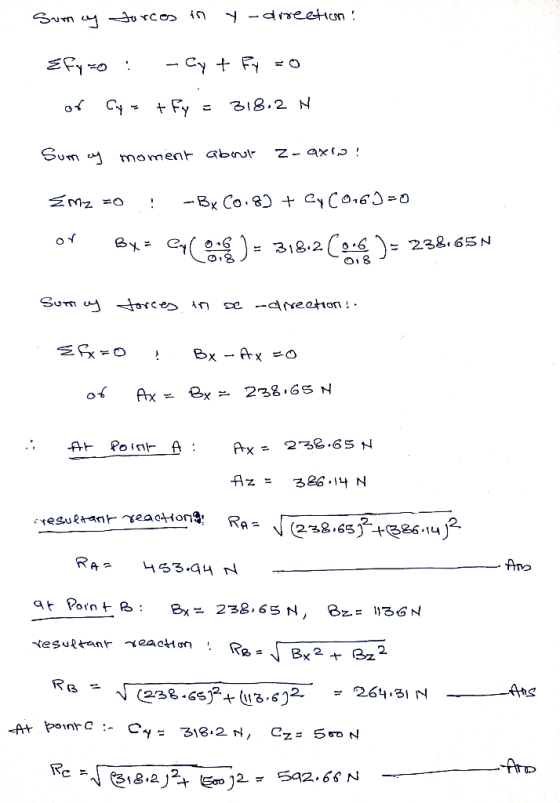

Answer #1

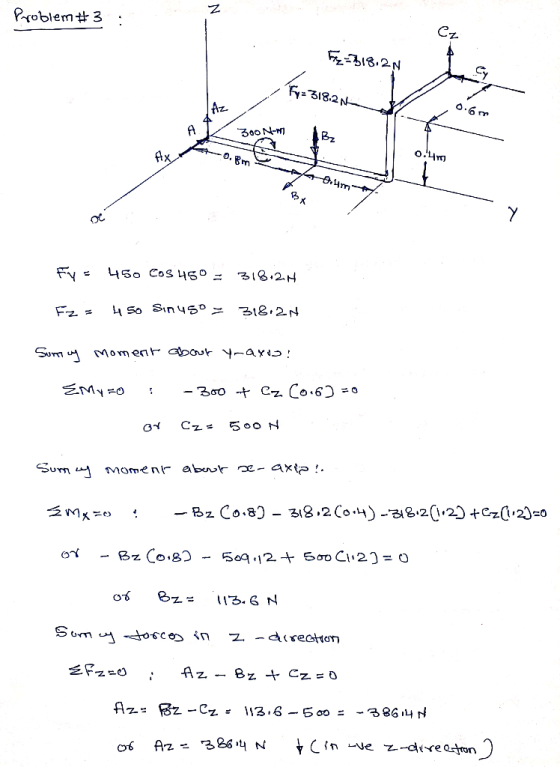

Problem#3 :

Answer 2

Similar Homework Help Questions

The rigid frame shown below is supported by Pin A and Roller C.

The rigid frame shown below is supported by Pin A and Roller C. [Point B is a rigid joint.] The frame supports a uniformly distributed load of 20 kN/m (downward) in Region BC, and a 250 kN point load (downward) located halfway between Pin A and rigid joint B. The modulus of elasticity of the entire frame is E = 200 GPa and the moment of inertia is I = 500 x 106 mm4. Determine the rotation (slope) at Joint...
QUESTION 2 The bent rod OABDE shown in Figure 02 is supported by a ball and...

QUESTION 2 The bent rod OABDE shown in Figure 02 is supported by a ball and socket joint at 0, a radial bearing at D, and cable AF. The rod is subjected to a 200 N load applied at B. The mass of the bent rod can be neglected. The radial bearing E does not support any axial force and moments. For this instant: - a) Draw the free body diagram of the bent rod OABDE. b) Determine the reactions...
Problem 1 The rigid structure shown in the figure below is loaded with a concentric couple...

Problem 1 The rigid structure shown in the figure below is loaded with a concentric couple applied at H of 75 kNm and a concentric horizontal force of 40 kN. A distributed load spans from point D through E with minimum amplitude of 10 kN/m and a maximum of 30 kN/m, respectively. The structure is externally supported by a roller at A, the cable BC and a pin at G. Please do the following: 1. Draw a neat Free Body...

A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the ver...

A 3 m rigid bar AB is supported with a vertical translational spring at A and a pin at B The bar is subjected to a linearly varying distributed load with maximum intensity g Calculate the vertical deformation of the spring if the spring constant is 700 kN/m. (ans: 21.43 mm) 2. A steel cable with a nominal diameter of 25 mm is used in a construction yard to lift a bridge section weighing 38 kN. The cable has an...
