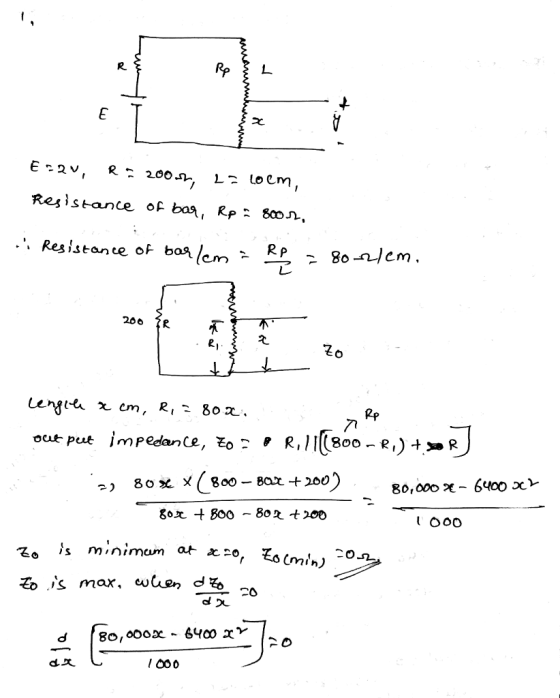

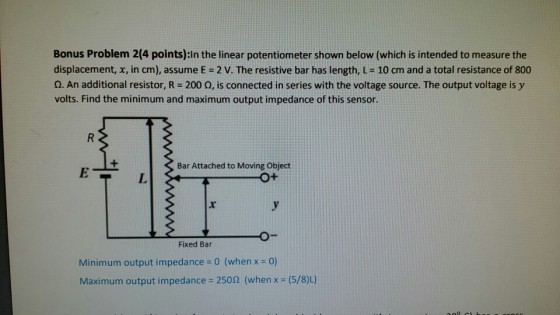

1)
help me with this question. solution is posted. please help step by step of how to get the solution.

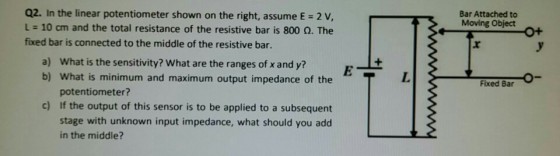

2)

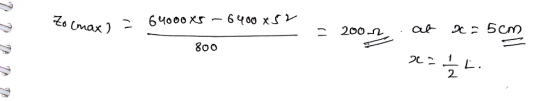

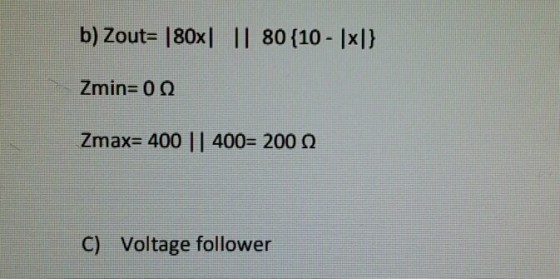

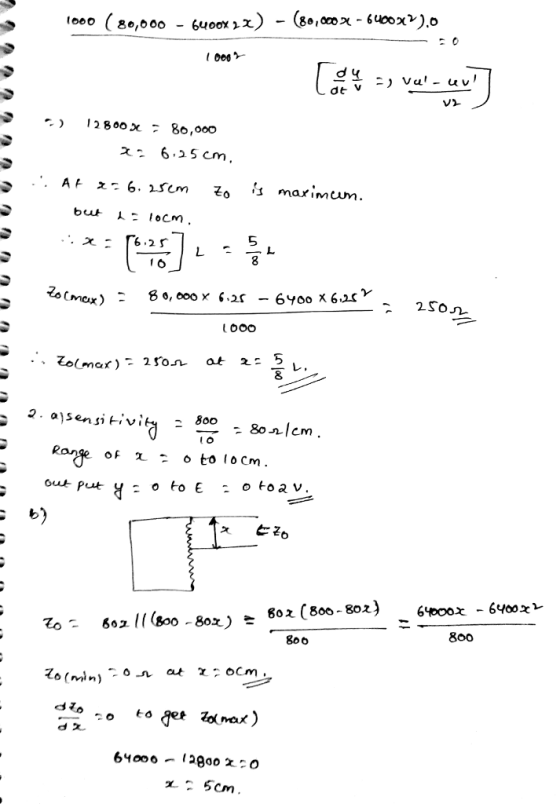

same with the above question also. solution posted. please explain. just part b on the second question. Thanks
Homework Answers
![Resistance of ba, RP: 800 . Resistance of bos 266 Pp R,ון]800-R)+3.RJ pedance, Ło- , d久.](http://img.homeworklib.com/questions/ea8b32b0-bdce-11eb-98e6-1d498d2e631a.png?x-oss-process=image/resize,w_560)
