Question

E= 3.2 x Vỏ XA XT m

The Thanet offshore wind farm consists of 100 turbines, each with a rotor diameter of 90 m (assume to two significant figures). It was estimated to have generated 822 GWh in 2012. If this figure is obtained using the formula given above, determine the mean wind speed assumed for the site.

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

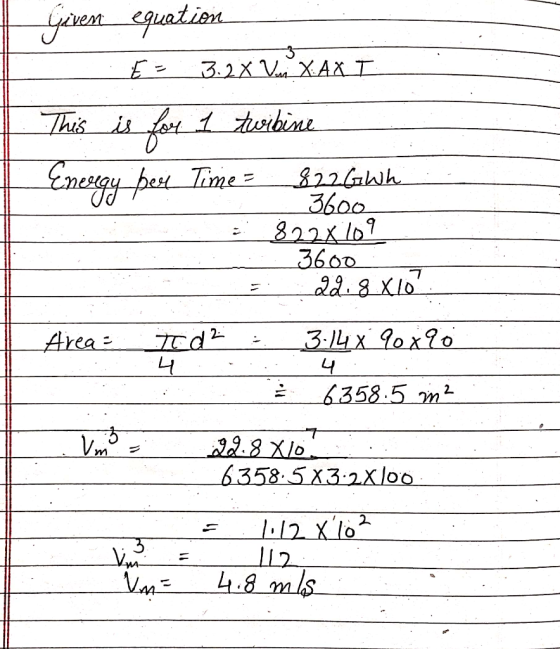

AnswerGiven equation Es 3.28 V XAXI This is for 1 twibine Energy pee Timez_82260Wh 8228109 | 3600 3600 22.8 X10 Area= Td² = 3.14x 9

0 0
