Question

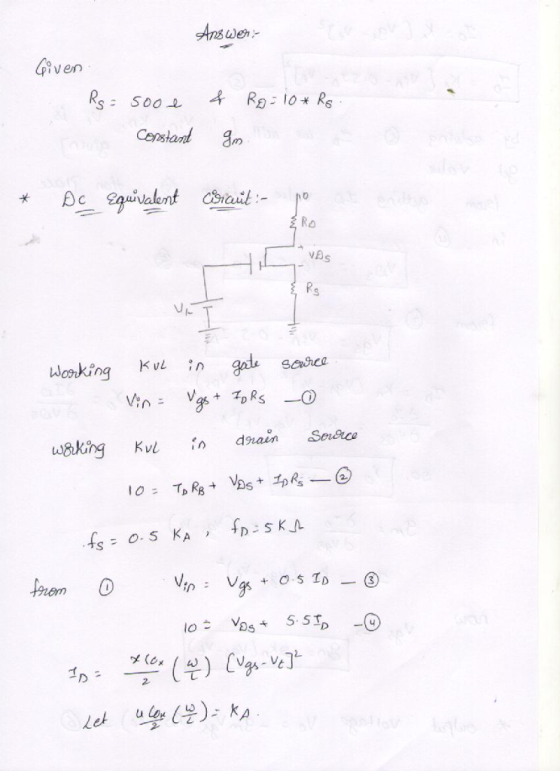

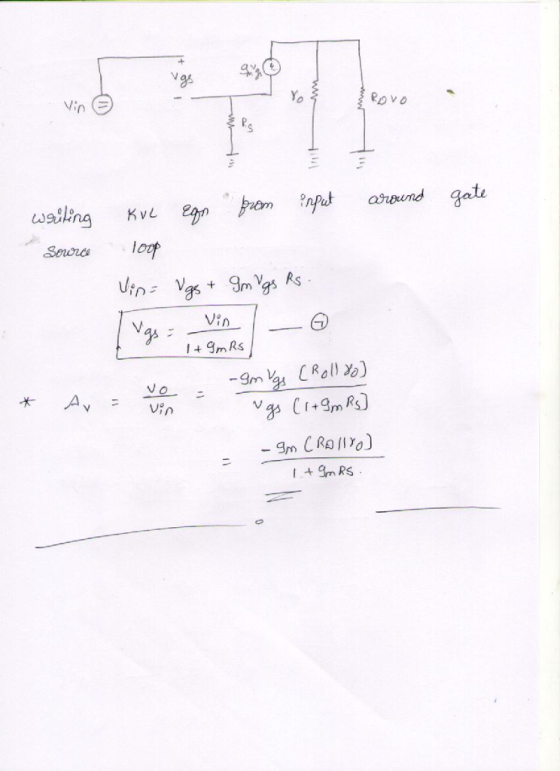

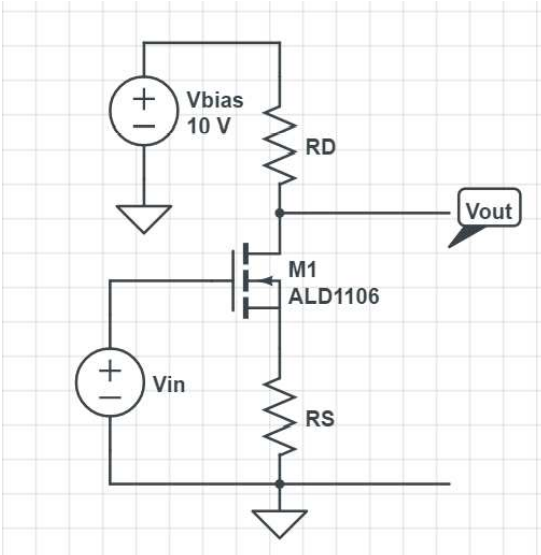

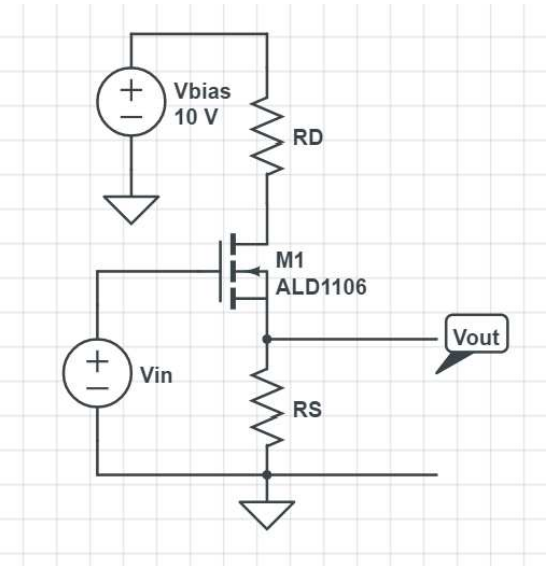

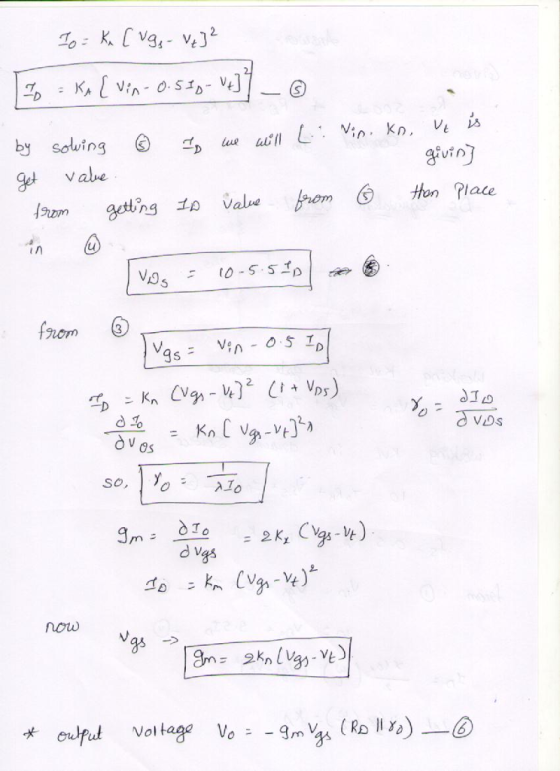

. Preform DC and AC analysis of the amplifer circuits by hand. Assume Rs = 500Ω and RD = 10 * Rs. Assume constant gm Draw the DC Equivalent circuit, calculate VDs, Vas, ID, 9m Tout » Draw the small signal model of the circuit, assume simplest SSM form. . Calculate the gain as a function of gm, RD, and Rs

0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
. Preform DC and AC analysis of the amplifer circuits by hand. Assume Rs = 500Ω...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 3. Design a n-channel JFET C-S amplifier circuit for the following specifications Voltage Gain input resistance...

    3. Design a n-channel JFET C-S amplifier circuit for the following specifications Voltage Gain input resistance Ri-100kΩ Load resistanceR2k2 Given supply voltage VDD 20V Αν--10 Rss is fully bypassed The input source resistance Rs 02, Ipss-8mA and Vp4V Assume RD and R1 but must find R2 and RSS using the given specifications. Find the DC Operating Points values (VGs, ID and VDs) Draw the actual circuit and its ac equivalent circuit

  • BJT DC Operating Points and AC small signal parameters. ) For the BJT circuit below, calculate...

    BJT DC Operating Points and AC small signal parameters. ) For the BJT circuit below, calculate the DC values for Vc, VB. VE, c, IB, and IE. Compute the AC small signal parameters gm, Tz, Te. Assume the transistor p-150, VBE 0.7V, and V 25.9mV 10V Vc Ic VB Is VeE R82 100kΩ RE1 100 RE22k0

  • For the circuit below, NEED HELP ASAP 5. For the amplifier circuit below, i. Find the...

    For the circuit below, NEED HELP ASAP 5. For the amplifier circuit below, i. Find the values for Rs and RD such that ID 2mA and VD SV. Use VDD=10V, Vtn-IV, and kn-1 mA/V2. Rsig = 50Ω. ii. If VA-o, draw the small signal model of the amplifier. iii. Calculate the gm of the MOSFET. iv. Calculate the small signal voltage gain (Vos) VDD 10V 6ΜΩ ID Co SI 4ΜΩ

  • For all BJTs, assume: IVBE,on1-0.7V, β 100, and|VCE,sat-0.1V (use Vr 25mV) For all MOSFETs, assume: I'm|-1V...

    For all BJTs, assume: IVBE,on1-0.7V, β 100, and|VCE,sat-0.1V (use Vr 25mV) For all MOSFETs, assume: I'm|-1V and μ COX-20 V2. Q3: Consider the circuit shown to the right where W- 100. Resistor values are: RG 1M, RD 10kn, Rs 500, R 20k0, and Rs 100k. The capacitors should be assumed short- circuits at the operating frequency of the circuit and Vo -Vss = +3V. a) Calculate the bias point parameters (lo and Vos) for the Rai Ca Rsi transistor and...

  • Q1. For the cascade amplifier circuit shown in Fig (1): a) What are the functions of the capacitors C, C2 and C3? And w...

    Q1. For the cascade amplifier circuit shown in Fig (1): a) What are the functions of the capacitors C, C2 and C3? And what are the functions of the capacitors Cs and CE? b) What are the functions of the resistors RD and Rc? c) Draw the DC biasing circuits for each stage. d) Find loa, VGsa, VDs and gm for the JFET stage (you may use either mathematical or graphical methods) e) Calculate l, Ic, le and Ve for...

  • 1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc...

    1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc collector current, Ic. b. Find the small signal parameters: gm , Γπ and re- c. Draw the small-signal equivalent circuit by replacing the BJT with its hybrid-t model. d. Draw the small-signal equivalent circuit by replacing the BJT with its T model. e. Use the circuit in c or d to determine the voltage gains (Ao, A.) and overall gain (Gv) 5V 1V Vout...

  • ster PageS of Q3:(a) oC Anahrals: For an ampifier shown in figure DC analysis and calculate thev b) Draw ac-equivalent circuit and calculate the gain.(4+3-7 Ra (Hint: Use approximation and neglec...

    ster PageS of Q3:(a) oC Anahrals: For an ampifier shown in figure DC analysis and calculate thev b) Draw ac-equivalent circuit and calculate the gain.(4+3-7 Ra (Hint: Use approximation and neglect Rg in ac equivalent and gain calculation) zo s cy ster PageS of Q3:(a) oC Anahrals: For an ampifier shown in figure DC analysis and calculate thev b) Draw ac-equivalent circuit and calculate the gain.(4+3-7 Ra (Hint: Use approximation and neglect Rg in ac equivalent and gain calculation) zo...

  • Q5 Figure 4 is a common-source circuit. The PMOS transistor parameters are VTP = -0.6V, Kp...

    Q5 Figure 4 is a common-source circuit. The PMOS transistor parameters are VTP = -0.6V, Kp = 1mA/V and 1 = 0. Assume the transistor is biased in saturation such that Ipo = 0.25mA and Vspo = 1.5V. a) Find Rs and RD- b) Draw the small signal ac equivalent circuit. c) Determine the circuit's input resistance (R.), output resistance (Rour) and small signal voltage gain (Av) Figure 4 = 100k2 RO

  • C- Amplifier: Consider figure 3. This circuit uses the JFET to amplify the input signal voltage F...

    C- Amplifier: Consider figure 3. This circuit uses the JFET to amplify the input signal voltage First the dc operation must be set. Use equation 1 and your previous data to calculate the value of Vas required to give I-0.5 mA. Determine the source resistance Rs needed to set this bias. Set up the circuit of figure 3 with your calculated value of Rs. Measure Vo and Vs to determine if your operating conditions are correct. Apply an input voltage...

  • Please solve this Question Figure Q4 shows a common-source amplifier. Construct the ac equivalent circuit, then apply M...

    Please solve this Question Figure Q4 shows a common-source amplifier. Construct the ac equivalent circuit, then apply Miller's Theorem and hence show that the voltage gain is given as: where J-is the voltage gain bandwidth. R, = RD //RL and C-C,, + (I + g.Rjcgd」 State clearly any approximations or assumptions used in your analysis. The parameters above are defined as follows: gm is the transistor transconductance, Ce and Cet are the internal capacitances between the gate/source and gate/drain respectively...
