Question

1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc collector current, Ic. b. Find the small signal parameters: gm , Γπ and re- c. Draw the small-signal equivalent circuit by replacing the BJT with its hybrid-t model. d. Draw the small-signal equivalent circuit by replacing the BJT with its T model. e. Use the circuit in c or d to determine the voltage gains (Ao, A.) and overall gain (Gv) 5V 1V Vout 5V

0 0
Add a comment Improve this question Transcribed image text
Answer #1

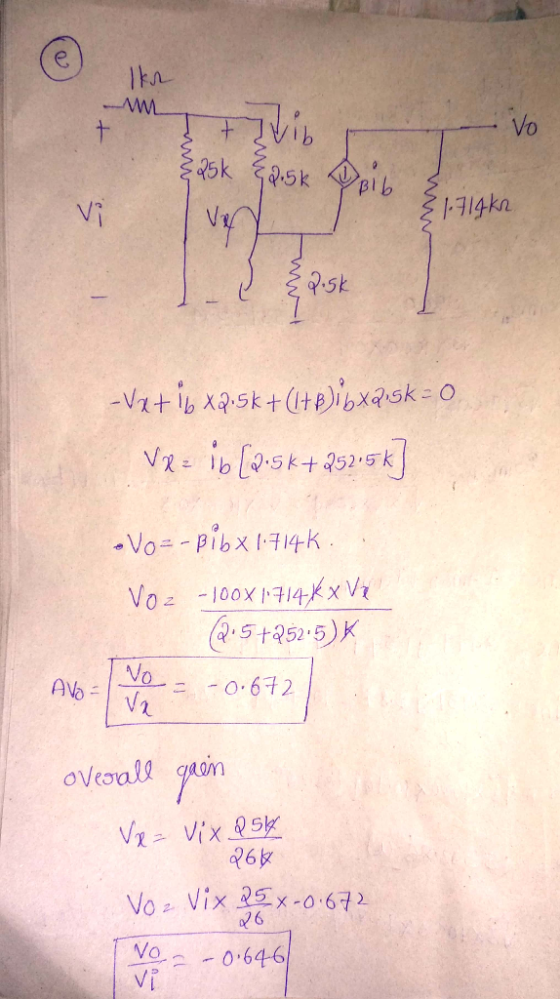

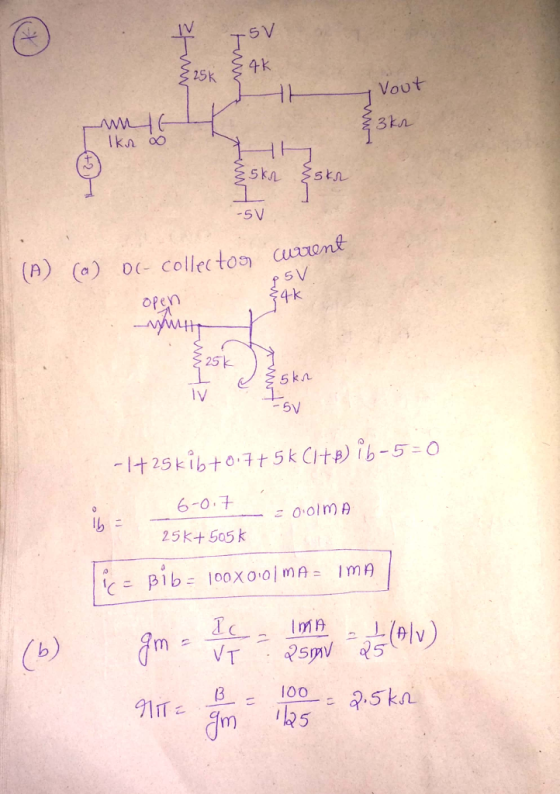

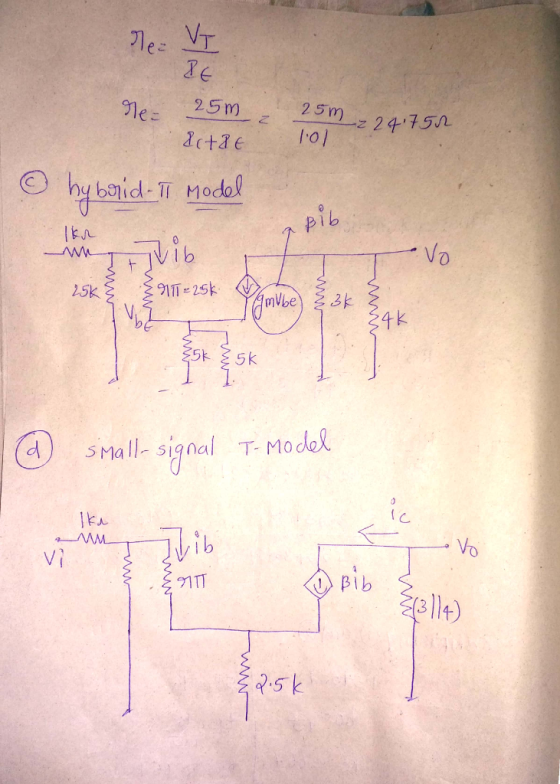

4k 25k Vout kn oo -5 V (n) (a) oc collec tos cucront 5 V 4-k oPen 25k -5V 6-0. こ0.01mA 25k+ 505 k m) 5I b Vo 2.5t oVeall on 068 6 Vo0 646

Add a comment
Know the answer?
Add Answer to:
1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
