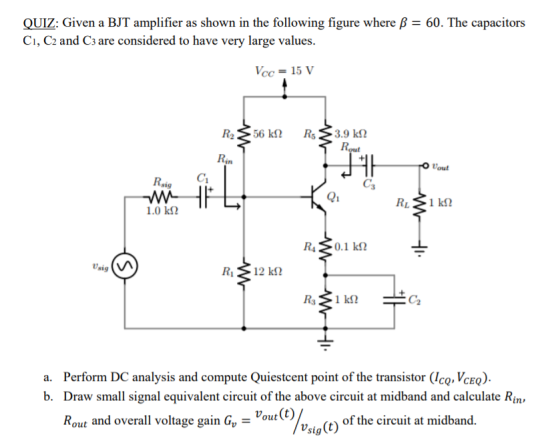

Given a BJT amplifier as shown in the following figure where ? = 60. The capacitors C1, C2 and C3 are considered to have very large values.
Given a BJT amplifier as shown in the following figure where ? = 60. The capacitors C1, C2 and C3 are considered to have very large values.
a. Perform DC analysis and compute Quiestcent point of the transistor (Icq, Vceq). b. Draw small signal equivalent circuit of the above circuit at midband and calculate Rout and overall voltage gain Gv = Vout(t)⁄Vsig(t) of the circuit at midband.
Homework Answers
Request Answer!
We need at least 9 more requests to produce the answer.
1 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
Given a BJT amplifier as shown in the following figure where ? = 60. The capacitors C1, C2 and C3 are considered to have very large values.
