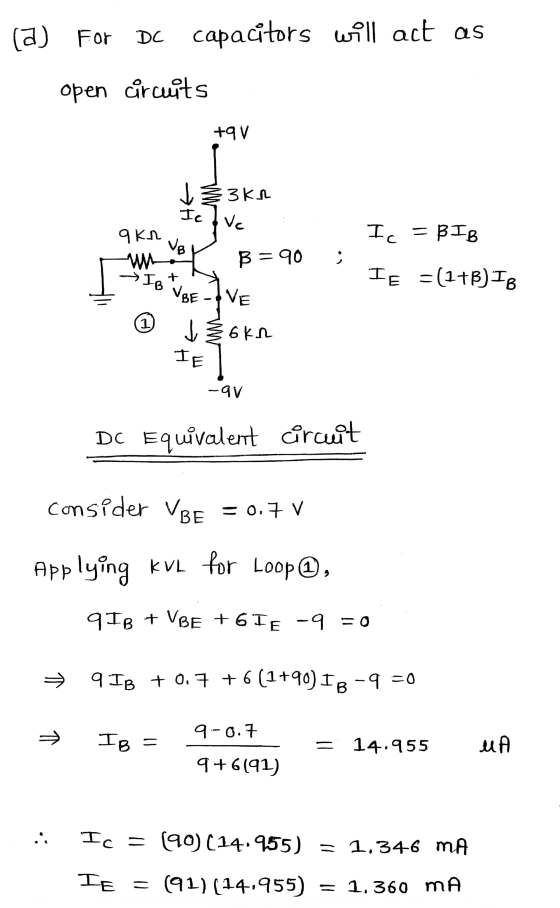

The BJT amplifier circuit in the figure below has β = 90. Use VT = 25 mV
a- Draw the DC equivalent circuit and calculate IC.

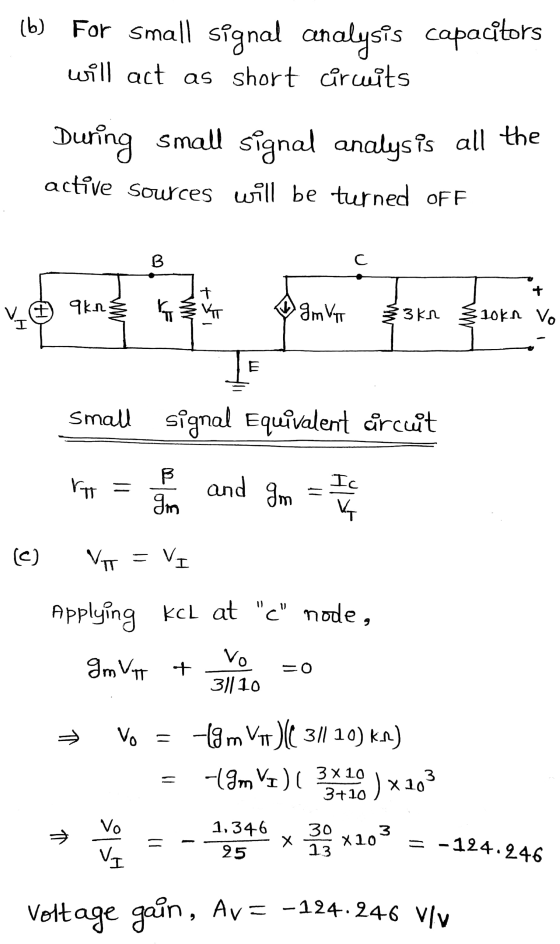

b- Draw the small signal equivalent circuit and calculate the small signal parameters.
c- Find the voltage gain
Homework Answers
Add Answer to:
The BJT amplifier circuit in the figure below has β = 90. Use VT
= 25...
1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc...
1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc collector current, Ic. b. Find the small signal parameters: gm , Γπ and re- c. Draw the small-signal equivalent circuit by replacing the BJT with its hybrid-t model. d. Draw the small-signal equivalent circuit by replacing the BJT with its T model. e. Use the circuit in c or d to determine the voltage gains (Ao, A.) and overall gain (Gv) 5V 1V Vout...
The BJTs in the circuit below has the same β = 90 and the same collector...
The BJTs in the circuit below has the same β = 90 and the same
collector current. Assume I = 1.9 mA, RC=900 Ω, and use VT = 25
mV.
a- What is the configuration of each stage of the amplifier?
Explain and add to the figure below the input and the output of
each stage.
b- Draw the small signal equivalent circuit and find the small
signal parameters.
c- Find the voltage gain of this amplifier
Vcc Rc Vo...
The MOS amplifier circuit below has Kn = 1.9 mA/V2 , ID = 0.4 mA and...
The MOS amplifier circuit below has Kn = 1.9 mA/V2 , ID = 0.4 mA
and and λ = 0.
a- Calculate the transconductance of this MOSFET.
b- Find the voltage gain of this amplifier.
9V 5 kΩ 8. Ο υο 2 ΚΩ Μ || Ο, Ο 10 ΚΩ -9 V
please answer this ASAP Answer the following questions for the below BJT amplifier circuit. Assume capacitors...
please answer this ASAP
Answer the following questions for the below BJT amplifier circuit. Assume capacitors are short in the signal circuit. Use Vr 25 mV,B = 100, Vpo = 0.7 V, and Ignore the early effect in the bias and signal circuits Find the Bias parameters of the amplifier circuit a) b) Find the small signal parameters of the amplifier. c) Draw the small signal equivalent circuit. Find the open loop voltage gain (Ayo), voltage gain (A,), total circuit...
6.5 BI C2 Cl sig in 0 Design the bias circuit of the CE amplifier shown...
6.5 BI C2 Cl sig in 0 Design the bias circuit of the CE amplifier shown to obtain IE= 0.5 mA and Vc= +6 V. Design for a dc voltage at the base of 5 V and a current through RB2 of 50 μΑ. Let Vcc-+15 V, β-100, and VBE 0.7 V. a) Specify the values of RBi, RB2, RE, and Rc b) Also give the values of the BJT small-signal parameters gm, rr , and ro at the bias...
Problem 2: The circuit shown is the AC equivalent circuit of a CC amplifier. The parameters...
Problem 2: The circuit shown is the AC equivalent circuit of a CC amplifier. The parameters for the BJI are β-100, r.-2.5 KOhms, VT-25 mV, and Va very large. A) Find the input impedance Rin and the output impedance Rout as indicated. B) Find the voltage gain A. /vC) Find Ic, the DC biasing current? RE2.5 P,
A CE amplifier utilizes a BJT with β = 100 biased at IC = 0.5 mA;...
A CE amplifier utilizes a BJT with β = 100 biased at IC = 0.5 mA; it has a collector resistance RC = 10 kΩ. Find Rin, Ro, and Avo. If the amplifier is fed with a signal source having a resistance of 10 kΩ, and a load resistance RL =10 kΩ is connected to the output terminal, find the resulting Av and Gv. If the peak voltage of the sine wave appearing between base and emitter is to be...
slove please Name/Date: 2. Given the npa BJT common emitnter amplifier circuit in Figure 2, assume e given below, and determine the following a) [DC Analysis] Find: α-- -h" V. Va and VCE Use ab...
slove please
Name/Date: 2. Given the npa BJT common emitnter amplifier circuit in Figure 2, assume e given below, and determine the following a) [DC Analysis] Find: α-- -h" V. Va and VCE Use above answers to confirm active mode; state the bias (i.e. FB or RB)criteria equations, and the values: V. BE- b) [Small Signal Parameters) Find cSmall Signal Model) Use x-model; draw the complete small signal equivalent circuit below. d)[Small Signal Analysis] Find the following values: R R_...
Given a BJT amplifier as shown in the following figure where ? = 60. The capacitors C1, C2 and C3 are considered to have very large values.
Given a BJT amplifier as shown in the following figure where ? = 60. The capacitors
C1, C2 and C3 are considered to have very large values.a. Perform DC analysis and compute Quiestcent point of the transistor (Icq, Vceq).
b. Draw small signal equivalent circuit of the above circuit at midband and calculate Rout and overall voltage gain Gv =
Vout(t)⁄Vsig(t)
of the circuit at midband.
BJT DC Operating Points and AC small signal parameters. ) For the BJT circuit below, calculate...
BJT DC Operating Points and AC small signal parameters. ) For the BJT circuit below, calculate the DC values for Vc, VB. VE, c, IB, and IE. Compute the AC small signal parameters gm, Tz, Te. Assume the transistor p-150, VBE 0.7V, and V 25.9mV 10V Vc Ic VB Is VeE R82 100kΩ RE1 100 RE22k0
1. Problem 1: For the circuit below, where β-100 and VT 25mV a. Find the dc collector current, Ic. b. Find the small signal parameters: gm , Γπ and re- c. Draw the small-signal equivalent circuit by replacing the BJT with its hybrid-t model. d. Draw the small-signal equivalent circuit by replacing the BJT with its T model. e. Use the circuit in c or d to determine the voltage gains (Ao, A.) and overall gain (Gv) 5V 1V Vout...
The BJTs in the circuit below has the same β = 90 and the same
collector current. Assume I = 1.9 mA, RC=900 Ω, and use VT = 25
mV.
a- What is the configuration of each stage of the amplifier?
Explain and add to the figure below the input and the output of
each stage.
b- Draw the small signal equivalent circuit and find the small
signal parameters.
c- Find the voltage gain of this amplifier
Vcc Rc Vo...
The MOS amplifier circuit below has Kn = 1.9 mA/V2 , ID = 0.4 mA
and and λ = 0.
a- Calculate the transconductance of this MOSFET.
b- Find the voltage gain of this amplifier.
9V 5 kΩ 8. Ο υο 2 ΚΩ Μ || Ο, Ο 10 ΚΩ -9 V
please answer this ASAP
Answer the following questions for the below BJT amplifier circuit. Assume capacitors are short in the signal circuit. Use Vr 25 mV,B = 100, Vpo = 0.7 V, and Ignore the early effect in the bias and signal circuits Find the Bias parameters of the amplifier circuit a) b) Find the small signal parameters of the amplifier. c) Draw the small signal equivalent circuit. Find the open loop voltage gain (Ayo), voltage gain (A,), total circuit...
6.5 BI C2 Cl sig in 0 Design the bias circuit of the CE amplifier shown to obtain IE= 0.5 mA and Vc= +6 V. Design for a dc voltage at the base of 5 V and a current through RB2 of 50 μΑ. Let Vcc-+15 V, β-100, and VBE 0.7 V. a) Specify the values of RBi, RB2, RE, and Rc b) Also give the values of the BJT small-signal parameters gm, rr , and ro at the bias...
Problem 2: The circuit shown is the AC equivalent circuit of a CC amplifier. The parameters for the BJI are β-100, r.-2.5 KOhms, VT-25 mV, and Va very large. A) Find the input impedance Rin and the output impedance Rout as indicated. B) Find the voltage gain A. /vC) Find Ic, the DC biasing current? RE2.5 P,
slove please
Name/Date: 2. Given the npa BJT common emitnter amplifier circuit in Figure 2, assume e given below, and determine the following a) [DC Analysis] Find: α-- -h" V. Va and VCE Use above answers to confirm active mode; state the bias (i.e. FB or RB)criteria equations, and the values: V. BE- b) [Small Signal Parameters) Find cSmall Signal Model) Use x-model; draw the complete small signal equivalent circuit below. d)[Small Signal Analysis] Find the following values: R R_...
BJT DC Operating Points and AC small signal parameters. ) For the BJT circuit below, calculate the DC values for Vc, VB. VE, c, IB, and IE. Compute the AC small signal parameters gm, Tz, Te. Assume the transistor p-150, VBE 0.7V, and V 25.9mV 10V Vc Ic VB Is VeE R82 100kΩ RE1 100 RE22k0
