Please explain, thanks ! ne A solid truncated cone is made of a material of resistivity...

Question

Question

ne A solid truncated cone is made of a material of Please explain, thanks !

science physics

Answer 1

Answer #1

The resistance of this cone can be found by integration.

Let us consider a thin disk of radius r at a distance x from the right hand. Then from the geometry -

(b-r)/x = (b-a)/h

Solve for radius of disk, r = (a-b)x/h + b

Now, as we know, resistance, R = rho*l/A

Where, l is the length of the conductor and A is the area of cross-section.

The contribution to the resistance from the disk having a thickness dy is

dR = rho*dx/pi*r^2

Now putting the value of r from above and integrating it from o to h

We get -

R = (rho*h)/(pi*a*b)

Putting the values given in the question -

R = (3.9*1.29)/(3.14*0.32*0.69) = 7.26 Ohm

Answer 2

Similar Homework Help Questions

4. a) A solid truncated cone with smaller radius a and larger radius b, height h, and Determine the moment of inertia of the truncated cone in terms of a,b.p and central axis. 8 pts h when rotate...

4. a) A solid truncated cone with smaller radius a and larger radius b, height h, and Determine the moment of inertia of the truncated cone in terms of a,b.p and central axis. 8 pts h when rotated about its b) A bullet of with a mass-m,is fired into the cone with a speed v, in the z direction. The bullet a +b above the central axis of the cone and lodges in the cone at the enters the cone...
A wire is made of a material with a resistivity of 6.56847 × 10−8 Ω ·...

A wire is made of a material with a resistivity of 6.56847 × 10−8 Ω · m. It has length 4.63161 m and diameter 0.76384 mm. What is the resistance of the wire? Answer in units of Ω.
A rectangular loop made of a material with a measured resistivity 13 μΩcm has a height...

A rectangular loop made of a material with a measured resistivity 13 μΩcm has a height 59 cm and a width 4.3 cm and a cross-sectional diameter of 1.2 mm. The wire moves with a speed 1.6 m/s parallel its width and perpendicular a magnetic field of strength 43 mT that it enters. (a) What is the magnitude of the voltage induced into the wire? mV (b) What is the resistance of the wire? Ω (c) What is the magnitude...

Problem 7 A 46.0-g sample of a conducting material is all that is available. The resistivity...

Problem 7 A 46.0-g sample of a conducting material is all that is available. The resistivity of the material is measured to be 13.0 X 1080 m, and the density is 7.71 g/cm. The material is to be shaped into a solid cylindrical wire that has a total resistance of 1.500 (a) What length of wire is required? (b) What must be the diameter of the wire? Express your answer in millimeters.
please do all parts a,b,c,d,e,f and g A wire is made of Tungsten with resistivity of...

please do all parts a,b,c,d,e,f and g A wire is made of Tungsten with resistivity of 5.6 x 10-8 (0.m), length of 120 (m) and circular cross section area, also it has a resistance of 300 (0). What is the radius of the wire? BY What is the conductivity of this wire? We connect two ends of this wire to a battery and a current density of 0.002 (A/m”) start flowing in the circuit, what is the voltage of the...
Please Show steps, Thanks in advance :) 1. A solid sphere with a diameter of 120...

Please Show steps, Thanks in advance :) 1. A solid sphere with a diameter of 120 cm has a total positive charge of 200 p/C uniformly distributed throughout its volume. (a) Calculate the intensity of the electric ficld at the center of the sphere. (b) Calculate the clectric field at a distance 10 em from the center of the sphere. (c) Calculate the electric field at a distance 100 em from the center of the sphere. (d) Where is the...

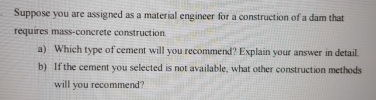

Please explain it briefly Thanks Suppose you are assigned as a material engineer for a construction...
