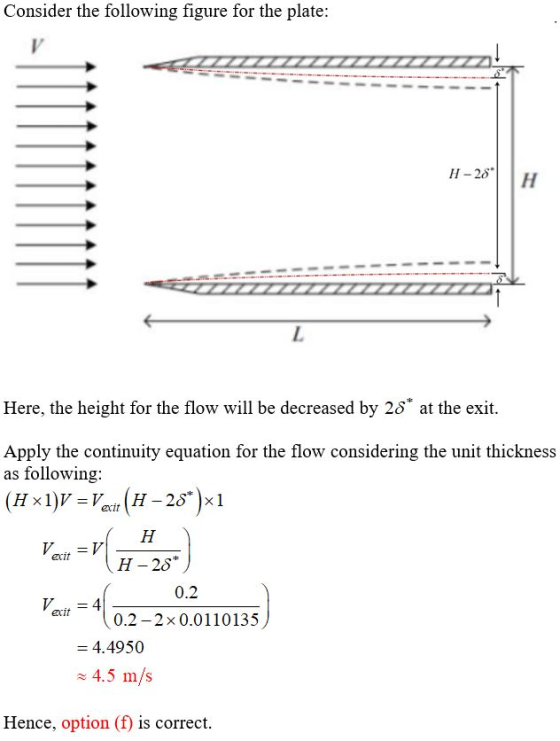

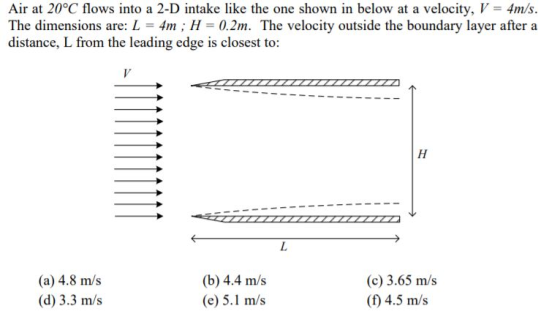

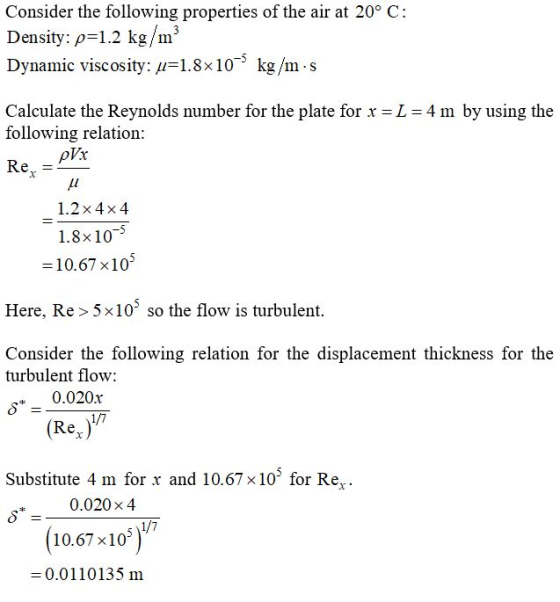

Air at 20°C flows into a 2-D intake like the one shown in below at a...
Air at a temperature of 300 K flows over one side of a flat plate of...
Air at a temperature of 300 K flows over one side of a flat plate of width 1 m at a velocity of 20 m/s. The plate has a constant surface temperature of 350 K. Assume Re(x,c)=5x10^5. a) What is the velocity boundary layer thickness at the end of the plate if L=0.25 m? What if L=1 m? b) Calculate the drag on the plate if L=0.25 m. What is the drag if L=1 m? c) Find the heat transfer...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux specified as 20 WImfor 0 <x < 15 cm 10 W/mo 15 cm. Derive the variation of wall temperature with the distance x from the leading edge in the laminar boundary layer region and evaluate the wall temperature numerically at 30 cm.
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s...
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s flows past a smooth thin plate which is 3-m wide and 10-m long in the flow direction. turbulent boundary layer from the leading edge determine: (a) the boundary layer thickness 6 m from the leading edge (b) the drag coefficient and drag force exerted by the fluid on the thin plate Take density 1.2 kg/m3 and kinematic viscosity as 1.49 x 10-s m'/s: (12p)...
Required information Air at 25°C and 1 atm is flowing over a long flat plate with...
Required information Air at 25°C and 1 atm is flowing over a long flat plate with a velocity of 7 m/s. The density and kinematic viscosity of air at 1 atm and 25°C are p= 1.184 kg/m3 and V = 1.562x10-5 m2/s. Calculate the distance from the leading edge of the plate where the flow becomes turbulent. The distance from the leading edge of the plate is m. Required information Air at 25°C and 1 atm is flowing over a...
Problem 1: In an experiment, Mercury at film temperature of 127 C flows over a flat...
Problem 1: In an experiment, Mercury at film temperature of 127 C flows over a flat plate of length 500 mm and width of 20 mm. Results reveal that the velocity boundary layer thickness at the distance of 5 mm from the leading edge is 0.4 pim, and also th convection heat transfer coefficients in the laminar and turbulent regions (Rex.-2 x 10) take the form of GX İsit where x is measured in meters from the leading edge of...
Problem #3 Air flows over a flat plate at 4 m/s. An approximation for the x...
Problem #3 Air flows over a flat plate at 4 m/s. An approximation for the x component of velocity in the in- compressible laminar boundary layer is a sinusoidal variation from u-0 at the surface (y-0) to the freestream velocity, U, at the boundary-layer edge (y-5). The equation for the profile is u-Usin( %), where cVx and c is a constant. The boundary layer is 9 mm thick 1 m from the edge of the plate. (a) Predict the boundary-layer...
Problem 4 Air at 100 C flows across a thin, flat plate of subliming naphthalene that...
Problem 4 Air at 100 C flows across a thin, flat plate of subliming naphthalene that is 3.4 m long. The Reynolds number at the trailing edge of the plate is at the upper limit for a laminar boundary layer (Re 5e5). Estimate: (a) the average rate of sublimation in kmol/s*m2; and (b) the local rate of sublimation 0.5 m from the leading edge. Vapor pressure of naphthalene = 10 torr viscosity of air 0.0215 cP; molar density of air...
Question 7 Boundary Layers (8 marks) Air at 20°C flows at 9 m/s past a thin...
Question 7 Boundary Layers (8 marks) Air at 20°C flows at 9 m/s past a thin flat plate whose length is 2 m and width is 1.5 m. Determine the total drag on the plate. (5 marks) a) b) What is the boundary layer thickness at the trailing edge? (3 marks)
Air is flowing over a long flat plate with a velocity of 3 m/s. The density...
Air is flowing over a long flat plate with a velocity of 3 m/s. The density is 1.127 kg/mº, and the dynamic viscosity is 1.918-10-kg/m s. The hydrodynamic boundary layer thickness at a distance 0.3 m from the leading edge is: 0 6.41 mm 52,883 mm 5.85 mm 3.22 mm None of the above
Air flows with a velocity of 20 m/s over a flat plate of length 2 m....
Air flows with a velocity of 20 m/s over a flat plate of length 2 m. The air properties are k = 0.030 W/mK, V = 20.92 x 10-6 m/s, Pr=0.700. a. What type(s) of flow (laminar/turbulent) exist on this plate? b. If the following relations are given for the laminar and turbulent local convection coefficients over the plate, haminar (x) = 20 houwbudemo (x) = .52 where x is the distance from the plate leading edge. Find the average...
Air at atmospheric pressure and 20 °C flows over a plate with the surface heat flux specified as 20 WImfor 0 <x < 15 cm 10 W/mo 15 cm. Derive the variation of wall temperature with the distance x from the leading edge in the laminar boundary layer region and evaluate the wall temperature numerically at 30 cm.
Problem No-3: Air at 20 c(p-1.21kg/mH-38x107 kg.m/s) and with a free stream velocity o 40 m/s flows past a smooth thin plate which is 3-m wide and 10-m long in the flow direction. turbulent boundary layer from the leading edge determine: (a) the boundary layer thickness 6 m from the leading edge (b) the drag coefficient and drag force exerted by the fluid on the thin plate Take density 1.2 kg/m3 and kinematic viscosity as 1.49 x 10-s m'/s: (12p)...
Required information Air at 25°C and 1 atm is flowing over a long flat plate with a velocity of 7 m/s. The density and kinematic viscosity of air at 1 atm and 25°C are p= 1.184 kg/m3 and V = 1.562x10-5 m2/s. Calculate the distance from the leading edge of the plate where the flow becomes turbulent. The distance from the leading edge of the plate is m. Required information Air at 25°C and 1 atm is flowing over a...
Problem 1: In an experiment, Mercury at film temperature of 127 C flows over a flat plate of length 500 mm and width of 20 mm. Results reveal that the velocity boundary layer thickness at the distance of 5 mm from the leading edge is 0.4 pim, and also th convection heat transfer coefficients in the laminar and turbulent regions (Rex.-2 x 10) take the form of GX İsit where x is measured in meters from the leading edge of...
Problem #3 Air flows over a flat plate at 4 m/s. An approximation for the x component of velocity in the in- compressible laminar boundary layer is a sinusoidal variation from u-0 at the surface (y-0) to the freestream velocity, U, at the boundary-layer edge (y-5). The equation for the profile is u-Usin( %), where cVx and c is a constant. The boundary layer is 9 mm thick 1 m from the edge of the plate. (a) Predict the boundary-layer...
Problem 4 Air at 100 C flows across a thin, flat plate of subliming naphthalene that is 3.4 m long. The Reynolds number at the trailing edge of the plate is at the upper limit for a laminar boundary layer (Re 5e5). Estimate: (a) the average rate of sublimation in kmol/s*m2; and (b) the local rate of sublimation 0.5 m from the leading edge. Vapor pressure of naphthalene = 10 torr viscosity of air 0.0215 cP; molar density of air...
Question 7 Boundary Layers (8 marks) Air at 20°C flows at 9 m/s past a thin flat plate whose length is 2 m and width is 1.5 m. Determine the total drag on the plate. (5 marks) a) b) What is the boundary layer thickness at the trailing edge? (3 marks)
Air is flowing over a long flat plate with a velocity of 3 m/s. The density is 1.127 kg/mº, and the dynamic viscosity is 1.918-10-kg/m s. The hydrodynamic boundary layer thickness at a distance 0.3 m from the leading edge is: 0 6.41 mm 52,883 mm 5.85 mm 3.22 mm None of the above
Air flows with a velocity of 20 m/s over a flat plate of length 2 m. The air properties are k = 0.030 W/mK, V = 20.92 x 10-6 m/s, Pr=0.700. a. What type(s) of flow (laminar/turbulent) exist on this plate? b. If the following relations are given for the laminar and turbulent local convection coefficients over the plate, haminar (x) = 20 houwbudemo (x) = .52 where x is the distance from the plate leading edge. Find the average...
