You have a device that needs a voltage reference of 3.0 V, but you have only a 9.0 V battery. Fortunately, you also have several 10 k? resistors.

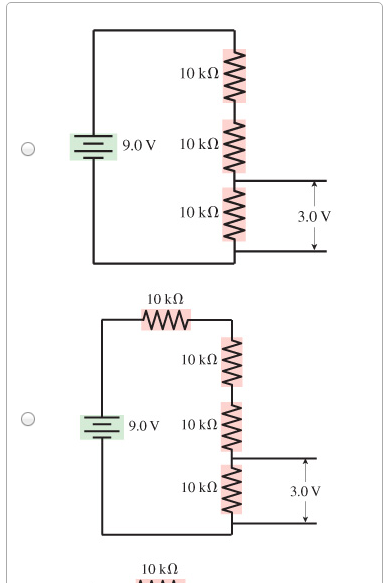

Choose the circuit that shows how you can use the resistors and the battery to make a circuit that provides a potential difference of 3.0 V.


to get 3 v as potential difference, from a 9 v volt battery
,
we can connect 3 10 ohm resistors in series, when connected in
series each reistor will have the same potential drop across them,
so potential difference across each resistor will be 9/3 = 3
volts
hence first figure is the answer.
You have a device that needs a voltage reference of 3.0 V, but you have only a...
Draw a circuit with a resistance(R=V/I) of 1500 ohms, but you only have access to 1 resistor of 1000 ohm. Hint: use exactly 3 resistors. Use wires, switches, battery, voltmeter, and ammeter, regular resistors of 10 ohms. You can change your resistor value. Do this by using equivalent resistance equations for both series and parallel.
Learning Goal: To use the node-voltage method to solve circuits with branches containing only a voltage source. The node-voltage method is a general technique for solving circuits. Fundamentally, it involves writing KCL equations at essential nodes. When the circuit contains a dependent source, you must write a constraint equation for each dependent source, in addition to the KCL equations. When the circuit contains one or more voltage sources that are the only components in branches connecting two essential nodes, the...
For the following questions, draw the circuit and solve for the unknown quantity requested. It is suggested that you include a small solid circle to identify each point where you can specify the local voltage. voltage. 1. A circuit consists of a 3.0 V battery and two resistors connected in series with it. The first resistor has a resistance of 10 Ohms, and the second has a resistance of 15 Ohms. Find the current in the circuit. A: 0.12 A...
Motes Ask Your Teacher 10. 0/12 points| Previous Ansiwers PSEB 2B.AF.a4 Active Figure 28.4 Resistors Connected in Series The animation below shows a circuit diagram for two resistors connected in series acrass a battery Instructions Use the sliders to adjust the resistances and battery voltage and observe the effect on the current and voltages across each resistor. Explore In the animation, the two resistors are connected directly to the battery, so they both share a portion of the battery voltage...
Build an Op-Amp Circuit Network. Note you only have a power source of 5V available. You have a voltage signal that latches at a constant 1.5V. Create a difference circuit to produce an output voltage of 2V. Put P/Ns and element values in your design. Show your work. From part a)’s output voltage, assign that now as a reference voltage (Vref) to compare to an analog sensor signal (Vin) that can range between 0V – 5V. Make sure your circuit...
"consider an analog signal x
Consider a thermistor in a voltage divider circuit. The reference resistance is Rf-3KS2 and the sensor is a thermistor with a nearly linear relationship of slope 100Ω"K at a nominal R0-3KΩ at TO-298 K nominal temperature. Analyze this transducer for a voltage source of V-1.5V froma battery. Use a temperature range of 20 to 30 °C Make sure you understand a. Plot of the response Vout as a function of temperature b. Full scale voltage...
