Question

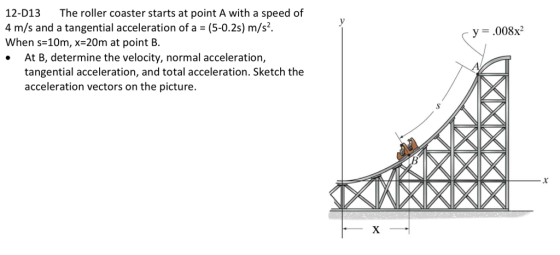

12-D13 The roller coaster starts at point A with a speed of 4 m/s and a tangential acceleration of a = (5-0.29 m/s2. when s=10m, x=20m at point B. y = .008x2 At B, determine the velocity, normal acceleration, tangential acceleration, and total acceleration. Sketch the acceleration vectors on the picture.

engineering   Civil-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

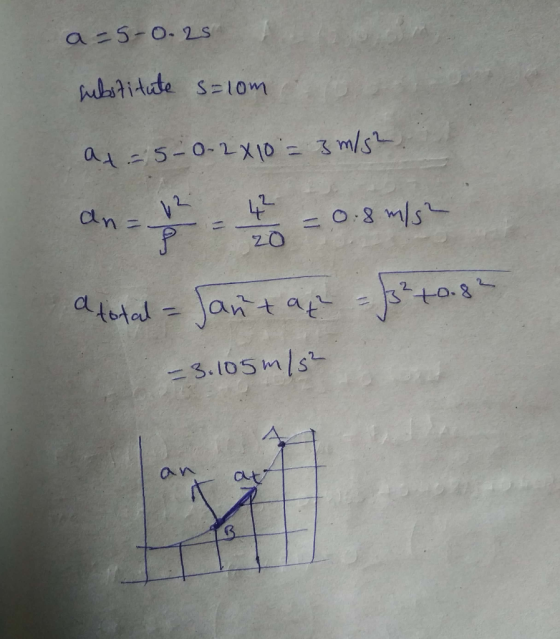

Cl -3.105m/s

0 0
Add a comment
