Determine the magnitudes of the force R and couple M exerted by the nut and bolt...

Question

Question

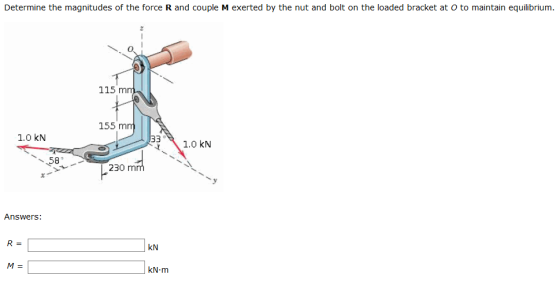

Determine the magnitudes of the force R and couple M exerted by the nut and bolt on the loaded bracket at O to maintain equil

engineering Mechanical-Engineering

Answer 1

Answer #1

1 .115 LG KN 01R 2-ykN ---- .. .23 - - Efx=0 Rat Hal cos58 =) Raz-0.53 kN » Ery ==> Ry 4 teos33-) sin 58 = 0 → Ry z 0.018 KN

Answer 2

Similar Homework Help Questions

Replace the given loads with an equivalent force-couple system at O by specifying the resultant R...

Replace the given loads with an equivalent force-couple system at O by specifying the resultant R and couple Mo. Next, determine the equation for the line of action of the stand-alone resultant force R. 1.1 m 0.30 m J001 0.7 /5.4 kN / m m1.6 m 75 14 kN-m 10.7 kN 7.0 kN0.30 m Answers: Equivalent force-couple system at O R = 8.79 +2.355 kN Mo =T 19.1502 KN·m The equation for the line of action of the stand-alone resultant...
The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm,...

The figure below depicts the cantilever beam. Determine the magnitudes of bending moment (M) in kNm, axial stress() in kN/m2, and shear force (V) in kN acting at point A. The equation for finding the axial stress is = Axial load / cross-section area. Cable XX XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXI BT Beam (0.2 m × 0.2 m) Frictionless Pulley 3 m 50 kN Select one: a Bending moment (M) = 150 kNm, Shear force = 50 kN and axial stress = 1250 kN/m2...
A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown...

A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown below. Assume the force and the couple acts in the same plane. Determine the vertical reaction at A (in kN). Sign: Upward positive P B M 4m 3 m

A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown...

A beam is subjected to a force P=9.8 kN and a couple M=5.1 kNm as shown below. Assume the force and the couple acts in the same plane. Determine the vertical reaction at B (in kN). Sign: Upward positive P B M 4 m 3 m
Determine the magnitudes of FA and FB so that the resultant force passes through point O...

Determine the magnitudes of FA and FB so that the resultant force passes through point O of the column. Suppose that a = 150 mm , b = 180 mm , c = 550 mm , and d = 800 mm . Determine the magnitudes of FA and F so that the resultant force passes through point O of the column. Suppose that a 150 mm , b = 180 mm ,c = 550 mm , and d 800 mm...
Question 1 Replace the system of two forces and one couple by a wrench. Determine the...

Question 1 Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point in the x y plane through which the wrench passes. 35 kNm 1.5 m 1.5 m 49 KN 1.5 m 1.5 in 9 KN 4.0 m A Answers: kN.m KN (x,x) = ו |

Determine the moments of force about O, in N-m], for the following cases a) r 130...

Determine the moments of force about O, in N-m], for the following cases a) r 130 mm], F=120 [N], 0=45°; b) r 0.2 [m], F=-80 [N], 0=115°; A r 27 [cm], F-(40î, 35) [kN]; A c) r-1 [m], F=5 [kN], 0=0°; d) e) r-0.5 m], F-15 [N, 0-180°.
Problem 1 The rigid structure shown in the figure below is loaded with a concentric couple...

Problem 1 The rigid structure shown in the figure below is loaded with a concentric couple applied at H of 75 kNm and a concentric horizontal force of 40 kN. A distributed load spans from point D through E with minimum amplitude of 10 kN/m and a maximum of 30 kN/m, respectively. The structure is externally supported by a roller at A, the cable BC and a pin at G. Please do the following: 1. Draw a neat Free Body...
3. A 0.8-m-diameter pipe is supported every 5 m by a small frame like that shown....

3. A 0.8-m-diameter pipe is supported every 5 m by a small frame like that shown. Knowing that the combined weight of the pipe and its contents is 2 kN/m and assuming frictionless surfaces, determine the components (a) of the reaction at A, (b) of the force exerted at C on member CDE. r=0.4m h= 3 m Zm 5. A semicircular rod is loaded as shown. Determine the internal forces at point J. 200 mm 200 mm 8 KN =...

Replace the system of two forces and one couple by a wrench. Determine the magnitude of...

Replace the system of two forces and one couple by a wrench. Determine the magnitude of the moment M of the wrench, the magnitude of the force R of the wrench, and the coordinates of the point P in the x-y plane through which the wrench passes. 27 kN.m 1.7 m 1.7 m 30 KN 1.7 m 1.7 m 31 KN 4.0 m A Answers: M= kN.m R= KN (x,y) = E
