An optical fiber is constructed out of an inner glass fiber with an index of refraction...

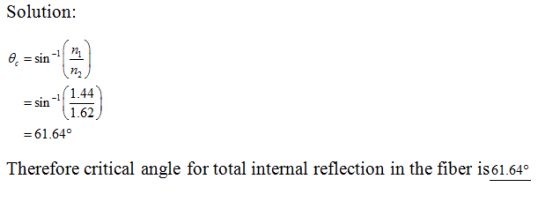

An optical fiber is constructed out of an inner glass fiber with an index of refraction of 1.62 and an outer plastic coating with an index of refraction of 1.44. Find the critical angle for total internal reflection in this fiber.
Homework Answers
Add Answer to:
An optical fiber is constructed out of an inner glass fiber with
an index of refraction...
The core of an optical fiber has an index of refraction of 1.29, while the index...
The core of an optical fiber has an index of refraction of 1.29, while the index of refraction of the cladding surrounding the core is 1.17. What is the critical angle for total internal reflection at the core-cladding interface? critical angle:
The core of an optical fiber has an index of refraction of 1.27 , while the...
The core of an optical fiber has an index of refraction of 1.27 , while the index of refraction of the cladding surrounding the core is 1.15. What is the critical angle for total internal reflection at the core‑cladding interface?
asap Question 19 of 31 > The index of refraction for a certain type of glass...
asap
Question 19 of 31 > The index of refraction for a certain type of glass is 1.637 for blue light and 1.607 for red light. A beam of white light (one that contains all colors) enters a plate of glass from the air, r1, at an incidence angle of 37.05. What is the absolute value of 8, the angle in the glass between blue and red parts of the refracted beams? 18] Question 18 of 31 > The core...
The glass core of an optical fiber has an index of refraction 1.60.The index of refraction...
The glass core of an optical fiber has an index of refraction 1.60.The index of refraction of the cladding is 1.45. What is the maximum angle a light ray can make with the wall of thecore if it is to remain inside the fiber?
A ray of light enters one end of an optical fiber with an angle of incidence...
A ray of light enters one end of an optical fiber with an angle
of incidence θi = 50.0◦. The index of refraction of the fiber is
1.62.
a. Find the angle θ the ray makes with the normal when it
reaches the curved surface of the fiber.
b. Show that the ray inside the fiber is undergoing total internal
reflection. Why would you want this inside an optical fiber?
θ
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and...
Optical fiber has a core with refractive index 1.5, a cladding with refractive index 1.46 and a buffer coating with refractive index 1.4. What is the angle of total internal reflection in this fiber, if light is propagating in the core?
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by...
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by total internal reflection. This example is not a fiber geometry and doesn't include the gradations in refractive index that are used, but still illustrates the point of total internal reflection. Suppose you have a piece of glass, with light incident from the glass side toward an air interface. The refractive index of the glass is 1.45. What is the critical angle where all light...
3.) An optical fiber is covered by a layer of glass, to protect its surface. The...
3.) An optical fiber is covered by a layer of glass, to protect its surface. The index of refraction of the core is n1 = 1.8, and that of the protective layer is n2 = 1.5. The diameter of the core is d= 0.2mm. a. Calculate the critical incident angle at the interface between the core and the protective layer, at which total reflection occurs! (Give your result in degrees!) b. What is the minimal radius to which the fiber...
A glass optical fiber is used to transport a light ray across a long distance
A glass optical fiber is used to transport a light ray across a long distance. The fiber has an index of refraction of 1.540 and is submerged in glycerin, which has an index of refraction of 1.473. What is the critical angle (in degrees) for the light ray to remain inside the fiber?
A glass optical fiber is used to transport a light ray across a long distance. The...
A glass optical fiber is used to transport a light ray across a long distance. The fiber has an index of refraction of 1.550 and is submerged in glycerin, which has an index of refraction of 1.473. What is the critical angle (in degrees) for the light ray to remain inside the fiber? °
The core of an optical fiber has an index of refraction of 1.29, while the index of refraction of the cladding surrounding the core is 1.17. What is the critical angle for total internal reflection at the core-cladding interface? critical angle:
asap
Question 19 of 31 > The index of refraction for a certain type of glass is 1.637 for blue light and 1.607 for red light. A beam of white light (one that contains all colors) enters a plate of glass from the air, r1, at an incidence angle of 37.05. What is the absolute value of 8, the angle in the glass between blue and red parts of the refracted beams? 18] Question 18 of 31 > The core...
A ray of light enters one end of an optical fiber with an angle
of incidence θi = 50.0◦. The index of refraction of the fiber is
1.62.
a. Find the angle θ the ray makes with the normal when it
reaches the curved surface of the fiber.
b. Show that the ray inside the fiber is undergoing total internal
reflection. Why would you want this inside an optical fiber?
θ
(2 points) Optical fibers are made of glass, where light is trapped inside the fiber by total internal reflection. This example is not a fiber geometry and doesn't include the gradations in refractive index that are used, but still illustrates the point of total internal reflection. Suppose you have a piece of glass, with light incident from the glass side toward an air interface. The refractive index of the glass is 1.45. What is the critical angle where all light...
3.) An optical fiber is covered by a layer of glass, to protect its surface. The index of refraction of the core is n1 = 1.8, and that of the protective layer is n2 = 1.5. The diameter of the core is d= 0.2mm. a. Calculate the critical incident angle at the interface between the core and the protective layer, at which total reflection occurs! (Give your result in degrees!) b. What is the minimal radius to which the fiber...
