asap Question 19 of 31 > The index of refraction for a certain type of glass...

Question

Question

asap

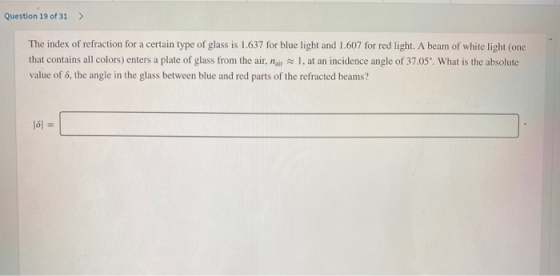

$Question 19 of 31 > The index of refraction for a certain type of glass is 1.637 for blue light and 1.607 for red light. A be$

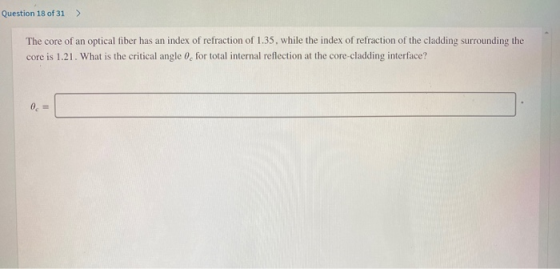

$Question 18 of 31 > The core of an optical fiber has an index of refraction of 1.35. while the index refraction of the claddi$

science physics

Answer 1

Answer #1

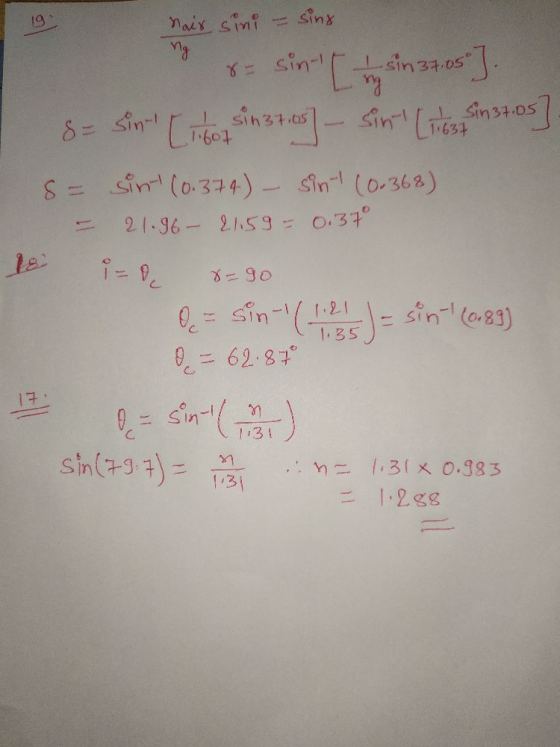

19 sinx Naix sini ng % sin [ 1 in 37.05] 37.05] - Sint Liest Sin 37.05 057 s= sint (0.374) - sint (0.368) 21.96- 21.59 = 0.3

Answer 2

Similar Homework Help Questions

Light rays in a material with index of refrection 1.31 can undergo total internal reflection when...

Light rays in a material with index of refrection 1.31 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 78.1° .
The core of an optical fiber has an index of refraction of 1.29, while the index...

The core of an optical fiber has an index of refraction of 1.29, while the index of refraction of the cladding surrounding the core is 1.17. What is the critical angle for total internal reflection at the core-cladding interface? critical angle:
Light rays in a material with index of refrection 1.33 can undergo total internal reflection when...

Light rays in a material with index of refrection 1.33 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 71.50 index of refraction:

Light rays in a material with index of refrection 1.25 can undergo total internal reflection when...

Light rays in a material with index of refrection 1.25 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 78.1° index of refraction:
The core of an optical fiber has an index of refraction of 1.27 , while the...

The core of an optical fiber has an index of refraction of 1.27 , while the index of refraction of the cladding surrounding the core is 1.15. What is the critical angle for total internal reflection at the core‑cladding interface?
The glass core of an optical fiber has an index of refraction 1.60.The index of refraction...

The glass core of an optical fiber has an index of refraction 1.60.The index of refraction of the cladding is 1.45. What is the maximum angle a light ray can make with the wall of thecore if it is to remain inside the fiber?

Light rays in a material with index of refrection 1.27 can undergo total internal reflection when...

Light rays in a material with index of refrection 1.27 can undergo total internal reflection when they strike the interface with another material at a critical angle of incidence. Find the second material's index of refraction when the required critical angle is 79.3°.
The index of refraction for a certain type of glass is 1.635 for blue light and 1.607 for red light. When a beam of...

The index of refraction for a certain type of glass is 1.635 for blue light and 1.607 for red light. When a beam of white light (one that contains all colors) enters a plate of glass from the air at an incidence angle of 36.55, what is the absolute value of 6, the angle in the glass between blue and red parts of the refracted beams?
An optical fiber is constructed out of an inner glass fiber with an index of refraction...

An optical fiber is constructed out of an inner glass fiber with an index of refraction of 1.62 and an outer plastic coating with an index of refraction of 1.44. Find the critical angle for total internal reflection in this fiber.

asap Question 16 of 31 For the optical fiber shown in the figure, find the minimum...

asap Question 16 of 31 For the optical fiber shown in the figure, find the minimum angle of incidence (0) that will result in total internal reflection if the refractive index for the cladding (n) is 1.48 and the refractive index of the core is (A.) n = 1.57 and (B.) n = 1.80. Cone of acceptance Core Cladding (n.) A 8 1:42 Question 15 of 31 > Building contractors often install double-glazed windows to prevent thermal energy (heat) from...
