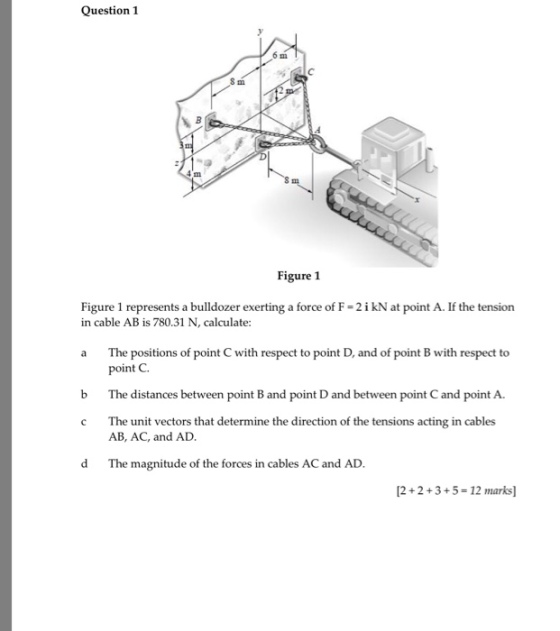

![Question 1 Figure 1 Figure 1 represents a bulldozer exerting a force of F- 2i kN at point A. If the tension a The positions of point C with respect to point D, and of point B with respect to in cable AB is 780.31 N, calculate: point C b The distances between point B and point D and between point C and point A c The unit vectors that determine the direction of the tensions acting in cables AB, AC, and AD. d The magnitude of the forces in cables AC and AD 12+2+3+5- 12 marks]](http://img.homeworklib.com/questions/b94fa9e0-c176-11eb-b733-254e24270e33.png?x-oss-process=image/resize,w_560)

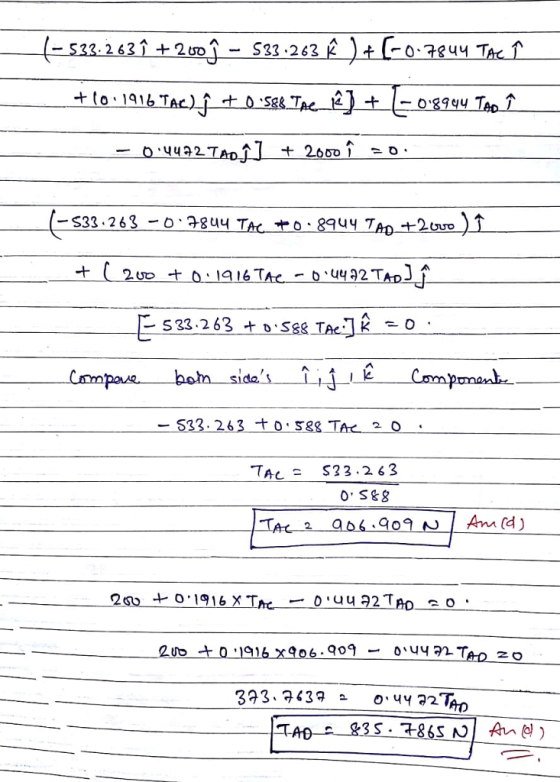

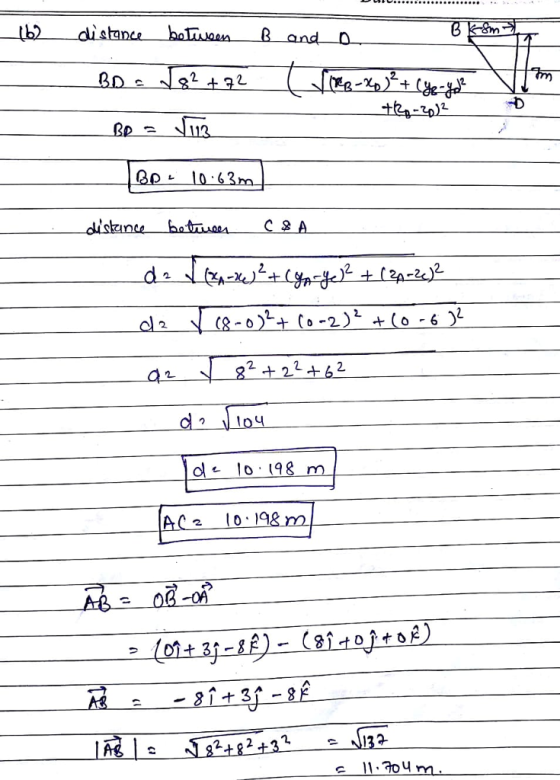

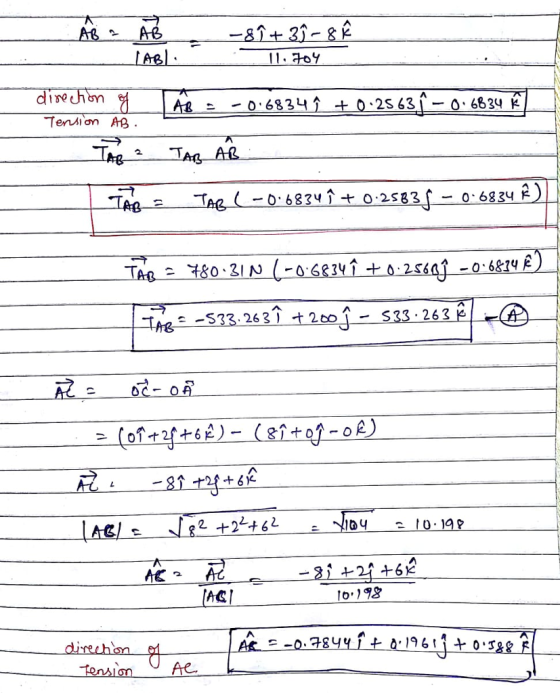

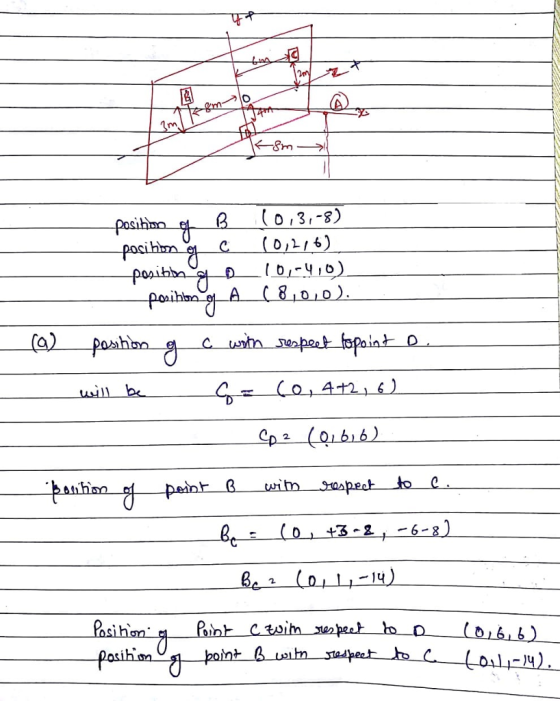

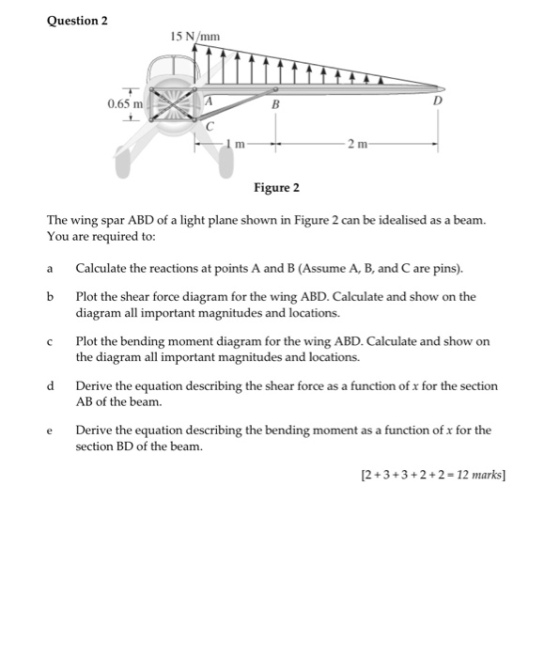

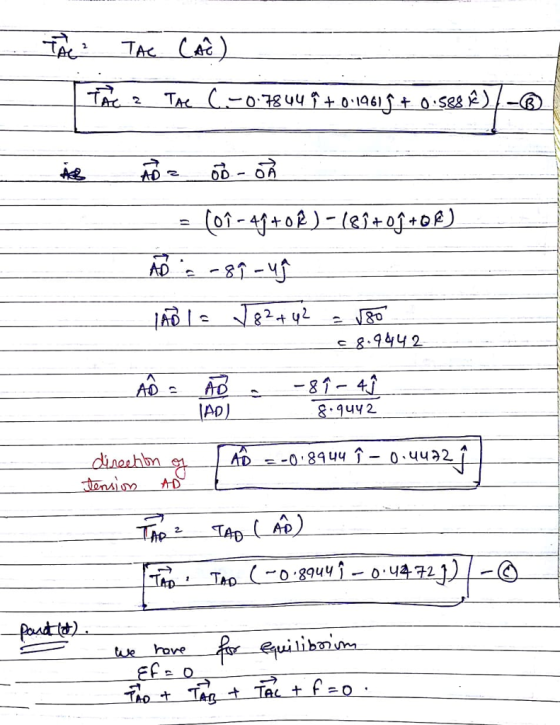

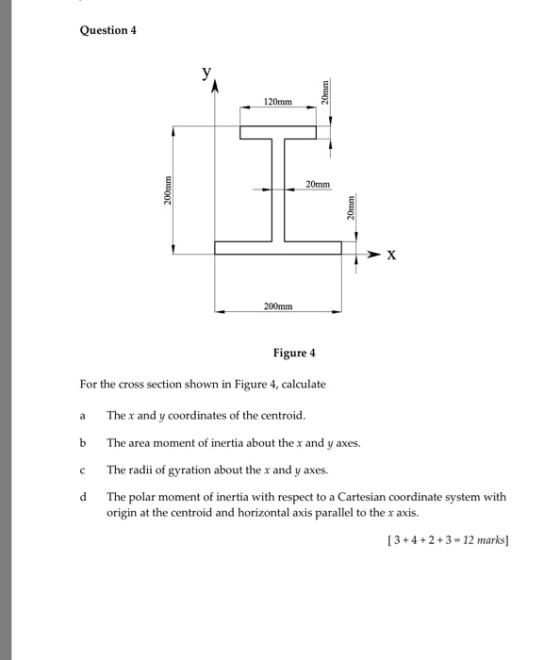

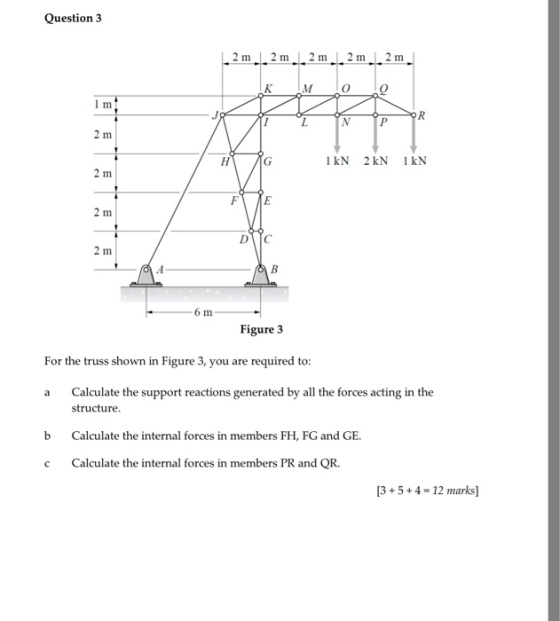

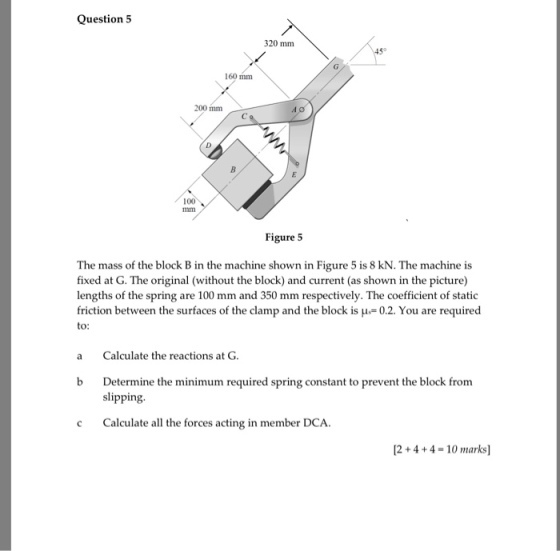

Homework Answers
Add Answer to:
Please do show every bit of work out
Thanks
Question 1 Figure 1 Figure 1 represents...
please show step by step!! C-2 m The flowerpot pictured has a mass of 75 kg....
please show step by step!!
C-2 m The flowerpot pictured has a mass of 75 kg. Take x = 1.5 m and z = 1 m. a) Write the position vectors of points A, B, C, and D. b) Write each force acting on point A in Cartesian vector form. c) Determine the tension in cables AB, AC and AD 3 m 6 m
2. Three cables are attached at point B on the boom of a large construction crane as shown in the...
2. Three cables are attached at point B on the boom of a large construction crane as shown in the figure below. The cable forces acting at point B are FBc 50 kN FBD-100 kN and FBA-75 kN. Determine: a) The resultant, R, of the three (3) forces acting at B, b) The moment of R about the point A, c) The moment of R about the line AD d) The perpendicular distance from A to the line of action...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Part A Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. ? FA Value Units Figure 1 of 1 Submit Request Answer D Part B 2 m Determine the tension developed in cable AC. Express your answer to three significant figures and include the appropriate unite. 1 m 30° 2 m B HA...
If F 280 lb, determine the tension developed in cables AB, AC, and AD. (Figure 1)...
If F 280 lb, determine the tension developed in cables AB, AC, and AD. (Figure 1) Figure 1 of 1> 2 45° 60° 60° 1200TA 30 PartA Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. LA FAB- Value Units Submit Request Answer Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FACValue Units Part C Determine the...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), an...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
Please help! I need help finding and solving equations of equilibrium to find the max tension in ...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
1 [a] To stabilize a tree as in Figure 1[a], cables AB and AC are attached...
1 [a] To stabilize a tree as in Figure 1[a], cables AB and AC are attached to the upper trunk of the tree at the height of 5 m and then are fastened to steel rods anchored in the ground at B and C. If the tension in AB is 5 kN and that the resultant of the forces exerted at A by cables AB and AC lies in the yz plane, determine: Untuk menegakkan pokok seperti dalam Rajah 1a,...
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB...
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB is 2.4 kN. 2 m 0.8 m Figure Q3: Turnbuckle and cable. Write down the coordinates (in metres relative to the origin) of the points labelled O, A and B. (a) [2 Marks] (b) Express the tension T in terms of the Cartesian component vectors Lj and A 3 Marks] (c) Determine the moment Mo about the base O of the cable force acting...
engineering mechain Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load...
engineering mechain
Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load and moment as shown in the figure. Use wo= 1 kN/m and L=12 m. Determine the following: a. Write down the equation of shear force and bending moment for the portion of the beam from A to B. b. Draw the shear force diagram for the entire beam c. Draw the bending moment diagram for the entire beam d. What is the shear force...
1. The pole is held by ball and socket connector at point O. Determine tension at...
1. The pole is held by ball and socket connector at point O.
Determine tension at cables AB and AC and reaction at O.
a. Record positions of points on the diagram:
O (
A (
B (
C (
a. Write complete equations of the forces in each direction.
b. Set up sum of matrices needed to determine moment about point
O.
c. From matrices above, write complete equations for i, j, and k
components of the moment about...
please show step by step!!
C-2 m The flowerpot pictured has a mass of 75 kg. Take x = 1.5 m and z = 1 m. a) Write the position vectors of points A, B, C, and D. b) Write each force acting on point A in Cartesian vector form. c) Determine the tension in cables AB, AC and AD 3 m 6 m
2. Three cables are attached at point B on the boom of a large construction crane as shown in the figure below. The cable forces acting at point B are FBc 50 kN FBD-100 kN and FBA-75 kN. Determine: a) The resultant, R, of the three (3) forces acting at B, b) The moment of R about the point A, c) The moment of R about the line AD d) The perpendicular distance from A to the line of action...
# F = 590 N, determine the tension developed in cables AB, AC, and AD. (Figure 1) Part A Determine the tension developed in cable AB. Express your answer to three significant figures and include the appropriate units. ? FA Value Units Figure 1 of 1 Submit Request Answer D Part B 2 m Determine the tension developed in cable AC. Express your answer to three significant figures and include the appropriate unite. 1 m 30° 2 m B HA...
If F 280 lb, determine the tension developed in cables AB, AC, and AD. (Figure 1) Figure 1 of 1> 2 45° 60° 60° 1200TA 30 PartA Determine the tension developed in cable AB Express your answer to three significant figures and include the appropriate units. LA FAB- Value Units Submit Request Answer Part B Determine the tension developed in cable AC Express your answer to three significant figures and include the appropriate units. FACValue Units Part C Determine the...
A temporary support steel frame (E 200 GPa) is made of 30-mm diameter solid circular steel rods (members AB and CD), and 22-mm diameter solid circular steel rods (members BC and AD), al pin connected at the turnbuckle corners A, B, C, and D (see Figure below). The steel frame is braced by two cables AC and BD. A turnbuckle is fitted to cable AC and tightening it will induce tension 3m in cable AC. Determine the largest allowable tension...
please help! I need help finding and solving equations of
equilibrium to find the max tension in the cables and the angle
that results in the maximum tension, I also have pictures below of
the work I have so far all I really need is equations for the 4
cable part and that's it but I put the whole assignment so you
could see thanks!
Tower Support System Challenge Challenge Scenario: Due to weather conditions, a major communication tower n...
1 [a] To stabilize a tree as in Figure 1[a], cables AB and AC are attached to the upper trunk of the tree at the height of 5 m and then are fastened to steel rods anchored in the ground at B and C. If the tension in AB is 5 kN and that the resultant of the forces exerted at A by cables AB and AC lies in the yz plane, determine: Untuk menegakkan pokok seperti dalam Rajah 1a,...
Question 3 A turnbuckle (Figure Q3) is tightened until the tension T in the cable AB is 2.4 kN. 2 m 0.8 m Figure Q3: Turnbuckle and cable. Write down the coordinates (in metres relative to the origin) of the points labelled O, A and B. (a) [2 Marks] (b) Express the tension T in terms of the Cartesian component vectors Lj and A 3 Marks] (c) Determine the moment Mo about the base O of the cable force acting...
engineering mechain
Problem-1: (20 points) A cantilever beam is supported by a distributed load, concentrated load and moment as shown in the figure. Use wo= 1 kN/m and L=12 m. Determine the following: a. Write down the equation of shear force and bending moment for the portion of the beam from A to B. b. Draw the shear force diagram for the entire beam c. Draw the bending moment diagram for the entire beam d. What is the shear force...
1. The pole is held by ball and socket connector at point O.
Determine tension at cables AB and AC and reaction at O.
a. Record positions of points on the diagram:
O (
A (
B (
C (
a. Write complete equations of the forces in each direction.
b. Set up sum of matrices needed to determine moment about point
O.
c. From matrices above, write complete equations for i, j, and k
components of the moment about...
