The J-shaped member shown in the figure(Figure 1) is supported by a cable DE and a single journal bearing with a square...
The J-shaped member shown in the figure(Figure 1) is supported
by a cable DE and a single journal bearing with a square
shaft at A. Determine the reaction forces
Ay and Az at support A
required to keep the system in equilibrium. The cylinder has a
weight WB = 5.70 lb , and F = 2.00 lb is
a vertical force applied to the member at C. The
dimensions of the member are w = 1.50 ft , l =...

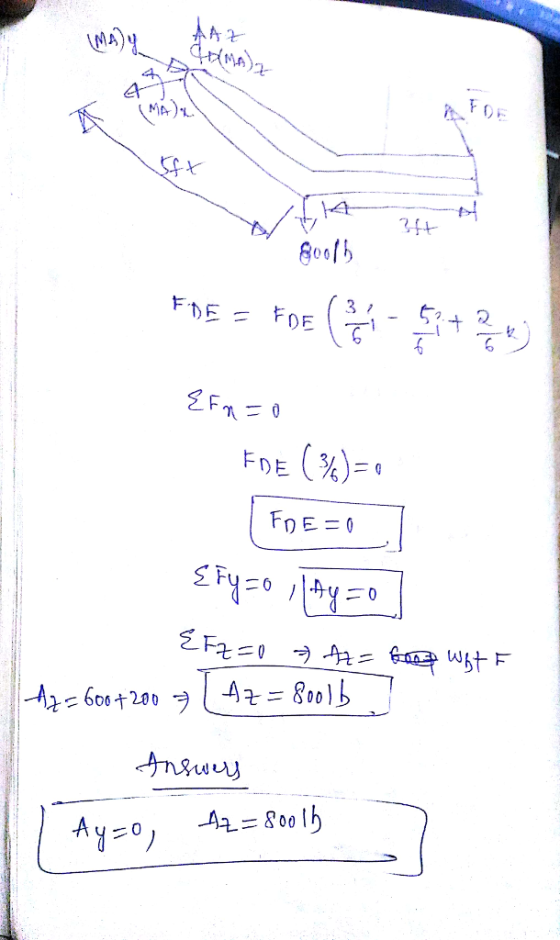

As shown, a truss is loaded by the forces P1= 497lb and P2 = 196lb and has the dimension a =...
Determine FCG and FGH in (lb), the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption.Express your answers numerically in pounds to three significant figures separated by a comma.
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T...
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T Learning Goal: Aa shown, force vector F wth a c28.0 lb is applied at point A and is directed toward point Cue 1) The dstlance a is 400 t and the To find a force's directional components that act along a cable and to fied the coordinales of a point on a cable that has a force vector applied to t Express your answers...
Part A - Support Reactions and Internal Loading Learning Goal: To use the superposition principle to...
Part A - Support Reactions and Internal Loading Learning Goal: To use the superposition principle to find the state stress on a bear under multiple loadings. The beam shown below is subjected to a horizontal force P via the rope wound around the pulley. The state of stress at point A is to be determined Determine the support reactions, and C, and the intemal normal force, shear force, and moment on the cross-section containing point A. Express your answers, separated...
Part A As shown, a truss is loaded by the forces I 499 lb and P2...
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 =...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 = 410 lb...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Problem 5.76 4 of 6> Part A The member is supported by a pin at A...
Problem 5.76 4 of 6> Part A The member is supported by a pin at A and cable BC Suppose thatr 3 m and the cylinder has a mass of 45 kg. (Figure 1) Determine the tension in the cable BC Express your answer to three significant figures and include the appropriate units. Templates T Value Units BC = Submit Request Answer Part B Determine the components of reaction force at the support A using scalar notation. Express your answers...
The J-shaped member shown in the figure(Figure 1) is supported by a cable DE and a single journal bearing with a squa...
The J-shaped member shown in the figure(Figure 1) is supported by a
cable DE and a single journal bearing with a square shaft
at A. Determine the reaction forces Ay
and Az at support A required to keep the
system in equilibrium. The cylinder has a weight
WB = 6.00lb , and F = 1.30lb is a
vertical force applied to the member at C. The dimensions
of the member are w = 1.50ft , l = 6.00ft , and...
The J-shaped member shown in the figure(Figure 1) is supported
by a cable DE and a single journal bearing with a square
shaft at A. Determine the reaction forces
Ay and Az at support A
required to keep the system in equilibrium. The cylinder has a
weight WB = 5.70 lb , and F = 2.00 lb is
a vertical force applied to the member at C. The
dimensions of the member are w = 1.50 ft , l =...
CE 1301 Civil Engineering Fundamentals <2.7-8 Position Vectors & Force directed along a line Item T Learning Goal: Aa shown, force vector F wth a c28.0 lb is applied at point A and is directed toward point Cue 1) The dstlance a is 400 t and the To find a force's directional components that act along a cable and to fied the coordinales of a point on a cable that has a force vector applied to t Express your answers...
Part A - Support Reactions and Internal Loading Learning Goal: To use the superposition principle to find the state stress on a bear under multiple loadings. The beam shown below is subjected to a horizontal force P via the rope wound around the pulley. The state of stress at point A is to be determined Determine the support reactions, and C, and the intemal normal force, shear force, and moment on the cross-section containing point A. Express your answers, separated...
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
Figure 2 of 3 Part C - Analyzing another force-couple system on a bracket The same bracket and force-couple system as that in Part B (F=159 lb, F = 53 lb, and M-590 lb-ft) is set up again, only this time, the resultant force is to be applied to the horizontal member CB.(Figure 2)Replace this force and couple system with an equivalent force by specifying the magnitude of the force, the direction in which the force acts, and where the...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Problem 5.76 4 of 6> Part A The member is supported by a pin at A and cable BC Suppose thatr 3 m and the cylinder has a mass of 45 kg. (Figure 1) Determine the tension in the cable BC Express your answer to three significant figures and include the appropriate units. Templates T Value Units BC = Submit Request Answer Part B Determine the components of reaction force at the support A using scalar notation. Express your answers...
The J-shaped member shown in the figure(Figure 1) is supported by a
cable DE and a single journal bearing with a square shaft
at A. Determine the reaction forces Ay
and Az at support A required to keep the
system in equilibrium. The cylinder has a weight
WB = 6.00lb , and F = 1.30lb is a
vertical force applied to the member at C. The dimensions
of the member are w = 1.50ft , l = 6.00ft , and...
