As shown, a truss is loaded by the forces P1 = 490 lb and P2 =...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...

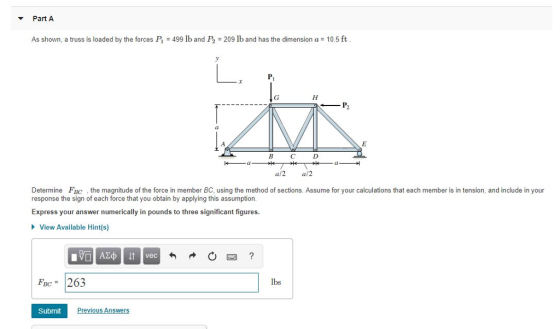

how to solve this? Part A As shown, a truss is loaded by the forces P...

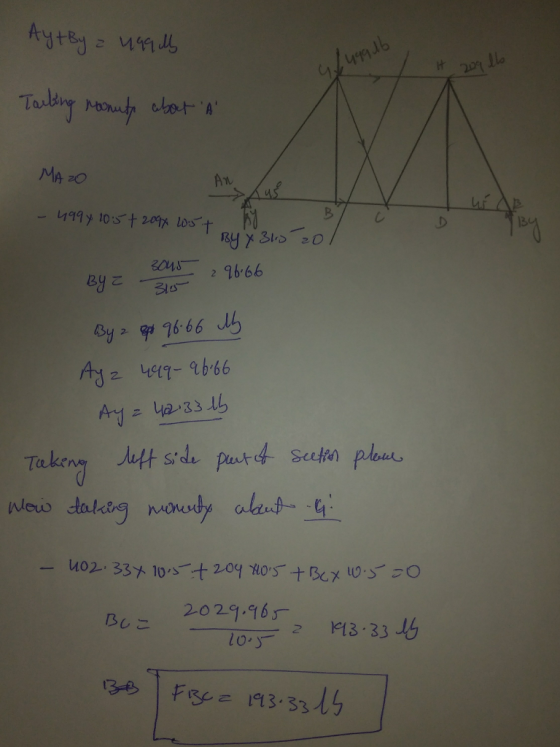

how to solve this?
Part A As shown, a truss is loaded by the forces P =867 N and P 377 N and has the dimension a 4.70 m P н P E В C D a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calgulations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption....
Part B As shown, the truss is loaded by the forces Pi = 475 N and...
Part B As shown, the truss is loaded by the forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m P B D P Using the method of joints, determine FAB, FBC, and FBD, the magnitude of the force in each of the members connected to joint B. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method of sections to find the forces in specific members of a truss. As shown, a truss is loaded by the forces P 500 lb and P2 194 lb and has the dimension a 9.90 ft The method of sections is used to find the force in a specific member of a truss and is based on the principle that, if a body is in...
As shown, a truss is loaded by the forces P1= 497lb and P2 = 196lb and has the dimension a =...
Determine FCG and FGH in (lb), the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption.Express your answers numerically in pounds to three significant figures separated by a comma.
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 = 410 lb...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Problem 3.21 6of7 Review Part A Consider the truss shown in (Figure 1) Suppose that F-8 k.Assume all members are pin...
Problem 3.21 6of7 Review Part A Consider the truss shown in (Figure 1) Suppose that F-8 k.Assume all members are pin connected Determine the force in the member FC of the truss and state if the member is in tension or compression. Express your answer using three significant figures. Enter negative value in the case of compression and positive value in the case of tension. Figure 1 of 1 1.5 k Frc 3.04 6 ft Submit wers Request An 6...
Chapter 4, Problem 4/007 Determine the force in each member of the loaded truss. The forces are positive if in tension,...
Chapter 4, Problem 4/007 Determine the force in each member of the loaded truss. The forces are positive if in tension, negative if in compression. 2.6 2.0 4.3 2.9' 3870 lb 3460 lb Answers AB lb lb BC lb BD lb BE lb CD lb lb
Chapter 4, Problem 4/007 Determine the force in each member of the loaded truss. The forces are positive if in tension, negative if in compression. 2.6 2.0 4.3 2.9' 3870 lb 3460 lb Answers...
Determine the force in each member of the Gambrel roof truss shown if load P =...
Determine the force in each member of the Gambrel roof truss shown if load P = 720 lb. (Round the final answers to their nearest whole number.) 600 lb 600 lb 300lb B 2 ft 4 in. 300 lb 8 ft S ft 8 ft S ft lb. (Compression) lb. (Tension) The force in member AB (FAB) is The force in member AC (FAc) is The force in member BC (FBc) is 0 The force in member CE (FCE) is...
Part A - Determining the forces in three specified members of the truss Determine the forces...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
how to solve this?
Part A As shown, a truss is loaded by the forces P =867 N and P 377 N and has the dimension a 4.70 m P н P E В C D a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calgulations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption....
Part B As shown, the truss is loaded by the forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m P B D P Using the method of joints, determine FAB, FBC, and FBD, the magnitude of the force in each of the members connected to joint B. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method of sections to find the forces in specific members of a truss. As shown, a truss is loaded by the forces P 500 lb and P2 194 lb and has the dimension a 9.90 ft The method of sections is used to find the force in a specific member of a truss and is based on the principle that, if a body is in...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
Problem 3.21 6of7 Review Part A Consider the truss shown in (Figure 1) Suppose that F-8 k.Assume all members are pin connected Determine the force in the member FC of the truss and state if the member is in tension or compression. Express your answer using three significant figures. Enter negative value in the case of compression and positive value in the case of tension. Figure 1 of 1 1.5 k Frc 3.04 6 ft Submit wers Request An 6...
Chapter 4, Problem 4/007 Determine the force in each member of the loaded truss. The forces are positive if in tension, negative if in compression. 2.6 2.0 4.3 2.9' 3870 lb 3460 lb Answers AB lb lb BC lb BD lb BE lb CD lb lb
Chapter 4, Problem 4/007 Determine the force in each member of the loaded truss. The forces are positive if in tension, negative if in compression. 2.6 2.0 4.3 2.9' 3870 lb 3460 lb Answers...
Determine the force in each member of the Gambrel roof truss shown if load P = 720 lb. (Round the final answers to their nearest whole number.) 600 lb 600 lb 300lb B 2 ft 4 in. 300 lb 8 ft S ft 8 ft S ft lb. (Compression) lb. (Tension) The force in member AB (FAB) is The force in member AC (FAc) is The force in member BC (FBc) is 0 The force in member CE (FCE) is...
Part A - Determining the forces in three
specified members of the truss
Determine the forces in members CD, DH, and
GH.
Express the magnitudes of the forces in pounds to three
significant figures. Separate your answers with commas.
Part B - The Sense of the Forces
State if the members considered in part A are in tension or
compression.
Complete each sentenc
e by dragging the appropriate word into the blank. The words can
be used more than once....
