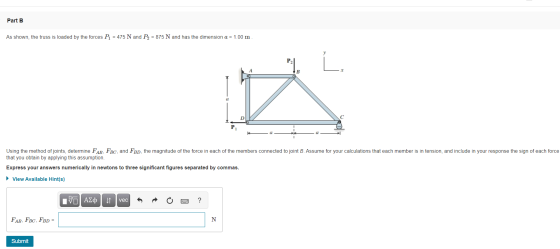

Part B As shown, the truss is loaded by the forces Pi = 475 N and...
Please answer it correctly Part A As shown, a truss is loaded with forces Pi =...
Please answer it correctly

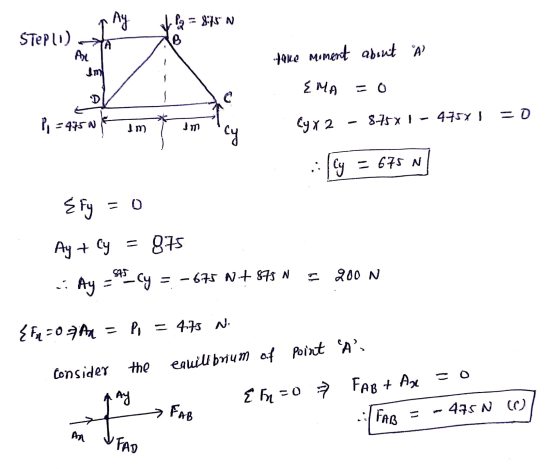

Part A As shown, a truss is loaded with forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m L. B u D Determine A, and Ay, joint A's reaction forces' magnitudes in the x and y directions, respectively, and Cy, joint C's reaction force's magnitude in the y direction. Express your answers numerically in newtons to three significant figures separated by commas. ► View Available Hint(s) ΟΙ...
how to solve this? Part A As shown, a truss is loaded by the forces P...
how to solve this?
Part A As shown, a truss is loaded by the forces P =867 N and P 377 N and has the dimension a 4.70 m P н P E В C D a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calgulations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption....
Part A As shown, a truss is loaded by the forces I 499 lb and P2...
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 =...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 = 410 lb...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
The Method of Joints Parts 1 of 4 As shown, the truss is loaded by the...
The Method of Joints Parts 1 of 4 As shown, the truss is loaded by the forces - 208 band - 306 lb and has the dimension 2.30 ft Ung the method of mine PAF , and the magnitude of the force in each of the members connected to of each for that you babypoing this s on Express your answer americally in pounds to the significant figures peated by commas assume for your calculations that each memberi inson, and...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method of sections to find the forces in specific members of a truss. As shown, a truss is loaded by the forces P 500 lb and P2 194 lb and has the dimension a 9.90 ft The method of sections is used to find the force in a specific member of a truss and is based on the principle that, if a body is in...
A roof truss is loaded and supported as shown in Figure 2. The joints are all...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
As shown, a truss is loaded by the forces P1= 497lb and P2 = 196lb and has the dimension a =...
Determine FCG and FGH in (lb), the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption.Express your answers numerically in pounds to three significant figures separated by a comma.
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine...
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine the force in member BC. Show all necessary FBDs and equations of equilibrium. Hint: You must avoid calculating the reactions since the reactions are statically indeterminate. 5 kips
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a)...
Please answer it correctly
Part A As shown, a truss is loaded with forces Pi = 475 N and P2 = 875 N and has the dimension a = 1.00 m L. B u D Determine A, and Ay, joint A's reaction forces' magnitudes in the x and y directions, respectively, and Cy, joint C's reaction force's magnitude in the y direction. Express your answers numerically in newtons to three significant figures separated by commas. ► View Available Hint(s) ΟΙ...
how to solve this?
Part A As shown, a truss is loaded by the forces P =867 N and P 377 N and has the dimension a 4.70 m P н P E В C D a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calgulations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption....
Part A As shown, a truss is loaded by the forces I 499 lb and P2 209 lb and has the dimension a 10.5 ft P2 Ca cl a/2 a/2 Determine FBc the magnitude of the force in member BC, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of each force that you obtain by applying this assumption Express your answer numerically in pounds to three...
As shown, a truss is loaded by the forces P1 = 490 lb and P2 = 192 lb and has the dimension a = 9.00 ft. y P X G H P2 E B > a с D > 7 a/2 a/2 Determine Fcg and Fgh, the magnitudes of the forces in members CG and GH, respectively, using the method of sections. Assume for your calculations that each member is in tension, and include in your response the sign of...
As shown, a truss is loaded with forcesP_1 = 208 lb and P_2 =
410 lb and has the dimension a = 4.00 ft .
Learning Goal: To apply the method of joints to find the forces in a buss's members. For a truss, the method of joints is used to determine the forces in the members. To find cach member's foroc, the equilibriuin of individual jaints is considered. The member forces becainc external forces in a joint's frec-bacly diagram...
The Method of Joints Parts 1 of 4 As shown, the truss is loaded by the forces - 208 band - 306 lb and has the dimension 2.30 ft Ung the method of mine PAF , and the magnitude of the force in each of the members connected to of each for that you babypoing this s on Express your answer americally in pounds to the significant figures peated by commas assume for your calculations that each memberi inson, and...
t The Method of Sections 1 of 5 Part A Learning Goal: To apply the method of sections to find the forces in specific members of a truss. As shown, a truss is loaded by the forces P 500 lb and P2 194 lb and has the dimension a 9.90 ft The method of sections is used to find the force in a specific member of a truss and is based on the principle that, if a body is in...
A roof truss is loaded and supported as shown in Figure 2. The joints are all pinned. (a) Determine the support reactions at A and G. (25 marks) (b)Using "Method of joints" find the forces in members AB, AF, GF, CD and DE of the truss. State whether each of these members is in tension or compression. (75 marks) (c) Determine the force in members BC, CF and EF of the truss using "Method of sections". State whether each of...
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a) use the Method of Joints to determine the force in member CF, and then (b) use the Method of Sections to determine the force in member BC. Show all necessary FBDs and equations of equilibrium. Hint: You must avoid calculating the reactions since the reactions are statically indeterminate. 5 kips
Part B: Numerical Problems (15 points each) 1. For the truss loaded as shown, (a)...
