Question

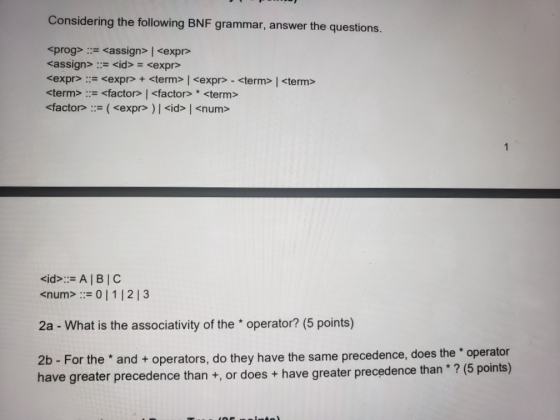

Considering the following BNF grammar, answer the questions. <prog> - <assign> | <expr> <assign> = <id> = <expr> <expr> := <expr> + <term> | <expr> - <term> | <term> <term> := <factor> | <factor> * <term> <factor> ::= ( <expr> ) | <id> | <num> <id>::= ABC <num> := 0|1|2|3 2a - What is the associativity of the * operator? (5 points) 2b - For the * and + operators, do they have the same precedence, does the * operator have greater precedence than +, or does + have greater precedence than * ? (5 points)

Answer 1

2a.

An operator is right associative if the variable on the LHS of the associated production is same as the variable to the right of the particular operator on the RHS of the production.

An operator is left associative if the variable on the LHS of the associated production is same as the variable to the left of the particular operator on the RHS of the production.

The production where the * operator appears on RHS is :

<term> :: = <factor> * <term>

In the given production, the variable on LHS is <term> and the same variable <term> is to the right of the * operator on RHS.

Thus, the * operator is right associative.

2b.

If an operator x is present in mth production in the set and another operator y is present in the nth production in the same set and if m < n, then the operator will have higher precedence than x.

In the given set of productions, the production which has the + operator is the 3rd production in the set and the production which has the * operator is the 4th production in the set.

Thus, the * operator has greater precedence than the + operator.
