Consider the forces applied to the particle shown in (Figure 1). Suppose that F4 = 6...

Question

Question

Consider the forces applied to the particle shown in (Figure 1). Suppose that F4 = 6 kNand F5 = 20 kN .

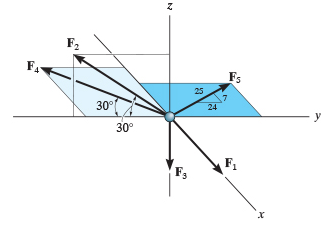

30° 24 30° F1

A- Determine the magnitude of F1 for equilibrium of the particle.

Express your answer to three significant figures and include the appropriate units.

F1=

B- Determine the magnitude of F2 for equilibrium of the particle.

Express your answer to three significant figures and include the appropriate units.

F2=

C- Determine the magnitude of F3 for equilibrium of the particle.

Express your answer to three significant figures and include the appropriate units.

F3=

engineering Mechanical-Engineering

Add a comment Improve this question Transcribed image text

Answer 1

Answer #1

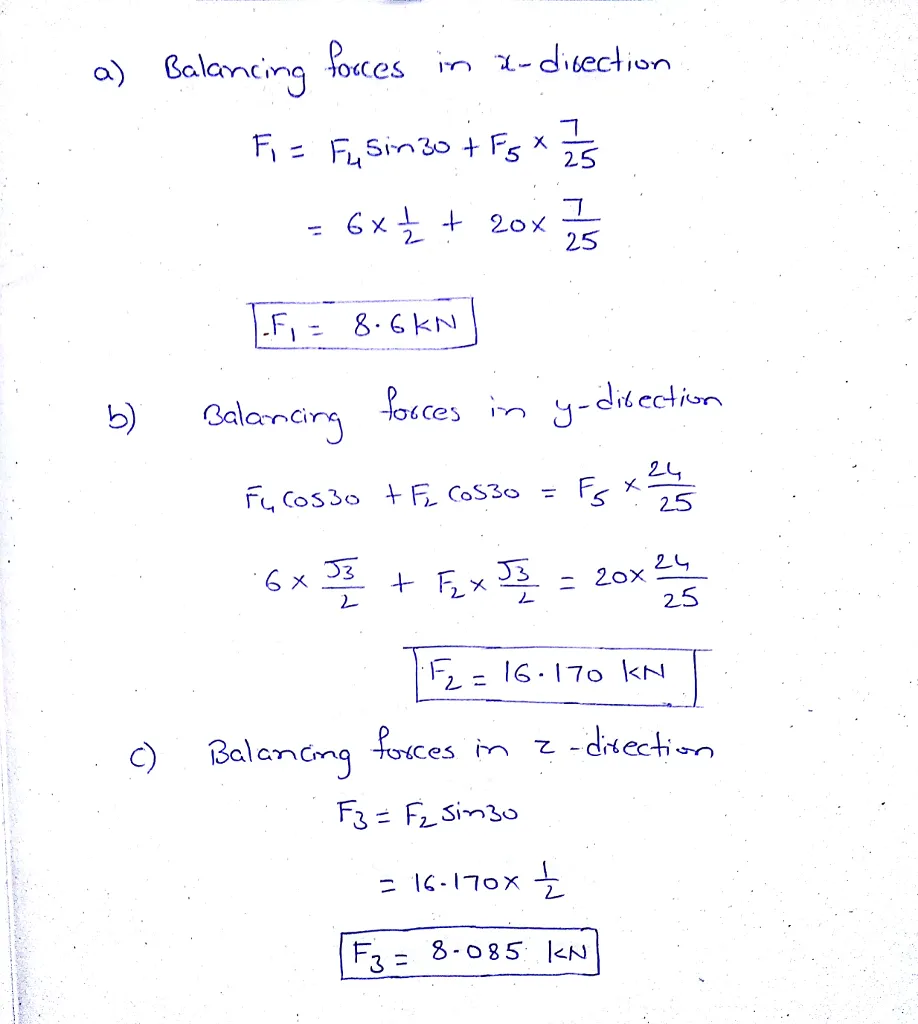

2 25 CnCi S25 25 F2-3-085N
