During the construction of the LRT railroad track, hot rolled structural steel A36 of 10-m-long rails were used. The steel ra

engineering   Mechanical-Engineering
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

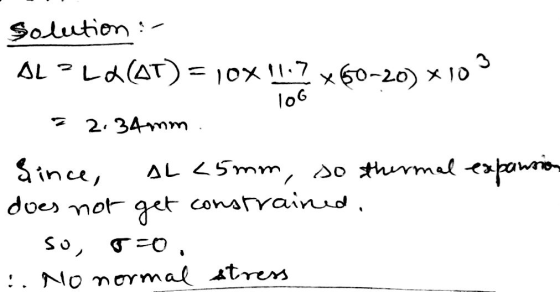

Solution :- 3 AL PLA(AT) = 10% 11.7 10G x60-20) *10 2.34mm &ince, AL <5mm, so thermal expansion does not get constrained. So,

Thus there is no normal stress in the rails.

0 0
Add a comment
Know the answer?
Add Answer to:
During the construction of the LRT railroad track, hot rolled structural steel A36 of 10-m-long rails...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Log In

Sign Up

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions

  • The steel rails of a railroad track (Es = 200 GPa, αs = 11.7 × 10–6/°C)...

    The steel rails of a railroad track (Es = 200 GPa, αs = 11.7 × 10–6/°C) were laid at a temperature of 6°C. Determine the normal stress in the rails when the temperature reaches 48°C, assuming that the rails (a) are welded to form a continuous track, (b) are 10 m long with 3-mm gaps between them.

  • Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks...

    Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks are laid, gaps are left between sections to prevent buckling when the steel termally expands. If a track is laid at 16*C, how large should the gaps be if the track is not to buckle when the temperature is as high as 50*C?

  • Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks...

    Older railroad tracks in the U.S. are made of 12-m-long pieces of steel. When the tracks are laid, gaps are left between the sections to prevent buckling when the steel thermally expands. Part A If a track is laid at 16∘C, how large should the gaps be if the track is not to buckle when the temperature is as high as 50∘C?

  • 3. Steel railroad rails 18,2880 m long are laid on a winter day when the temperature...

    3. Steel railroad rails 18,2880 m long are laid on a winter day when the temperature is -6,00 °C. How much space must be left between rails if they are just to touch on a summer day when the temperature is 43 °C? (4)

  • Steel train rails are laid in 14.0-m-long segments placed end to end. The rails are laid...

    Steel train rails are laid in 14.0-m-long segments placed end to end. The rails are laid on a winter day when their temperature is -5.0 ∘C. How much space must be left between adjacent rails if they are just to touch on a summer day when their temperature is 33.0 ∘C? If the rails are originally laid in contact, what is the stress in them on a summer day when their temperature is 33.0 ∘C? Please answer both questions

  • A railroad track la made of individual rails of steel each 29 feet in length. By...

    A railroad track la made of individual rails of steel each 29 feet in length. By what length would one rail change from a cold winter day when the temperature is -10 degree Cto a hot summer day at 30 degree C? (1 m. 3.281 ).(1km = 1000m) (5280 ft = 1 mile) (1 mile = 1.609 km) TABLE 14.1. Coefficients of linear expansion for selected materials Material a (K 'or C-1) Quartz (fused) 0.04 x 10 Invar (nickel- iron...

  • A steel railroad track has a length of 24 m when the temperature is 8◦C. What...

    A steel railroad track has a length of 24 m when the temperature is 8◦C. What is the increase in the length of the rail on a hot day when the temperature is 36 ◦C? The linear expansion steel is 11 × 10−6 (◦C)−1. Answer in units of m. 004 (part 2 of 2) 10.0 points Suppose the ends of the rail are rigidly clamped at 8◦C to prevent expansion. Calculate the thermal stress in the rail if its temperature...

  • Full solution thank The 12-m-long A-36 steel rails on a train track are laid with a...

    Full solution thank The 12-m-long A-36 steel rails on a train track are laid with a small gap between them to allow for thermal expansion. The CROSS-sectional area of each railis 3100 mm . (Figure 1) - Part A Determine the required gap & so that the rails just touch one another when the temperature is increased from Ti -30°C to 30°C Express your answer to three significant figures and include the appropriate units. :MAO ? Value Units Fiqure 1...

  • C1) If a standard 1850 USA railroad track (11.9m) was made on a hot summer day...

    C1) If a standard 1850 USA railroad track (11.9m) was made on a hot summer day 32 °C, how long would it be on a cold night in NY -5 °C? C2) In a NY city skyscraper, there is a steel cable that is 380 m tall. If it was placed there at room temperature 20°C, and the building cooled off to 10°C in winter, how many cm would the 1st floor level be off when the elevator doors opened?...

  • The 40-ft long A-36 steel rails on a train track are laid with a small gap...

    The 40-ft long A-36 steel rails on a train track are laid with a small gap between them to allow for thermal expansion. Determine the total required gap, 2*6, so that the rails just touch one another when the temperature is increased from T1 -20°F to T2 90 °F. If the rails were installed at -20 °F with this gap, what would be the axial force in the rails if the temperature were to rise to T3 = 110 °F....
