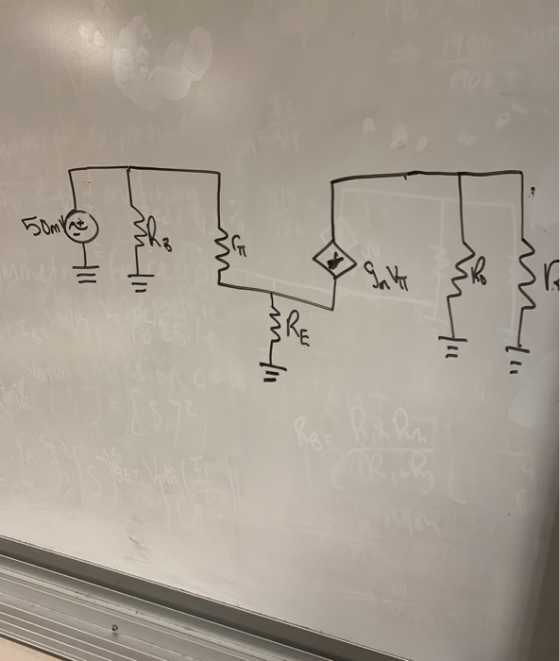

what is the input and output impedance of the small
signal modelHomework Answers
Add Answer to:
what is the input and output impedance of the small
signal model
ที่ 11
Consider the CS Amp with resistive degeneration Rs. a) Draw the small signal model and Find...
Consider the CS Amp with resistive degeneration Rs.
a) Draw the small signal model and Find the output
impedance
오 + S 1 (+1H
3. What is Gain of an Amplifier? Small Input Signal Amplification Stage Larger Output Signal I...
3. What is Gain of an Amplifier? Small Input Signal Amplification Stage Larger Output Signal I out V Vin Gain (A) = Output Tnput 4. Draw the general structure / blocks of a measurement systems 4. Draw the general structure / blocks of a measurement systems 5. Express cach stages of the Measurement System for the following Strain gauge Application referring to the Digiac Kit. True Primary Secondary Sensing Explain this stage with its units: Millivolts Volts Deflection bridge Amplifier...

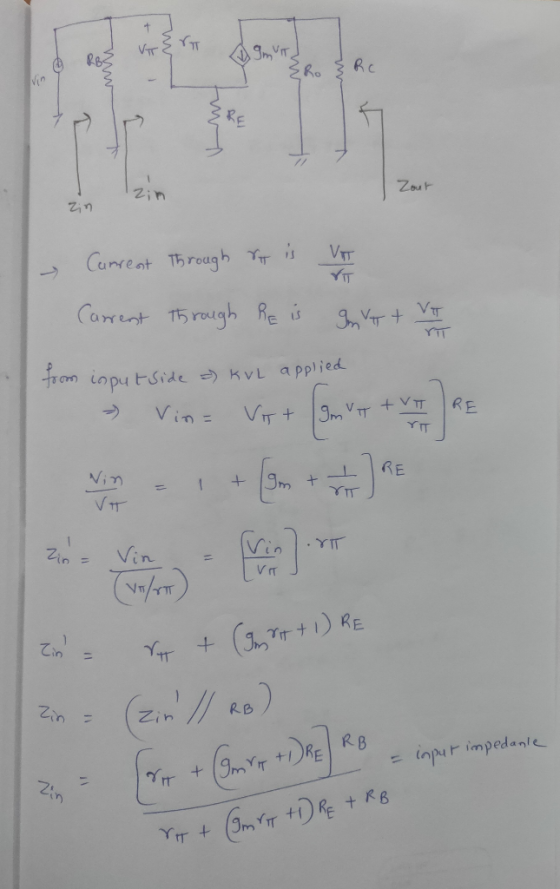

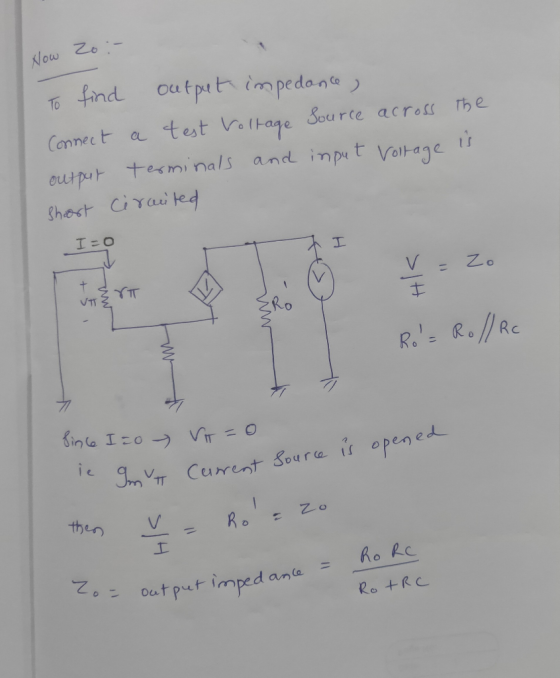

What are the Input impedance, output impedance, voltage gain and current gain equations for a common...
What are the Input impedance, output impedance, voltage gain and current gain equations for a common emitter amplifier biased using emitter bias? (Plus please provide the circuit)
2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit using the T-model without the B1 Cci output resistance (b)Find an expression for the input resistan...
2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit using the T-model without the B1 Cci output resistance (b)Find an expression for the input resistance Rin. (c)Find an expression for the output resistance Ro. (d) Find an expression for the lower cut-off frequency Vi Re sig 82 C, (RE-R) in associated with Cci. (d)Find expressions for the two gains vo/v, and v/Vsig CI.
2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit...
9. An ideal Opamp has infinite input impedance but non-zero output impedance. The Opamp is used...
9. An ideal Opamp has infinite input impedance but non-zero output impedance. The Opamp is used as a voltage follower interface for connecting a biomeasurement device to a voltmeter. If the voltmeter has an input impedance of 100Ω, what must the Opamp output impedance be to give a measurement error of less than 1%?
Please select the correct statements: The bandwidth of a circuit can be found by measuring the 5/7 drop in output signal The input impedance of a circuit can be found by adding a resistor in parallel...
Please select the correct statements: The bandwidth of a circuit can be found by measuring the 5/7 drop in output signal The input impedance of a circuit can be found by adding a resistor in parallel and measuring the change in voltage The X-Y mode on the scope shows the phase difference and distortion between two inputs E12 resistors have +/-10% tolerence. Typical values are: 100, 1k, 1.5k, 2k Ohm An voltage follower op-amp with a slew rate of 1V/ms...
2. Refer again to the network of fig.P1. Using the small-signal-equivalent circuit developed in problem 1...
2. Refer again to the network of fig.P1. Using the small-signal-equivalent circuit developed in problem 1 and assuming this time that ro-> co, determine: (a) The input impedance (Z) and the output impedance (Zo) (b) The no-load voltage gain (AvNL). (22)
Small signal (AC) model for the npn BJT is given below. According to this picture, which...
Small signal (AC) model for the npn BJT is given below. According to this picture, which is not correct for this transistor if the DC base current (B) is known to be 0.05mA and gain (ß) is 125, Early voltage is given (VA-100 V at room temperature (Vt-25 mVT Vbe <t> gnNbe'.ro Bo-ㄧㄧ 10 NPN π model T model a transconductance gm- 250mS -b. AC emitter resistance ㈨ is-4ohms c Emitter efficiency a is 90% d- Has a finite output...
Loading Error Example Problem: A 0-5000psi pressure transducer generates .02Volts/Volt F.S.O and has a output impedance...
Loading Error Example Problem: A 0-5000psi pressure transducer generates .02Volts/Volt F.S.O and has a output impedance of 120 Ohms it will be used as an input signal to a signal conditioning amplifier with 25KOhms input impedance. The transducer will be powered with a 5vdc power supply A. What is the expected Loading Error? B. What is the FSO with no Loading Error? C. What is the volt/psi value for the xdcr? D. The DC power supply is poorly regulated and...
If of the input signal X(t) and output signal yl to a continuous - time linear...
If of the input signal X(t) and output signal yl to a continuous - time linear time - invariant system - Y(t) = 5 to xc ej elt- el de o find the impluse response of the system hat) o If the input signal is x (t) = f(t) - f (t-1) find the output signal y ct) o Find the impulse response of the system hit) @ If the input signal Is x (t) = f(t)-f(t-1) find the -...
Consider the CS Amp with resistive degeneration Rs.
a) Draw the small signal model and Find the output
impedance
오 + S 1 (+1H
3. What is Gain of an Amplifier? Small Input Signal Amplification Stage Larger Output Signal I out V Vin Gain (A) = Output Tnput 4. Draw the general structure / blocks of a measurement systems 4. Draw the general structure / blocks of a measurement systems 5. Express cach stages of the Measurement System for the following Strain gauge Application referring to the Digiac Kit. True Primary Secondary Sensing Explain this stage with its units: Millivolts Volts Deflection bridge Amplifier...
2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit using the T-model without the B1 Cci output resistance (b)Find an expression for the input resistance Rin. (c)Find an expression for the output resistance Ro. (d) Find an expression for the lower cut-off frequency Vi Re sig 82 C, (RE-R) in associated with Cci. (d)Find expressions for the two gains vo/v, and v/Vsig CI.
2.34. Consider the common-emitter amplifier on the right. (a)Draw a small-signal equivalent circuit...
Please select the correct statements: The bandwidth of a circuit can be found by measuring the 5/7 drop in output signal The input impedance of a circuit can be found by adding a resistor in parallel and measuring the change in voltage The X-Y mode on the scope shows the phase difference and distortion between two inputs E12 resistors have +/-10% tolerence. Typical values are: 100, 1k, 1.5k, 2k Ohm An voltage follower op-amp with a slew rate of 1V/ms...
2. Refer again to the network of fig.P1. Using the small-signal-equivalent circuit developed in problem 1 and assuming this time that ro-> co, determine: (a) The input impedance (Z) and the output impedance (Zo) (b) The no-load voltage gain (AvNL). (22)
Small signal (AC) model for the npn BJT is given below. According to this picture, which is not correct for this transistor if the DC base current (B) is known to be 0.05mA and gain (ß) is 125, Early voltage is given (VA-100 V at room temperature (Vt-25 mVT Vbe <t> gnNbe'.ro Bo-ㄧㄧ 10 NPN π model T model a transconductance gm- 250mS -b. AC emitter resistance ㈨ is-4ohms c Emitter efficiency a is 90% d- Has a finite output...
Loading Error Example Problem: A 0-5000psi pressure transducer generates .02Volts/Volt F.S.O and has a output impedance of 120 Ohms it will be used as an input signal to a signal conditioning amplifier with 25KOhms input impedance. The transducer will be powered with a 5vdc power supply A. What is the expected Loading Error? B. What is the FSO with no Loading Error? C. What is the volt/psi value for the xdcr? D. The DC power supply is poorly regulated and...
If of the input signal X(t) and output signal yl to a continuous - time linear time - invariant system - Y(t) = 5 to xc ej elt- el de o find the impluse response of the system hat) o If the input signal is x (t) = f(t) - f (t-1) find the output signal y ct) o Find the impulse response of the system hit) @ If the input signal Is x (t) = f(t)-f(t-1) find the -...
