A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel...
A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel has a modulus of ela...

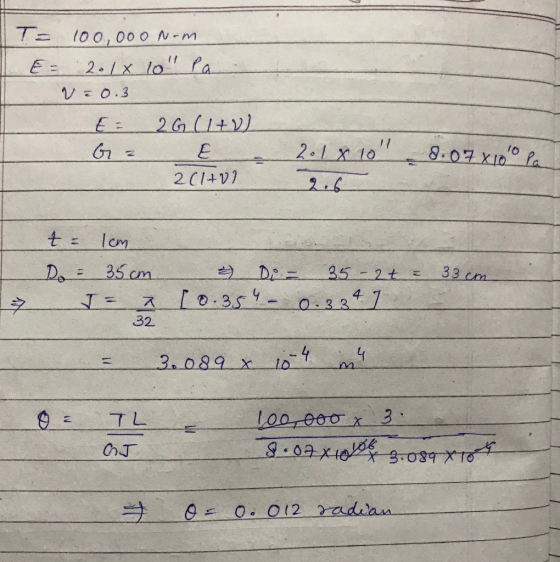

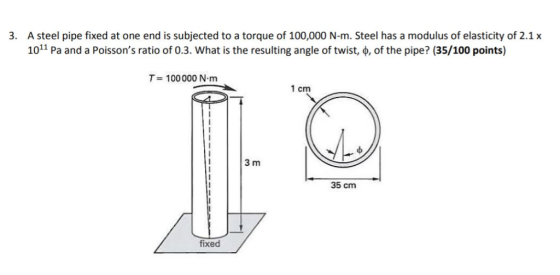

A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel has a modulus of elasticity of 2.1 x 1011 Pa and a Poisson's ratio of 0.3. What is the resulting angle of twist, φ, of the pipe? (35/100 points) 3. T 100000 N m 1 cm 3 m 35 cm fixed
A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel has a modulus of elasticity of 2.1...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks] a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks) a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
In all the questions below, the material is structural steel with or= 220 MPa, E =...
In all the questions below, the material is structural steel with or= 220 MPa, E = 200 GPa, v=0.3, and a = 12x10-6/°C. Question 1 The steel shaft in Figure 1 is subjected to the torques shown. Calculate: 1. The maximum torque (Tmax) that can be applied for the shaft to operate with a safety margin of 30% (Tresca). 2. The resulting angle of twist of plane B relative to A 3. The resulting angle of twist of plane C...
A solid steel bar of circular cross section has diameter d = 40 mm, length L...
A solid steel bar of circular cross section has diameter d = 40 mm, length L = 1.3 m and shear modulus of elasticity G = 80 GPa. The bar is subjected to torques T acting at the ends. If the torques have magnitude T = 340 Nm, what is the maximum shear stress in the bar? What is the angle of twist between the ends? If the allowable shear stress is 42 MPa and the allowable angle of twist...
In all the questions below, the material is structural steel with or= 220 MPa, E =...
In all the questions below, the material is structural steel with or= 220 MPa, E = 200 GPa, v=0.3, and a = 12x10-6/°C. Question 1 The steel shaft in Figure 1 is subjected to the torques shown. Calculate: 1. The maximum torque (Tmax) that can be applied for the shaft to operate with a safety margin of 30% (Tresca). 2. The resulting angle of twist of plane B relative to A 3. The resulting angle of twist of plane C...
A strip of high-strength steel has a length of 30 cm and a cross-section mm. The modulus of elasticity is 200 GPa, and Poisson's ratio is 0.27. It is subjected to axial load of 15,000 N, and is i...
A strip of high-strength steel has a length of 30 cm and a cross-section mm. The modulus of elasticity is 200 GPa, and Poisson's ratio is 0.27. It is subjected to axial load of 15,000 N, and is instrumented with 120 Ohm resistors in a half-bridge configuration. The supply voltage is 5 volts and the gage factor is 2. Find the output voltage in mv. of 1 by 20 mm 2-
A strip of high-strength steel has a length of...
Mechanics of Materials. Need Help (b) The A-36 solid steel shaft is 3.5 m long and...
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
5. A 38-mm-diameter solid steel shaft, 2 m long, is subjected to a torque of 600...
5. A 38-mm-diameter solid steel shaft, 2 m long, is subjected to a torque of 600 N.m, as shown below. The steel is AISI 1020 hot-rolled. Calculate a) The maximum torsional shear stress b) The angle of twist, ?, in degrees, ifG2 79.3 x 10"MPas 79.3 x 10, N/m2 Te TL Recall radian 57.3 32 JG
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60...
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel has a modulus of elasticity of 2.1 x 1011 Pa and a Poisson's ratio of 0.3. What is the resulting angle of twist, φ, of the pipe? (35/100 points) 3. T 100000 N m 1 cm 3 m 35 cm fixed
A steel pipe fixed at one end is subjected to a torque of 100,000 N-m. Steel has a modulus of elasticity of 2.1...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks] a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
The splined ends and gears attached to the A992 steel shaft are subjected to the torques shown. If the shaft has a diameter of 40 mm. [10 marks) a-Draw the torque diagram. [2 marks] b-Determine the angle of twist of end B with respect to end A. [3 marks] C- Determine the maximum shear stress the shaft is subjected to. [2 marks] d- If the allowable shear stress in the shaft is 300 MPa, and the allowable angle of twist...
In all the questions below, the material is structural steel with or= 220 MPa, E = 200 GPa, v=0.3, and a = 12x10-6/°C. Question 1 The steel shaft in Figure 1 is subjected to the torques shown. Calculate: 1. The maximum torque (Tmax) that can be applied for the shaft to operate with a safety margin of 30% (Tresca). 2. The resulting angle of twist of plane B relative to A 3. The resulting angle of twist of plane C...
In all the questions below, the material is structural steel with or= 220 MPa, E = 200 GPa, v=0.3, and a = 12x10-6/°C. Question 1 The steel shaft in Figure 1 is subjected to the torques shown. Calculate: 1. The maximum torque (Tmax) that can be applied for the shaft to operate with a safety margin of 30% (Tresca). 2. The resulting angle of twist of plane B relative to A 3. The resulting angle of twist of plane C...
A strip of high-strength steel has a length of 30 cm and a cross-section mm. The modulus of elasticity is 200 GPa, and Poisson's ratio is 0.27. It is subjected to axial load of 15,000 N, and is instrumented with 120 Ohm resistors in a half-bridge configuration. The supply voltage is 5 volts and the gage factor is 2. Find the output voltage in mv. of 1 by 20 mm 2-
A strip of high-strength steel has a length of...
Mechanics of Materials. Need Help
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T-524 Nm from the engine to the generator. Determine the angle of twist () of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa.
5. A 38-mm-diameter solid steel shaft, 2 m long, is subjected to a torque of 600 N.m, as shown below. The steel is AISI 1020 hot-rolled. Calculate a) The maximum torsional shear stress b) The angle of twist, ?, in degrees, ifG2 79.3 x 10"MPas 79.3 x 10, N/m2 Te TL Recall radian 57.3 32 JG
(b) The A-36 solid steel shaft is 3.5 m long and has a diameter of 60 mm. The shaft is used to transmit a torque of T=524 N·m from the engine to the generator. Determine the angle of twist (%) of the shaft. The shear modulus of elasticity (G) of the shaft material is 75 GPa. (10 points)
