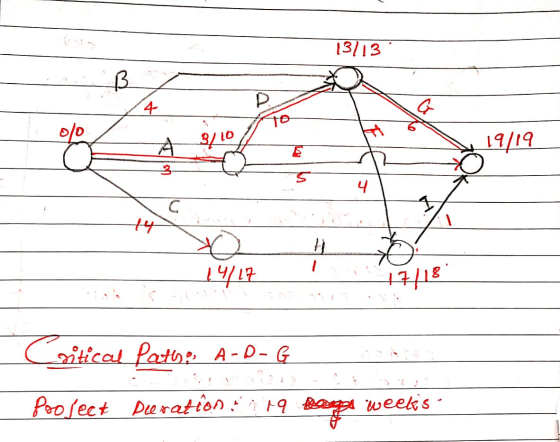

Homework Answers
| Activity | Duration | Es | EF | LS | LF | TF |
| A | 3 | 0 | 3 | 0 | 3 | 0 |
| B | 4 | 0 | 4 | 9 | 13 | 9 |
| C | 14 | 0 | 14 | 3 | 17 | 3 |
| D | 10 | 3 | 13 | 3 | 13 | 0 |
| E | 5 | 3 | 8 | 14 | 19 | 11 |
| F | 4 | 13 | 17 | 14 | 18 | 1 |
| G | 6 | 13 | 19 | 13 | 19 | 0 |
| H | 1 | 14 | 15 | 17 | 18 | 3 |
| I | 1 | 17 | 18 | 18 | 19 | 1 |
