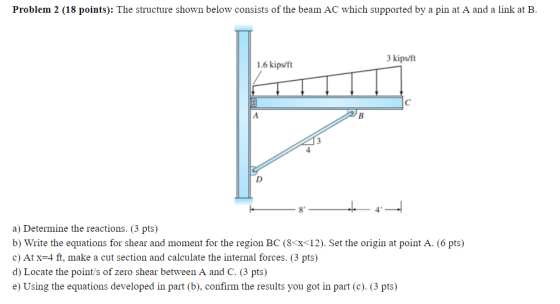

Problem 2 (18 points): The structure shown below consists of the beam AC which supported by...

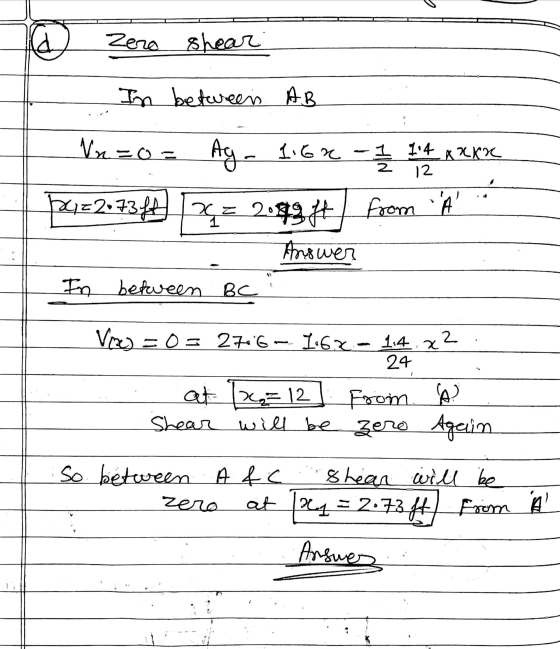

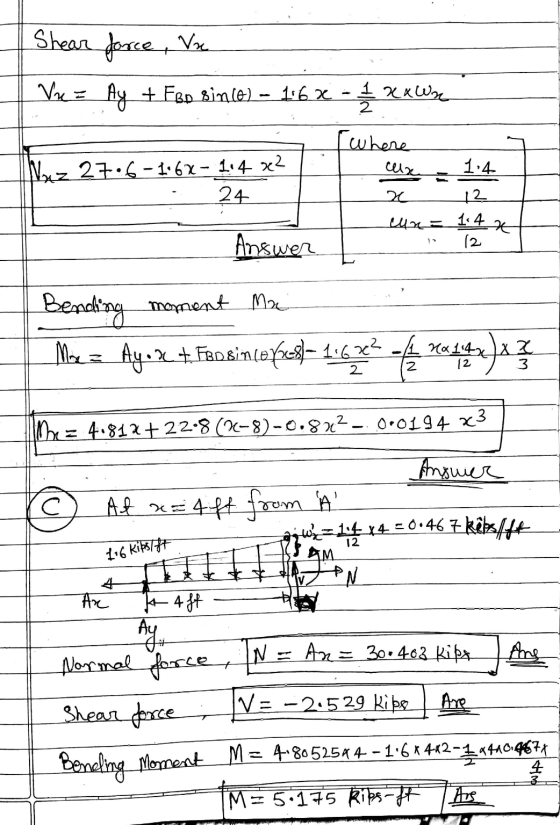

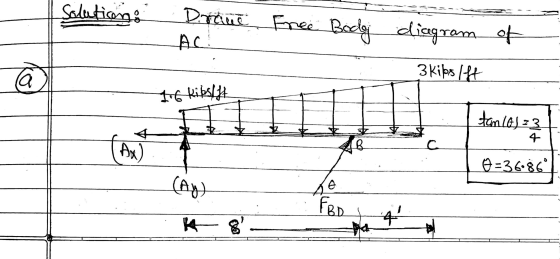

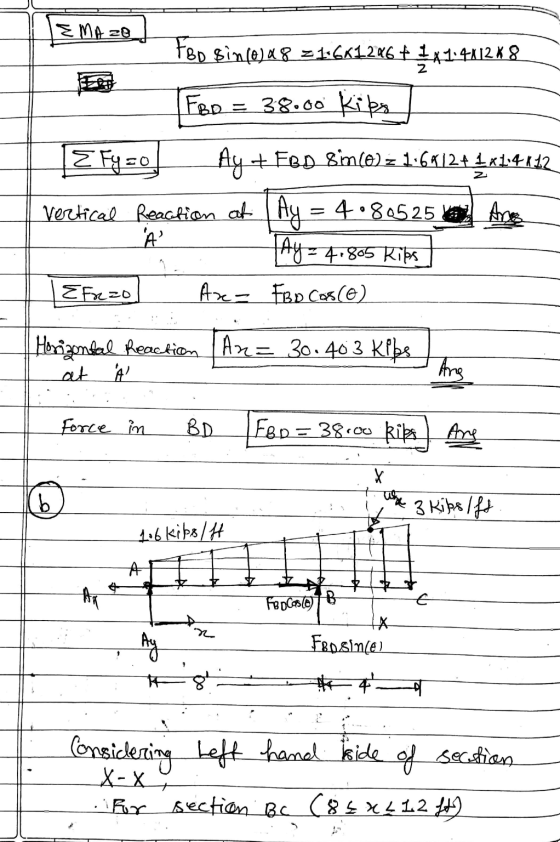

1) The uniform beam shown is supported by a pin at A and a light rope at B. A 1,000 lb weight is supported at C. Determine the normal force, shear force, and bending moment at point P. (15 p.) 30 3 А 2) The uniform beam shown is supported by a pin at and a roller at B. Using the analytical method (i.e., sections), construct the shear and moment diagrams. Write your equations V(x) and Mix) for each section...
1. For the simply supported beam subjected to the loading shown, Derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) a. b. Plot the shear-force and bending-moment diagrams for the beam using the derived functions c. Report the maximum bending moment and its location. 42 kips 6 kips/ft 10 ft 20 ft
3 ft, 3 ft 3 ft Problem 3. The beam is supported by a pin at point B and a roller at point E. A distributed load q = 1 kip/ft is applied across AC, and a point load P = 5 kips and counter-clockwise moment M = 9 kips . ft are applied at point D. Determine the reactions at the supports, and draw the shear and bending moment diagrams.
Question 2The beam is supported by a pin at A and a short link BC. If P= 15 kN, determine the average shear stress developed in the pins at A, B, and C. All pins are in double shear as shown, and each has a diameter of 18 mm.
Part 1 For the simply supported beam subfected to the loading shown, derive equations for the shear force V and the bending moment M for any location in the beam. (Place the origin at point A.) Let a-13.0 ft, b-5.0 ft, c-3.0 ft, w -9 kips/tt and M-160 kip-ft. Construct the shear-force and bending-murnent ??durams on paper and use?ie 'esults to answer the uuestions in the subsequent parts of this GO exertise. Calculate the reactian farces Ay and Cy acting...
Beam AB is supported as shown in the figure. Tie rod (1) is attached at B and C with double shear pin connections, while the pin at A is attached with a single shear connection. The pins at A, B, and C each have an ultimate shear strength of 52 ksi, and tie rod (1) has a yield strength of 30 ksi. A concentrated load of P 26 kips the beam as shown. A factor safety of 2.5 required for...
Consider the simply supported beam shown in the figure below. Let x be the distance measured from left end of the beam. 1. Determine the vertical reactions at A and C 2. Write the equations for shear and moment for the section of the member between B and C. 3. Draw the shear and moment diagrams for the entire beam, specifying values at changes in loading and locations where the shear is 0. 48 KN B kN/m D internal pin...
04 m 8 KN 2. A simply supported beam is shown below. a. b. c. Draw a proper FBD of the beam showing all the known and unknown forces acting on it. Determine the support reactions at A and B. Draw the shear (V) and bending moment (M) diagrams for the beam. 2500 lb 500 Ib/it 3 ft -3 ft 3 ft 3. Draw a proper FBD of member ABC showing all the known and unknown forces acting Determine the...
2 ft 5 ft 6 ft 23 points) The beam AB is subjected to the loadings shown?. This beam is supported by a double-sheared pin at A and a rod CB. If the failure normal stress is 60 ksi and the failure shear stress is 50 ksi, determine the minimum required diameter of the rod BC and pin at A, to the nearest 1/8”, if the factor of safety is 3. 630 lb.ft 225 lb/ft A E B 30° 200...
(40 pts) The simply supported beam shown in the figure below is being designed for shear. #3 stirrups (Grade 40) are to be used. 2. Wu = 4 kips/ft (includes self weight) wDL-1 kips/ft, wu 1.75 kips/ft h= 18" d = 15" L=20ft- fe-4000 psi Yoon- 150 lbf/t E-29,000 ksi fy60 ksi 2 IS Draw the factored shear envelope for Vu c. d. Determine the resistance to shear provided by the concrete. Are there any regions where no shear stirrups...
