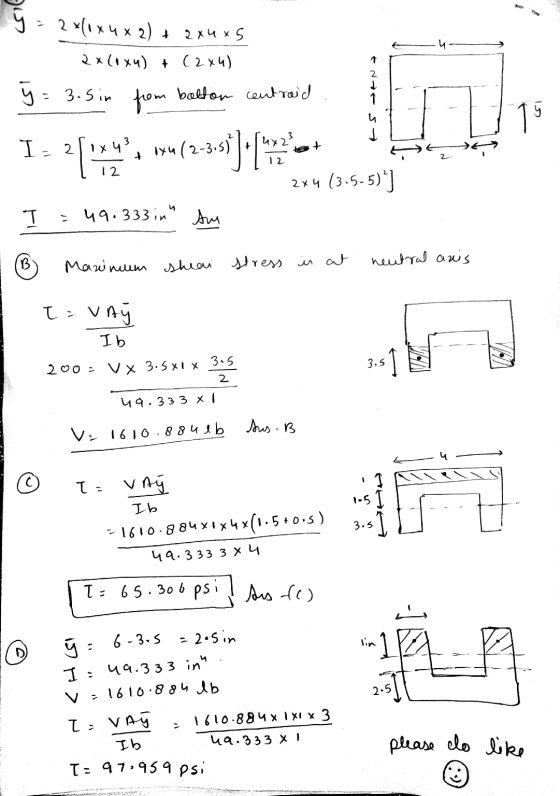

Homework Answers
Please don't forget to like ?
Add Answer to:

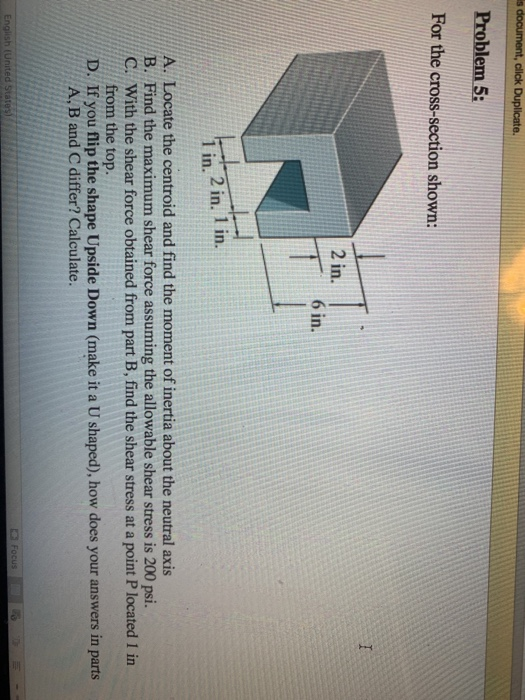

is document, click Duplicate. Problem 5: For the cross-section shown: I 2 in. 6 in. '1...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral a...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm....
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm. The centroid is 75 mm, h = 90 mm, t the beam are b 60 mm, h, at C and c 30 mm. At a certain section of the beam, the bending moment is M 5.4 kN m and the vertical shear force is V= 30 kN. (a) Show that the moment of inertia of the cross-section about the z axis (the neutral axis)...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a centroid y = 6.58 in as shown. Use shear force V 120 kip Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A TA 2 in *B B ΝΑ. 8 in 2 in 6.58 in D D 2 in 15 in (a) find the magnitude of the term Q at levels A, B, N.A., D. and E (b) find...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4 and a centroid y = 6.58 in as shown. Use shear force V = 120 kip. Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A A 2 in B B N.A. 8 in y = 6.58 in 2 in D D * 2 in E 15 in (a) find the magnitude of the term Q at levels A,...
Problem #2) Three boards that are glued together to form a single beam whose cross section...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed...
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed load over its entire 1.2m length. Specify the maximum allowable load if the beam is made from malleable iron, ASTM A220, class 80002. The allowable tensile stress is 164 MPa and allowable compressive stress is 412 MPa. The centroid of the section is located at 35 mm from the bottom and moment of inertia are Ix = 2.66 x 10 mm". (a) Draw loading...
PROBLEM 2: 40% A 6 kN force is exerted on the frame which has the T cross sectio analyze the states of stress at a section taken at 800 mm from the point of n shown below. It is required to 1. Fo...
PROBLEM 2: 40% A 6 kN force is exerted on the frame which has the T cross sectio analyze the states of stress at a section taken at 800 mm from the point of n shown below. It is required to 1. For the given T cross section, find the centroid and the area moment of inertia I,. 2. Draw the free body diagram of the free end of the frame and determine the interna loadings at the centroid of...
A beam is loaded by a shear force V. The beam cross-section is shown below. The...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
1) For hat shaped cross-section, with centroid C, is acted upon by a vertical shear V...
1) For hat shaped cross-section, with centroid C, is acted upon by a vertical shear V = 30 kN. If the centroidal moment of inertia for the cross-section is ī, = 3.92 x 10 mm, determine the (a) shear stress at a and (b) shear stress at the nuetral axis (20 pts) mm רוחו 46 mm 6 mm 60 mm 14 mm 30 mm mm 20 mm 28 mm 20 mm
The cross-section of a beam is shown below. The top rectanular piece of the cross-section is...
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
Problem 1 For the loaded beam with the cross-section shown: A. Find the location of the neutral axis B. Compute the moment of inertia of the section around the neutral axis C. Locate the section of maximum moment then compute the maximum stress due to bending, fb D. Locate the section of maximum shear-compute the shear stress at the neutral axis 3.0 k 8" 1.5 k/ft 1.0 k/ft 2" 8 10 ft 6 ft 4 ft 2" Cross-Section
Problem 1...
4. (30%) For a beam with a T-section as shown, the cross-sectional dimensions of 12 mm. The centroid is 75 mm, h = 90 mm, t the beam are b 60 mm, h, at C and c 30 mm. At a certain section of the beam, the bending moment is M 5.4 kN m and the vertical shear force is V= 30 kN. (a) Show that the moment of inertia of the cross-section about the z axis (the neutral axis)...
(10 points) The cross-section shown below has a moment of inertia I, 1829.60 in and a centroid y = 6.58 in as shown. Use shear force V 120 kip Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A TA 2 in *B B ΝΑ. 8 in 2 in 6.58 in D D 2 in 15 in (a) find the magnitude of the term Q at levels A, B, N.A., D. and E (b) find...
3. (10 points) The cross-section shown below has a moment of inertia I, = 1829.60 in4 and a centroid y = 6.58 in as shown. Use shear force V = 120 kip. Section Q (in) Shear Stress (ksi) A-A B-B Neutral Axis D-D E-E 20 in A A 2 in B B N.A. 8 in y = 6.58 in 2 in D D * 2 in E 15 in (a) find the magnitude of the term Q at levels A,...
Problem #2) Three boards that are glued together to form a single beam whose cross section is shown below. The moment acting about the z-axis is 1000 ft-lb and the vertical shear force is 400 lb. (20 points) a. Find the vertical centroid of the section, y. b. Find the moment of inertia of the section taken about a horizontal z-axis through the centroid. c. Determine the bending stress the wood must be able to resist assuming compression controls. d....
The simply-supported beam having I-beam cross-section as shown in figure is to carry a uniformly distributed load over its entire 1.2m length. Specify the maximum allowable load if the beam is made from malleable iron, ASTM A220, class 80002. The allowable tensile stress is 164 MPa and allowable compressive stress is 412 MPa. The centroid of the section is located at 35 mm from the bottom and moment of inertia are Ix = 2.66 x 10 mm". (a) Draw loading...
PROBLEM 2: 40% A 6 kN force is exerted on the frame which has the T cross sectio analyze the states of stress at a section taken at 800 mm from the point of n shown below. It is required to 1. For the given T cross section, find the centroid and the area moment of inertia I,. 2. Draw the free body diagram of the free end of the frame and determine the interna loadings at the centroid of...
A beam is loaded by a shear force V. The beam cross-section is
shown below. The moment of inertia of the cross-section is 347.1
in4. The centroid of the cross-section is 6.25 inches
from the base. Determine:
a) the shear stress at point A.
b) the shear stress at point B.
c) the maximum shear stress in the cross-section.
V = 50 (kips)
The maximum shear stress at point A is _____(ksi)
The maximum shear stress at point B is...
1) For hat shaped cross-section, with centroid C, is acted upon by a vertical shear V = 30 kN. If the centroidal moment of inertia for the cross-section is ī, = 3.92 x 10 mm, determine the (a) shear stress at a and (b) shear stress at the nuetral axis (20 pts) mm רוחו 46 mm 6 mm 60 mm 14 mm 30 mm mm 20 mm 28 mm 20 mm
The cross-section of a beam is shown below. The top rectanular
piece of the cross-section is a steel section 6 inches wide by 8
inches deep. The dimensions of the member are shown below in the
table. The cross-section is loaded in bending by a moment about the
zz-axis. The allowable bending stress of the cross-section is 42
(ksi).
Determine:
a) the elastic centroid of the cross-section.
b) the yield moment.
c) the plastic centroid of the cross-section
d) the...
