Homework Answers
Add Answer to:

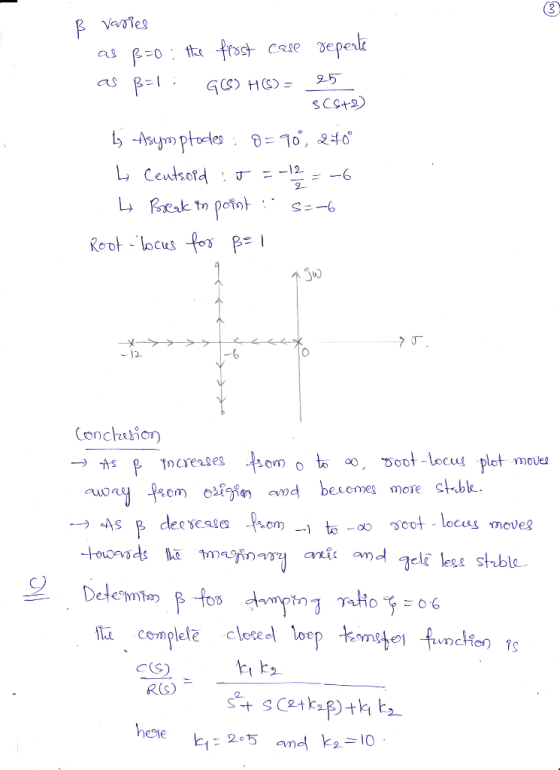

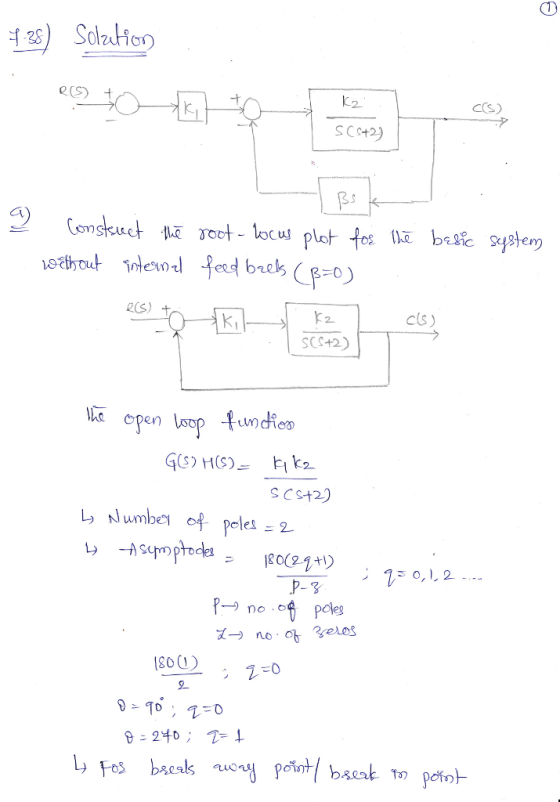

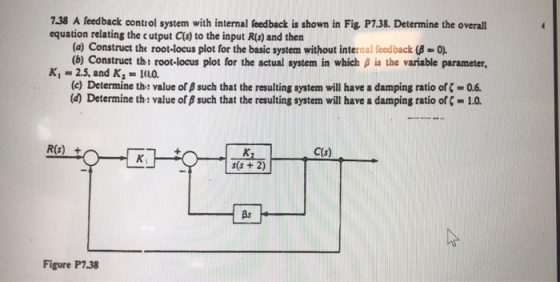

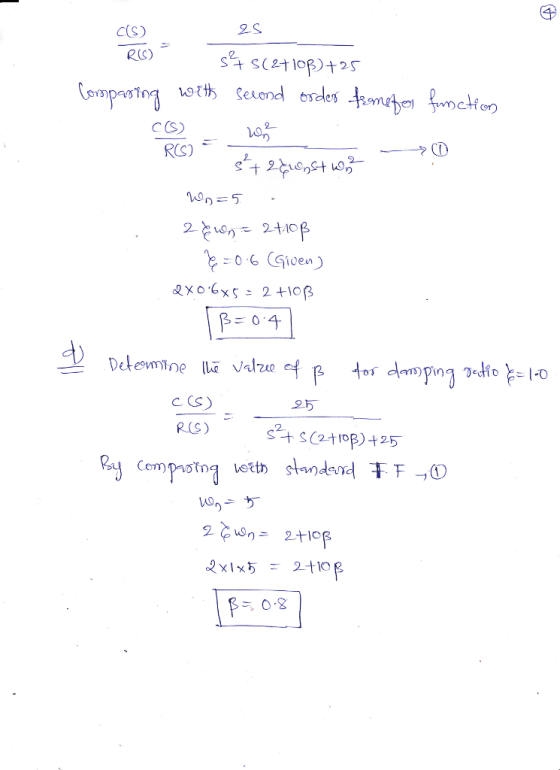

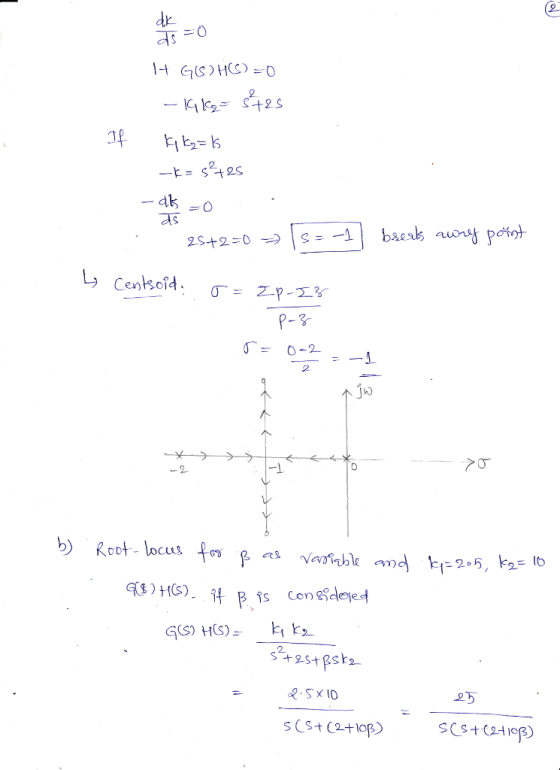

738 A leedback control system with internal feedback is shown in Fig P7.38. Determine the overall...
imaginary axis crossing points, respectively (l any).] 9.3 The figure below shows a feedback control system with internal rate compensation r(s) y(s) S(s +2) Bs (a) Set K1-2 and K2-5 and sketch th...
imaginary axis crossing points, respectively (l any).] 9.3 The figure below shows a feedback control system with internal rate compensation r(s) y(s) S(s +2) Bs (a) Set K1-2 and K2-5 and sketch the root locus with β the varied parameter where β> 0 (b) Can system be a marginally stable? if it is not marginally stable please explain why (c) Determine the value of B such that the closed loop system is critically damped.
imaginary axis crossing points, respectively (l...
Question 4 (a) A feedback control system with a proportional controller is shown in Figure Q4...
Question 4 (a) A feedback control system with a proportional controller is shown in Figure Q4 (a). (i) Sketch the root locus of the system, (ii) Design the proportional controller (choose the value of K) such that the damping ratio does not exceed 0.5 and the time constant is less than 1 second. [All necessary steps of root locus construction and controller design must be shown). C(s) R(S) + s(s+4)(s + 10) Figure Q4 (a). A feedback control system [11...
1. A system with unity feedback is shown below. The feed-forward transfer function is G(s). Sketch...
1. A system with unity feedback is shown below. The feed-forward transfer function is G(s). Sketch the root locus for the variations in the values of pi. R(9)+ 66) 69? Fig. 1: Unity-feedback closed-loop system G(s)= 100 s(s+ p) 2. The following closed-loop systems in Fig. 2 and Fig. 3 are operating with a damping ratio of 0.866 (S =0.866). The system in Fig. 2 doesn't have a PI controller, while the one in Fig. 3 does. Gain Plant R(S)...
Sketch the root locus plot of a unity feedback system with an open loop transfer function...
Sketch the root locus plot of a unity feedback system with an open loop transfer function G(s) = K / s (s+2) (s+4) Determine the value of K so that the dominant pair of complex poles of the system has a damping ratio of 0.5.
Matlab needs to be done by matlab Create a root locus plot to determine design a...
Matlab
needs to be done by matlab
Create a root locus plot to determine design a control system for the following system which has a standard negative unity feedback system. G(s) = K (s2 - 4s +20)/[(s+2)(s+4)] Damping ratio goal for the control system gain K is to maintain a 45% damping ratio, or zeta = 0.45. Select the gain, K, using the root locus software. O 0.211 O 0.417 0.987 O 1.97 At what gain K does the system...
(20) 2. Sketch the root-locus plot of a system shown in Fig. 2. Determine the origin...
(20) 2. Sketch the root-locus plot of a system shown in Fig. 2. Determine the origin and angles of asymptotes of the root loci. Find the points where root loci cross the imaginary axis and the value of K at the crossing points. G(S) = H(s)=1 s(s+1) (s?+ 4s +5) K R15 663 > 6) Fig. 2
Consider proportional feedback control as shown below. r(t) For each G(s) in the following problems A....
Consider proportional feedback control as shown below. r(t) For each G(s) in the following problems A. Sketch the root locus. Clearly show the open-loop poles and zeros, and the high-gain asymptotes on your sketch. Calculate the centroid to assure that the high gain asymptotes are accurate. B. If your sketch reveals any break-in or break-away points, calculate those location C. Does your sketch reveal a jo- crossing? If so, stability may be an issue. D. A damping ratio of 7-...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transf...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transfer function (6l K(s +2.5) (s2 + 2s 2) (s2 + 4s + 5) (a) Find the gain K that results in dominant roots with a damping ratio of 0.707. Sketch the root locus. (b) Find the actual percent overshoot and peak time for the gain K of part (a)
A robot force control system with unity feedback has a loop transfer function [6...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the d...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
actions in the forward path of a unity-feedback closed-loop system (CLS) are given E(s) = K + 25 , G(s)-8 (a) Plot t...
actions in the forward path of a unity-feedback closed-loop system (CLS) are given E(s) = K + 25 , G(s)-8 (a) Plot the root locus of the CLS for K20. (b) Determine K so that the CLS has a pair of complex poles with ( = 0.6 ) Find the unit sterp sponse of the CL.S with K as abhowe
actions in the forward path of a unity-feedback closed-loop system (CLS) are given E(s) = K + 25 , G(s)-8...
imaginary axis crossing points, respectively (l any).] 9.3 The figure below shows a feedback control system with internal rate compensation r(s) y(s) S(s +2) Bs (a) Set K1-2 and K2-5 and sketch the root locus with β the varied parameter where β> 0 (b) Can system be a marginally stable? if it is not marginally stable please explain why (c) Determine the value of B such that the closed loop system is critically damped.
imaginary axis crossing points, respectively (l...
Question 4 (a) A feedback control system with a proportional controller is shown in Figure Q4 (a). (i) Sketch the root locus of the system, (ii) Design the proportional controller (choose the value of K) such that the damping ratio does not exceed 0.5 and the time constant is less than 1 second. [All necessary steps of root locus construction and controller design must be shown). C(s) R(S) + s(s+4)(s + 10) Figure Q4 (a). A feedback control system [11...
1. A system with unity feedback is shown below. The feed-forward transfer function is G(s). Sketch the root locus for the variations in the values of pi. R(9)+ 66) 69? Fig. 1: Unity-feedback closed-loop system G(s)= 100 s(s+ p) 2. The following closed-loop systems in Fig. 2 and Fig. 3 are operating with a damping ratio of 0.866 (S =0.866). The system in Fig. 2 doesn't have a PI controller, while the one in Fig. 3 does. Gain Plant R(S)...
Matlab
needs to be done by matlab
Create a root locus plot to determine design a control system for the following system which has a standard negative unity feedback system. G(s) = K (s2 - 4s +20)/[(s+2)(s+4)] Damping ratio goal for the control system gain K is to maintain a 45% damping ratio, or zeta = 0.45. Select the gain, K, using the root locus software. O 0.211 O 0.417 0.987 O 1.97 At what gain K does the system...
(20) 2. Sketch the root-locus plot of a system shown in Fig. 2. Determine the origin and angles of asymptotes of the root loci. Find the points where root loci cross the imaginary axis and the value of K at the crossing points. G(S) = H(s)=1 s(s+1) (s?+ 4s +5) K R15 663 > 6) Fig. 2
Consider proportional feedback control as shown below. r(t) For each G(s) in the following problems A. Sketch the root locus. Clearly show the open-loop poles and zeros, and the high-gain asymptotes on your sketch. Calculate the centroid to assure that the high gain asymptotes are accurate. B. If your sketch reveals any break-in or break-away points, calculate those location C. Does your sketch reveal a jo- crossing? If so, stability may be an issue. D. A damping ratio of 7-...
A robot force control system with unity feedback has a loop transfer function [6 7.11 Tood transfer function (6l K(s +2.5) (s2 + 2s 2) (s2 + 4s + 5) (a) Find the gain K that results in dominant roots with a damping ratio of 0.707. Sketch the root locus. (b) Find the actual percent overshoot and peak time for the gain K of part (a)
A robot force control system with unity feedback has a loop transfer function [6...
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot and determine the K value such that the damping ratio of a pair of dominant complex-conjugate closed-loop poles is 0.5. Ri)1 C(s)
3. Consider the system shown below. For this system. G(s) s(s+1)(s 2) H(s)1 We assume that the value of the gain K is nonnegative. Sketch the root locus plot...
actions in the forward path of a unity-feedback closed-loop system (CLS) are given E(s) = K + 25 , G(s)-8 (a) Plot the root locus of the CLS for K20. (b) Determine K so that the CLS has a pair of complex poles with ( = 0.6 ) Find the unit sterp sponse of the CL.S with K as abhowe
actions in the forward path of a unity-feedback closed-loop system (CLS) are given E(s) = K + 25 , G(s)-8...
