Homework Answers
Add Answer to:

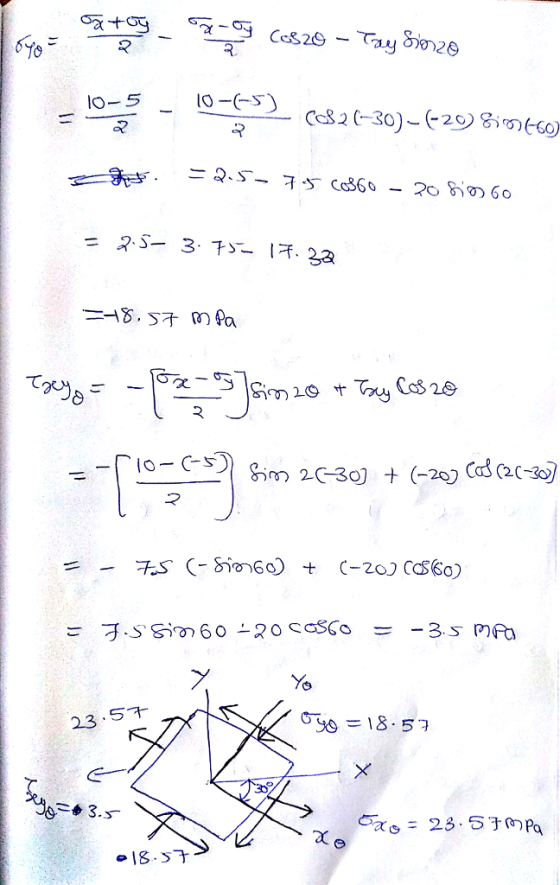

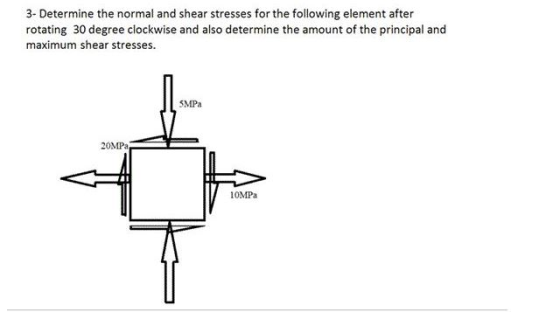

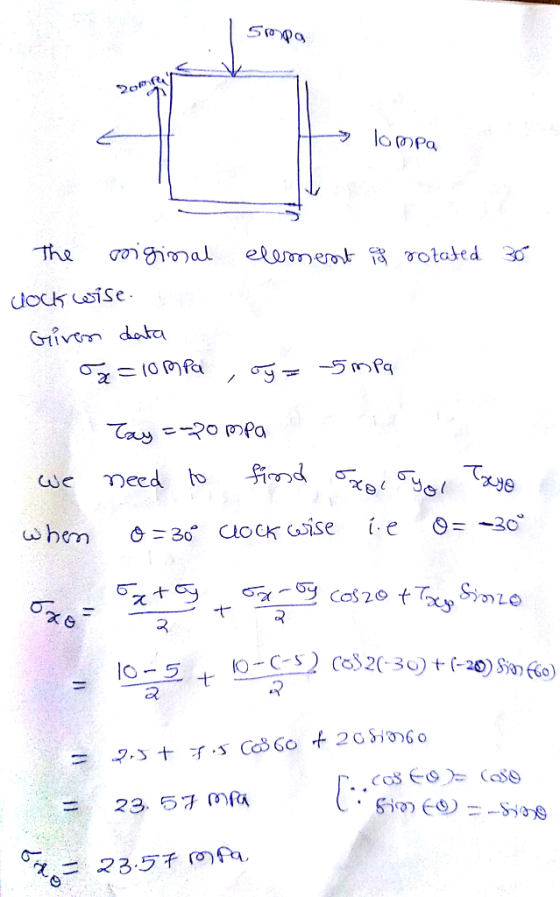

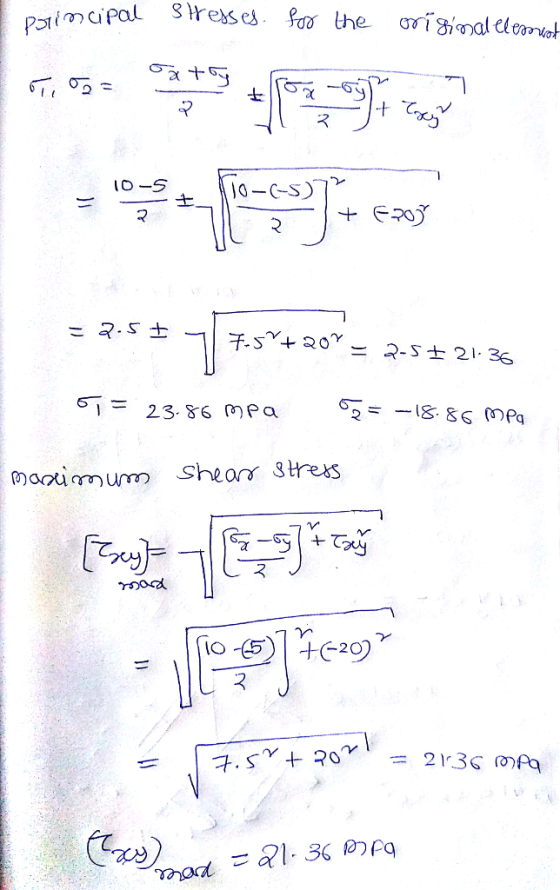

3- Determine the normal and shear stresses for the following element after rotating 30 degree clockwise...
Question 3 Determine the orientation of the plane, the principal stresses, maximum shear stress and normal...
Question 3 Determine the orientation of the plane, the principal stresses, maximum shear stress and normal stress in the element? 200 MPa 100 MP 150 MPa
Using Mohr's circle determine for the below differential element: a) the principal stresses and the plan...
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
Determine the principal stresses, the maximum in-plane shear stress, and average normal stress. Specify the orienta...
Determine the principal stresses, the maximum in-plane shear stress, and average normal stress. Specify the orientation of the element in each case. 20 MPa 80 MPa 30 MPa
Question 5 Stress Transformation 30 The stresses acting on element A in the web of a...
Question 5 Stress Transformation 30 The stresses acting on element A in the web of a train rail are found to be 52 MPa tension in the horizontal direction and 130 MPa compression in the vertical direction, as shown in Figure 7 below. Also, shear stresses of magnitude 60 MPa act in the directions shown. (a) Determine the stresses acting on an element oriented at a counter-clockwise angle of 48° from the horizontal. Show these stresses on a sketch of...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on...
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on element B and show these on a sketch of a properly oriented element. b) Determine the principal stresses and show these on a sketch of a properly oriented element. c) Determine the maximum and minimum shear stresses and associated normal stresses and show these on a sketch of a properly oriented element. у Y1 4.0 MPa 2.0 MPa A B 35° 1 1.0 MPa...
4. (a) Find the normal and shear stresses on the plane indicated on the element. (6)...
4. (a) Find the normal and shear stresses on the plane indicated on the element. (6) Sketch Mohr's circle. (b) Determine the principal planes and the principal stresses using Mohr's circle approach. Sketch the results. (25 points) .80 M Pa 120 MPa •40 MPa
EXERCISE 7 (10 PTS) (A) Determine the normal and shear stresses acting on the plane for...
EXERCISE 7 (10 PTS) (A) Determine the normal and shear stresses acting on the plane for a - 30°. You are required to use the Pole Method by plotting all your graphical constructions to exact scale Given the stresses acting on an infinitesimal element of soil in the field, as shown below (B) Using the same construction from part (A), determine the major and minor principal stresses, illustrating the orientation of the corresponding planes on which the act (C) Using...
Draw and use Mohr's circle to determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress
Draw and use Mohr's circle to determine (a) the principal stresses and (b) the maximum in-plane shear stress and average normal stress. Specify the orientation of the element in each case.
Given the state of stress for the element below, determine the shear and normal stresses if...
Given the state of stress for the element below, determine the shear and normal stresses if the element is rotated 50° counterclockwise. Use Mohr's circle to solve. iXy Answer(s): xy xy xy xy
Question 3 Determine the orientation of the plane, the principal stresses, maximum shear stress and normal stress in the element? 200 MPa 100 MP 150 MPa
Using Mohr's circle determine for the below differential
element:
a) the principal stresses and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
b) the maximum shear stress and the plan on which they act. Show
the stresses on a properly oriented differential element. Label all
stresses.
c) the stresses on a differential element 40 degrees clockwise
from the original element. Show the stresses on a properly oriented
differential element. Label...
Determine the principal stresses, the maximum in-plane shear stress, and average normal stress. Specify the orientation of the element in each case. 20 MPa 80 MPa 30 MPa
Question 5 Stress Transformation 30 The stresses acting on element A in the web of a train rail are found to be 52 MPa tension in the horizontal direction and 130 MPa compression in the vertical direction, as shown in Figure 7 below. Also, shear stresses of magnitude 60 MPa act in the directions shown. (a) Determine the stresses acting on an element oriented at a counter-clockwise angle of 48° from the horizontal. Show these stresses on a sketch of...
Part A - Normal Stresses, Shear, and Angles The stress element shown in the figure below is subjected to the indicated stresses of magnitude 0,1 = 35 MPa, oyl = 57 MPa, and Tryl = 41 MPa Oy Txy Determine the principal normal stresses 01 and 02, the maximum in-plane shear stress Tmax,in-plane, and the angles at which they occur relative to the given stress element. Follow the sign convention. Suppose that when the element is oriented at an angle...
The stresses on element A are as shown. Using Mohrs circle: a) Determine the stresses on element B and show these on a sketch of a properly oriented element. b) Determine the principal stresses and show these on a sketch of a properly oriented element. c) Determine the maximum and minimum shear stresses and associated normal stresses and show these on a sketch of a properly oriented element. у Y1 4.0 MPa 2.0 MPa A B 35° 1 1.0 MPa...
4. (a) Find the normal and shear stresses on the plane indicated on the element. (6) Sketch Mohr's circle. (b) Determine the principal planes and the principal stresses using Mohr's circle approach. Sketch the results. (25 points) .80 M Pa 120 MPa •40 MPa
EXERCISE 7 (10 PTS) (A) Determine the normal and shear stresses acting on the plane for a - 30°. You are required to use the Pole Method by plotting all your graphical constructions to exact scale Given the stresses acting on an infinitesimal element of soil in the field, as shown below (B) Using the same construction from part (A), determine the major and minor principal stresses, illustrating the orientation of the corresponding planes on which the act (C) Using...
Given the state of stress for the element below, determine the shear and normal stresses if the element is rotated 50° counterclockwise. Use Mohr's circle to solve. iXy Answer(s): xy xy xy xy
