If methane (assumed to be in its ideal-gas state) is compressed adiabatically from 20 degree celcius...

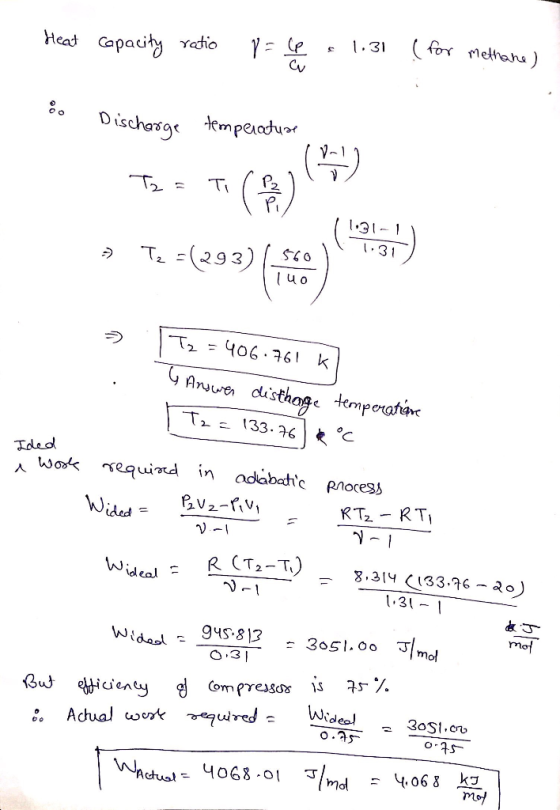

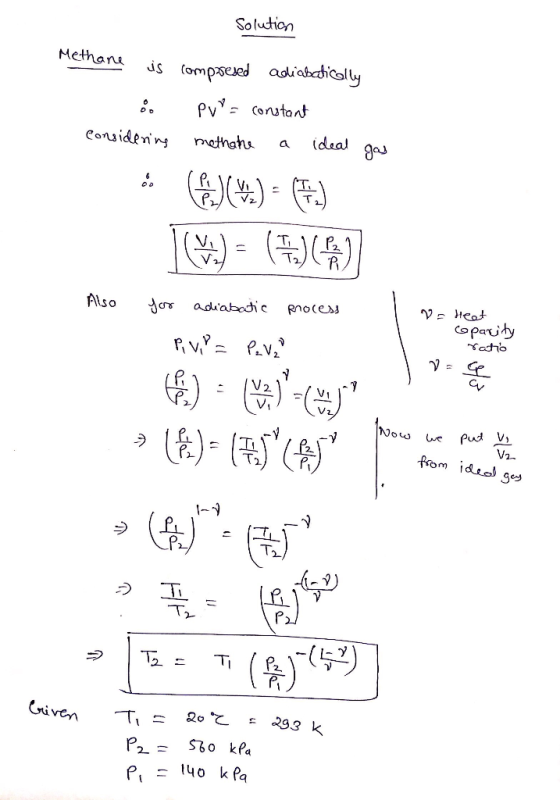

If methane (assumed to be in its ideal-gas state) is compressed adiabatically from 20 degree celcius and 140 kPa to 560 kPa, estimate the work requirement and the discharge temperature of the methane. The compressor efficiency is 0.75.
Homework Answers
Add Answer to:
If methane (assumed to be in its ideal-gas state) is compressed
adiabatically from 20 degree celcius...
7.35. Methane is compressed adiabatically in a pipeline pumping station from 3500 kPa and 35°C to...
7.35. Methane is compressed adiabatically in a pipeline pumping station from 3500 kPa and 35°C to 5500 kPa at a rate of 1.5 kg mol⋅s−1. If the compressor efficiency is 0.78, what is the power requirement of the compressor and what is the discharge temperature of the methane?
A monatomic ideal gas at an initial temperature of 390 K is compressed adiabatically from an...
A monatomic ideal gas at an initial temperature of 390 K is compressed adiabatically from an initial volume of 120 L to a final volume of 40.0 L. What is the final temperature of the gas?
Air is compressed steadily and adiabatically from 17 C and 97 kPa to 276 C and...
Air is compressed steadily and adiabatically from 17 C and 97 kPa to 276 C and 604 kPa. Assuming constant specific heats for air at room temperature, what is the isentropic efficiency of the compressor?
One mole of ideal gas initially at 27 degree C is compressed adiabatically from 6 dm^3...
One mole of ideal gas initially at 27 degree C is compressed adiabatically from 6 dm^3 to 3 dm^3 against constant external pressure of 15 atm. Calculate Delta E, Delta H, Q, and W for this process.
In an engine, an almost ideal gas is compressed adiabatically (see Note below) to half its...
In an engine, an almost ideal gas is compressed adiabatically (see Note below) to half its volume. In doing so, 2630 Joules of work is done on the gas. (a) How much heat flows into or out of the gas? (b) What is the change in internal energy of the gas? (c) Does its temperature rise or fall? Note: An adiabatic process is one that occurs without transfer of heat or matter between a thermodynamic system and its surroundings. In...
In an engine, an almost ideal gas is compressed adiabatically to half its volume. In doing...
In an engine, an almost ideal gas is compressed adiabatically to half its volume. In doing so, 2900 J of work is done on the gas. How much heat flows into or out of the gas? Q- Submit Request Answer Part B What is the change in internal energy of the gas? Submit Request Answer
Two mole of ideal gas, is compressed adiabatically in a piston/cylinder device from 2 bar and...
Two mole of ideal gas, is compressed adiabatically in a piston/cylinder device from 2 bar and 25oC to 7 bar. The process is irreversible and requires 25% more work than a reversible, adiabatic compression from the same initial state to the same final pressure. What is the entropy change of the gas? Assume Cv=(5/2)R in this calculation.
1. (3 Points) Air (as an ideal gas) is compressed in an adiabatic compressor from an...
1. (3 Points) Air (as an ideal gas) is compressed in an adiabatic compressor from an initial state of 100 kPa and 300K to a final state of at 200 kPa and 600K. Determine the change in specific entropy of air during this compression process. 2. (3 Points) A heat engine operates between two temperature limits of 1300 K and 400 K. It receives 1.2 MJ of heat while producing 500 kJ of useful work. Determine: a. The exergy of...
An ideal diatomic gas in a cylinder at 1 atm and 300 K is adiabatically compressed...
An ideal diatomic gas in a cylinder at 1 atm and 300 K is adiabatically compressed to 1/10th its original volume. What is the final T? How much work was done in the gas to compress it? Why would there be a difference in the computations if the ideal gas were monatomic?
A monatomic ideal gas (γ =1.67) is compressed adiabatically to one-twentieth its initial volume with P1...
A monatomic ideal gas (γ =1.67) is compressed adiabatically to one-twentieth its initial volume with P1 = 1.00 atm. What is the final pressure? Assuming T1=300K, What is T2(final temperature)?
One mole of ideal gas initially at 27 degree C is compressed adiabatically from 6 dm^3 to 3 dm^3 against constant external pressure of 15 atm. Calculate Delta E, Delta H, Q, and W for this process.
In an engine, an almost ideal gas is compressed adiabatically to half its volume. In doing so, 2900 J of work is done on the gas. How much heat flows into or out of the gas? Q- Submit Request Answer Part B What is the change in internal energy of the gas? Submit Request Answer
1. (3 Points) Air (as an ideal gas) is compressed in an adiabatic compressor from an initial state of 100 kPa and 300K to a final state of at 200 kPa and 600K. Determine the change in specific entropy of air during this compression process. 2. (3 Points) A heat engine operates between two temperature limits of 1300 K and 400 K. It receives 1.2 MJ of heat while producing 500 kJ of useful work. Determine: a. The exergy of...
