A goldfish is swimming inside a spherical bowl of water having an index of refraction n 1.333. Suppose the goldfish is p cm from the wa of a bowl of radius IR as in the 11.0 16.8 Cm figure below. Neglecting the refraction of light caused by the wall of the bowl, determine the apparent distance of the goldfish from the wall according to an observer outside the bowl. cm behind the glass Observer

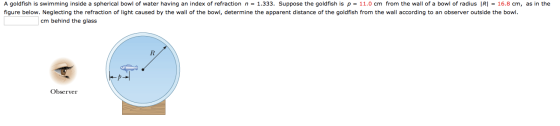

A goldfish is swimming inside a spherical bowl of water having an index of refraction

n = 1.333.

Suppose the goldfish is

p = 11.0 cm

from the wall of a bowl of radius

|R| = 16.8 cm,

as in the figure below. Neglecting the refraction of light caused by the wall of the bowl, determine the apparent distance of the goldfish from the wall according to an observer outside the bowl.
cm behind the glass

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

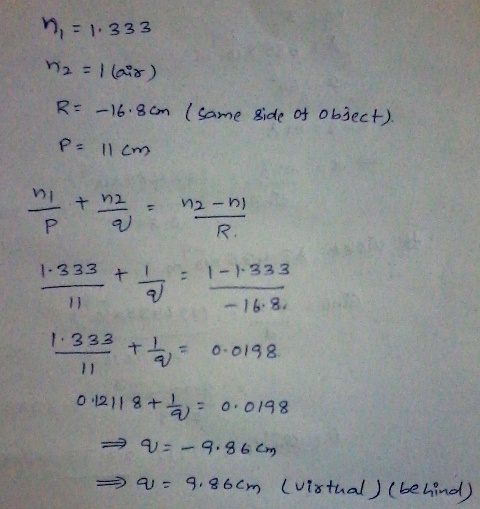

,-1.333 R6.8on(same gide ot ob3ec+) vi 1-333 1333 -168 1.333 = 0.0198 11 ,可 0.12 I 18 0.019 8

0 0
