A glass sphere has radius R = 6.4 cm and index of refraction 1.6. A paperweight...

A glass sphere has radius R = 6.4 cm and index of refraction 1.6. A paperweight is constructed by slicing through the sphere along a plane that is 2.0 cm from the center of the sphere, leaving height h = 4.4 cm. The paperweight is placed on a table and viewed from directly above by an observer who is distance d = 9.3 cm from the tabletop (the figure below). When viewed through the paperweight, how far away does the tabletop appear to be to the observer?

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

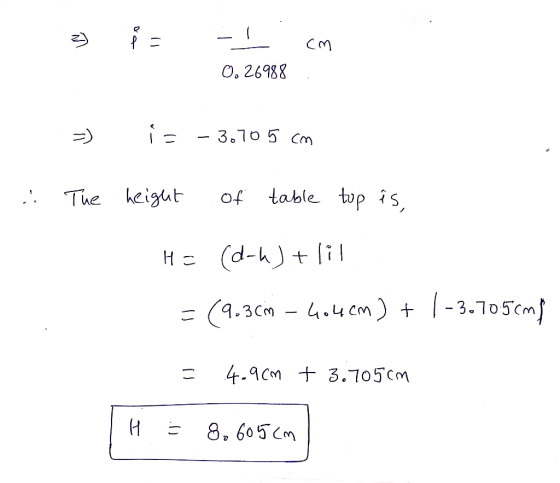

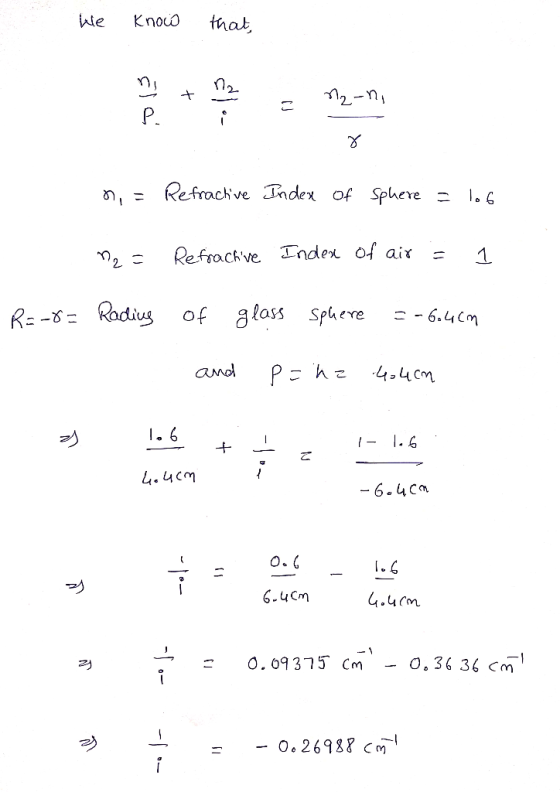

The answer for above problem is explained below.

0 0
