4.16 The circuit of Fig. P4.16a contains a JK flip-flop and a D flip-flop. Complete the...

Question

Question

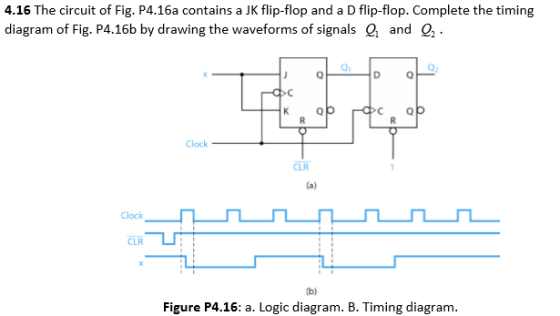

4.16 The circuit of Fig. P4.16a contains a JK flip-flop and a D flip-flop. Complete the timing diagram of Fig. P4.16b by draw

engineering Electrical-Engineering

Answer 1

Answer #1

0 cle no J = K = x 2 = Q, 2 - It can be. I exther o oni

Answer 2

Similar Homework Help Questions

Complete the timing diagram of Fig. P4.14b by drawing the waveforms of signals 4.14 The circuit...

Complete the timing diagram of Fig. P4.14b by drawing the waveforms of signals 4.14 The circuit of Fig. P4.14a contains a D latch, a positive-edge-triggered D flip-flop, and a negative-edge-triggered D flip-flop. Complete the timing diagram of Fig. P4.14b by drawing the waveforms of signals,, and y FI D O Clack Clock Figure P4.14: a. Logic diagram. B. Timing diagram.
Configure a JK flip flop to act as a 'T' flip flop and complete th p...

Configure a JK flip flop to act as a 'T' flip flop and complete th p to act as a 'T' flip flop and complete the logic diagram below for based on four pulses created win the pusa Duwon, with I held high, assuming starts at 0. Cik Research Question to be answered in the lab notebook: Looking at the waveforms just completed, while the flip flop is toggling w relationship of the frequency of Q to the frequency of...
Question 3. [20 marks a) Convert a JK - Flip Flop into a D- Flip Flop...

Question 3. [20 marks a) Convert a JK - Flip Flop into a D- Flip Flop [10 marks] b) Given the following JK - Flip Flop Preset dCLK K Clear Clearo Preset J K C CLK 1 Figure 2. Timing Diagram Sketch the output waveform Q in Figure 2. [10 marks C

1. The D Flip-Flop ) Look for the datasheet of the 7474 D flip-flop and wire it on the breadboard...

1. The D Flip-Flop ) Look for the datasheet of the 7474 D flip-flop and wire it on the breadboard making sure to supply 5V to both Preset and Clear. Utilize the function generator to provide a Clock signal of 1 Hz: i) Press AMPL and set value to 5 Vpp ii) Press FREQ and set value to 1 Hz ili) Press OFFSET and set value to 2.5 V This Clock signal will be the same for all circuits in...
please show all work JK Flip-Flop S R Flip-Flop From(Q) To (Q+) S 0 0 R...

please show all work JK Flip-Flop S R Flip-Flop From(Q) To (Q+) S 0 0 R T Flip-Flop From(Q) To(Q+) 0 0 JK From(Q 0 To (Q+) 0 -- - c) Complete the timing diagram below. Assume that both of flip-flops are edge triggered. (10 pts) Clock
Problem 04: JK Flip-Flop Timing Diagrams (A) Compete the timing diagram shown in Figure 3 for a J...

Problem 04: JK Flip-Flop Timing Diagrams (A) Compete the timing diagram shown in Figure 3 for a JK Flip Flop. Assume that the flip lop outpat starts in the low position outpat starts in the low position outpat starts in the low position. (B) Complete the timing dingram shown in Figure 4 for a JK Flip Flop. Assume that the lip Blop (C) Complete the timing dingram shown in Figure 5 for a JK Flip-Flop. Asume that the flip-flop Figure...

Please give me explanation. The JK flip-flop 1. The figure below is a timing diagram for...

Please give me explanation. The JK flip-flop 1. The figure below is a timing diagram for the J, K, and clock inputs of a positive edge-triggered JK-flip-flop. Draw the corresponding Q and Q' outputs. (4 points) clockoUU Q'
7. JK flip-flops are often used to build counters. The JK flip-flop will toggle the original...

7. JK flip-flops are often used to build counters. The JK flip-flop will toggle the original output value when triggered by the clock signal if both the J.K inputs are connected with a constant "high"(logic 1). Suppose all the JK flip-flops in following Figure are positive edge triggered. The edges of the CLOCK are marked out in the figure. All the Qs have initial value 0. HIGH IFE CLOCK-HCL LK 000 0 0 0 Figure. Counter (a) Sketch the output...
UUUUWW PUCH ( WIN) (1) Flip Flop Operation: a. Given the following D Flip Flop circuit...

UUUUWW PUCH ( WIN) (1) Flip Flop Operation: a. Given the following D Flip Flop circuit and Function Table, complete the timing diagram for Q. Function Table Outputs Inputs CLR XXX III II XXX IX (Note 1) (Note 1) - HE HIGH Logie Level XEther LOW HIGH Logic Level LLOW Loge Level Positive going transition of the clock The output logic level of before the indicated in conditions were established Note: This conti ophen the preset and for clear inputs...

need it Circuit 1 (JK Flip Flop): (a) Simulate on Multisim a JK Flip Flop that makes use of a single D Flip Flop plus any necessary additional gates. (b)Physically build the JK Flip Flop of part (...

need it Circuit 1 (JK Flip Flop): (a) Simulate on Multisim a JK Flip Flop that makes use of a single D Flip Flop plus any necessary additional gates. (b)Physically build the JK Flip Flop of part (a) on the CADET. Circuit 1 (JK Flip Flop): (a) Simulate on Multisim a JK Flip Flop that makes use of a single D Flip Flop plus any necessary additional gates. (b)Physically build the JK Flip Flop of part (a) on the CADET.
