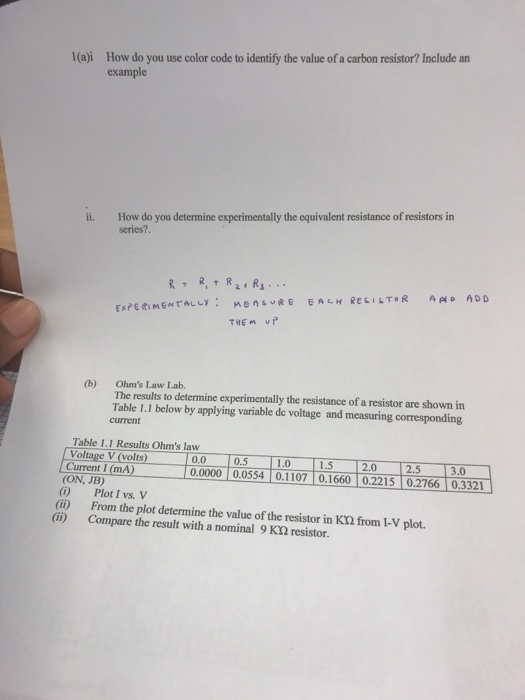

![1(aji How do you use color code to identify the value of a carbon resistor? Include an example ii. How do you determine experimentally the equivalent resistance of resistors in series?. Ohms Law Lab. The results to determine experimentally the resistance of a resistor are shown in Table 1.1 below by applying variable de voltage and measuring corresponding current (b) Table 1.1 Results Ohms law Voltage V (volts) 0.0 0.5 1.0 1.5 12.0 2.5 3.0 Current I(mA) (ON, JB) 0.0000 | 0.0554 | 0.1107 | 0.1660 | 0.2215ー.2766 ] 0.3321 (i) Plot I vs. V Gi) (ii) From the plot determine the value of the resistor in K2 from I-V plot. Compare the result with a nominal 9 K2 resistor.](http://img.homeworklib.com/questions/7063fc70-cb62-11eb-b36e-dbc8ebc89428.png?x-oss-process=image/resize,w_560)

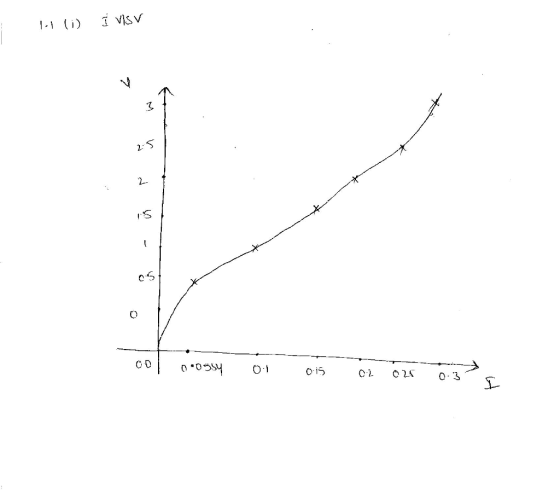

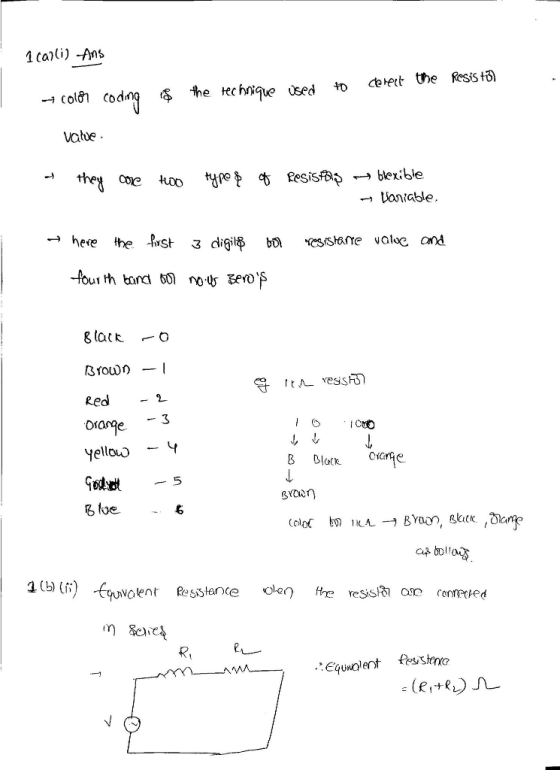

Homework Answers
Add Answer to:
1(aji How do you use color code to identify the value of a carbon resistor? Include...
Help with completing the table please?? MPF102 Table 8-1 Listed Measured Value Value Resistor Drain Source...
Help with completing the table please??
MPF102 Table 8-1 Listed Measured Value Value Resistor Drain Source Gate R1 10 kQ 1000 R2 100 2 D R. wWr 10 k2 Уро MPF102 H= VIR With Vps at 1.0 V, measure the voltage across R2 (VR2). Compute the drain current, ID, by applying Ohm's law to R2. Note that the current in R2 is the same as Ip for the transistor. Use the measured voltage, VR2, and the measured resistance, R2, to...
3.4 Preliminary Assignment 1) The following table contains current/voltage pairs of points as determined from an...
3.4 Preliminary Assignment 1) The following table contains current/voltage pairs of points as determined from an experiment to verify Ohm's Law. A) Use graph paper and plot these points as voltage vs. current B) Does this device follow Ohm's Law? How do you know? C) Determine the value of the resistor used in this circuit. Current (Amps) -0.227 -0.180 -0.070 -0.022 +0.054 +0.126 +0.185 +0.258 Voltage (Volts) -2.320 -1.847 -0.721 -0.203 +0.586 +1.329 +1.937 +2.680 resistor. The 2) A (20.10.2),...
How do I calculate the “calculated current flowing through each resistor using Kirchhoffs junction rule and...
How do I calculate the
“calculated current flowing through each resistor using Kirchhoffs
junction rule and the measured values”? Please show your work.
Thank you!
Old Dominion University Physics 112 & 232 Lab 2. Use the EXTECH Digital M measure the individual resi "orange, black, brown" band Turn on the DMM and turn 2000 Ω position. 2 V 1.5 V Using wire leads with ab and alligator clip on opp banana plug end of a red wi 2) jack, and...
Use the exact values you enter to make later calculations. Part A A group of students...
Use the exact values you enter to make later calculations. Part A A group of students performed the same "Ohm's Law" experiment that you did in class. They obtained the following results: Trial ΔV (volts) I (mA) 1 1.00 5.3 2 1.90 9.5 3 3.00 16.3 4 4.00 20.6 5 4.90 25.3 where ΔV is the voltage difference across the resistor and I is the current traveling through the resistor at the same time. (a) Analyze the data. (You will...
Write units wherever necessary. Describe in 3-4 sentences how you would use Ohms Law to determine...
Write units wherever necessary. Describe in 3-4 sentences how you would use Ohms Law to determine the resistance of an unknown resistor. Tabulate your Voltage and Current values on Excel. Use this data to graphically determine the resistance value. Make a new observation table as shown below to summarize your results. Measured resistance value Graphical resistance value
Part A A group of students performed the same "Ohm's Law" experiment that you did in...
Part A A group of students performed the same "Ohm's Law" experiment that you did in class. They obtained the following results: Trial ΔV (volts) I (mA) 1 1.00 20.5 2 2.10 42.0 3 2.90 57.5 4 3.90 78.0 5 4.90 98.0 where ΔV is the voltage difference across the resistor and I is the current traveling through the resistor at the same time. (a) Analyze the data. (You will not submit this spreadsheet. However, the results will be needed...
Need help with conclusion questions please 1. The objectives of this lab are (1) to determine...
Need help with conclusion questions please
1. The objectives of this lab are (1) to determine the actual (A) total resistance of three resistors connected in series and compare it with the experimental (E ) value of total resistance (2) to determine the actual (A) total resistance of three resistors connected in parallel and compare it with the experimental(E ) value of total resistance II. Apparatus(Equipment): Voltage source, ammeter that measures current , voltmeter that measures voltage. II. Procedure: Three...
In this Lab you would connect resistors in various combinations then use the multi- meter to...
In this Lab you would connect resistors in various combinations then use the multi- meter to measure various currents and voltages. I have copied the schematics of the various circuits from the lab and completed portions of the data table with hypothetical (but highly probable) answers. Your task is to complete the data tables and answer the following questions. The value of a resistor can be determined by reading the colored stripes on the resistor. The color codes are given...
1. adapted from Prob. 5, p. 298-299, Brown's Introductory Physics II) Consider the second diagram on...
1. adapted from Prob. 5, p. 298-299, Brown's Introductory Physics II) Consider the second diagram on p. 298. The solenoid has N turns, length / (L in the figure, which you might have confused with the self-inductance), and radius (A in the figure, which you might have confused with the area). The voltage of the battery is V, (v in the figure, which you might have confused with a velocity) (a) Find the self-inductance L of the solenoid in terms...
Pease answer questions 4 and 5! Thank you so much! 4. Connect the 2nd resistor in...
Pease answer questions 4 and 5! Thank you so much!
4. Connect the 2nd resistor in parallel with the 1st
resistor and connect that combination to the battery.
Measure
the following:
The
current passing through the R1, I1 = ___0.0058____ A
The
current passing through the R2, I2 = ___0.0031____ A
The
current supplied by the battery, I = ___0.0092____ A
Calculate I1 + I2 = ____________ A
Is the following statement true? I = I1 +...
Help with completing the table please??
MPF102 Table 8-1 Listed Measured Value Value Resistor Drain Source Gate R1 10 kQ 1000 R2 100 2 D R. wWr 10 k2 Уро MPF102 H= VIR With Vps at 1.0 V, measure the voltage across R2 (VR2). Compute the drain current, ID, by applying Ohm's law to R2. Note that the current in R2 is the same as Ip for the transistor. Use the measured voltage, VR2, and the measured resistance, R2, to...
3.4 Preliminary Assignment 1) The following table contains current/voltage pairs of points as determined from an experiment to verify Ohm's Law. A) Use graph paper and plot these points as voltage vs. current B) Does this device follow Ohm's Law? How do you know? C) Determine the value of the resistor used in this circuit. Current (Amps) -0.227 -0.180 -0.070 -0.022 +0.054 +0.126 +0.185 +0.258 Voltage (Volts) -2.320 -1.847 -0.721 -0.203 +0.586 +1.329 +1.937 +2.680 resistor. The 2) A (20.10.2),...
How do I calculate the
“calculated current flowing through each resistor using Kirchhoffs
junction rule and the measured values”? Please show your work.
Thank you!
Old Dominion University Physics 112 & 232 Lab 2. Use the EXTECH Digital M measure the individual resi "orange, black, brown" band Turn on the DMM and turn 2000 Ω position. 2 V 1.5 V Using wire leads with ab and alligator clip on opp banana plug end of a red wi 2) jack, and...
Need help with conclusion questions please
1. The objectives of this lab are (1) to determine the actual (A) total resistance of three resistors connected in series and compare it with the experimental (E ) value of total resistance (2) to determine the actual (A) total resistance of three resistors connected in parallel and compare it with the experimental(E ) value of total resistance II. Apparatus(Equipment): Voltage source, ammeter that measures current , voltmeter that measures voltage. II. Procedure: Three...
In this Lab you would connect resistors in various combinations then use the multi- meter to measure various currents and voltages. I have copied the schematics of the various circuits from the lab and completed portions of the data table with hypothetical (but highly probable) answers. Your task is to complete the data tables and answer the following questions. The value of a resistor can be determined by reading the colored stripes on the resistor. The color codes are given...
1. adapted from Prob. 5, p. 298-299, Brown's Introductory Physics II) Consider the second diagram on p. 298. The solenoid has N turns, length / (L in the figure, which you might have confused with the self-inductance), and radius (A in the figure, which you might have confused with the area). The voltage of the battery is V, (v in the figure, which you might have confused with a velocity) (a) Find the self-inductance L of the solenoid in terms...
Pease answer questions 4 and 5! Thank you so much!
4. Connect the 2nd resistor in parallel with the 1st
resistor and connect that combination to the battery.
Measure
the following:
The
current passing through the R1, I1 = ___0.0058____ A
The
current passing through the R2, I2 = ___0.0031____ A
The
current supplied by the battery, I = ___0.0092____ A
Calculate I1 + I2 = ____________ A
Is the following statement true? I = I1 +...
